2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Removal
- Clean transmission exterior.

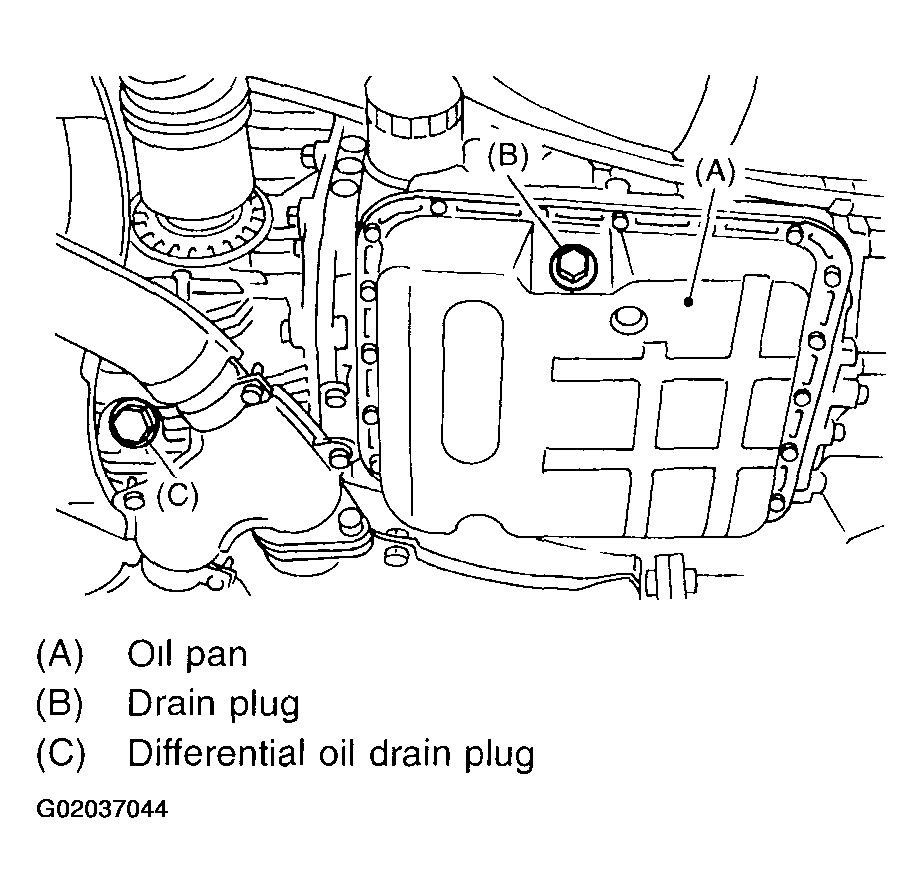

- Drain ATF completely.NOTE: Tighten ATF drain plug after draining ATF.
Tightening torque:
- 25 N.m (2.5 kgf-m, 18.1 ft-lb)
- Remove the oil pan.NOTE:
- Remove and clean the magnet.
- Remove the old gasket on the oil pan and transmission case completely.

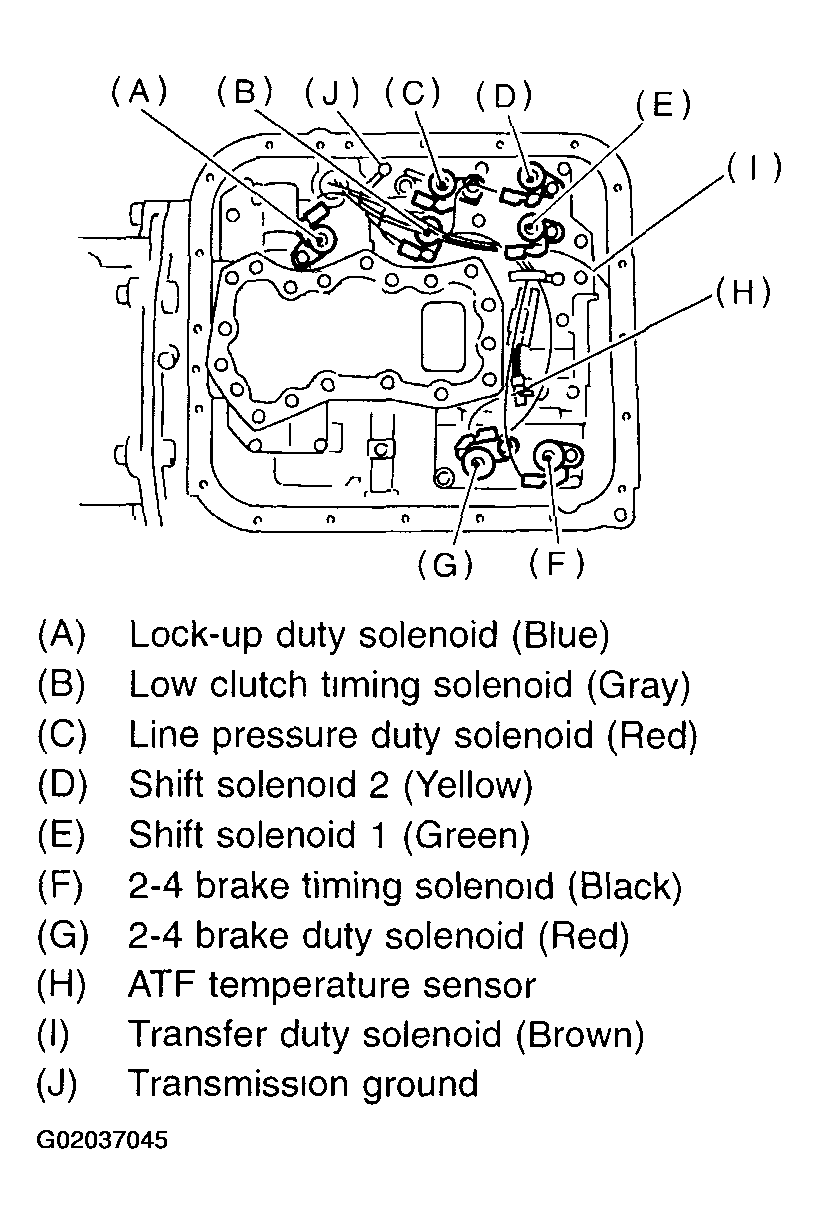

- Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors at 9 places.
- Remove the control valve.CAUTION: When removing control valve body, be careful not to interfere with transfer duty solenoid wiring.
