Control Valve Body: Installation
- Set the select lever in "N" position.

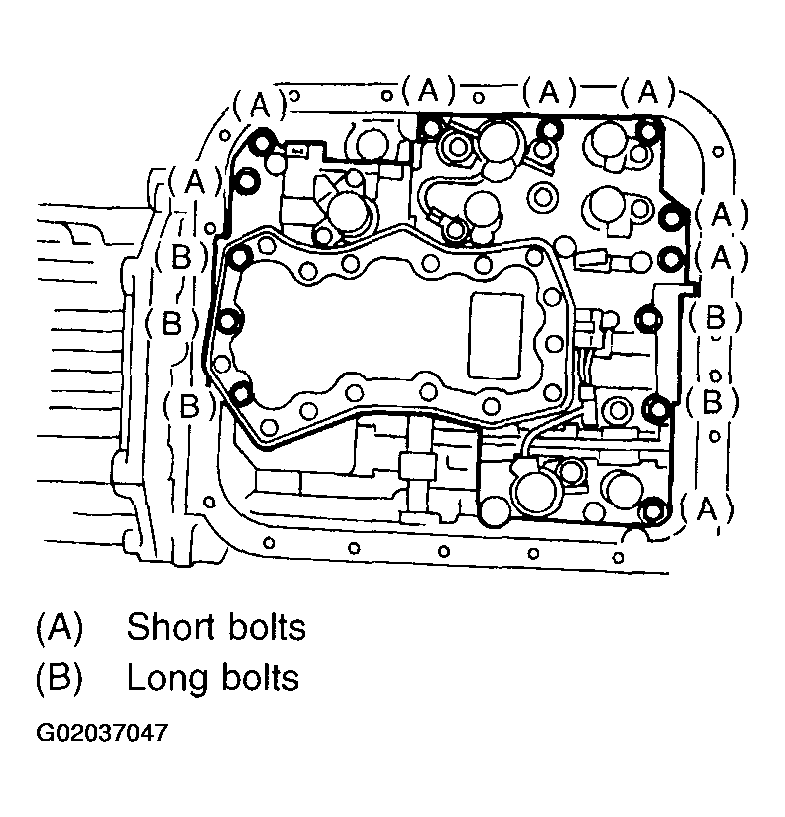

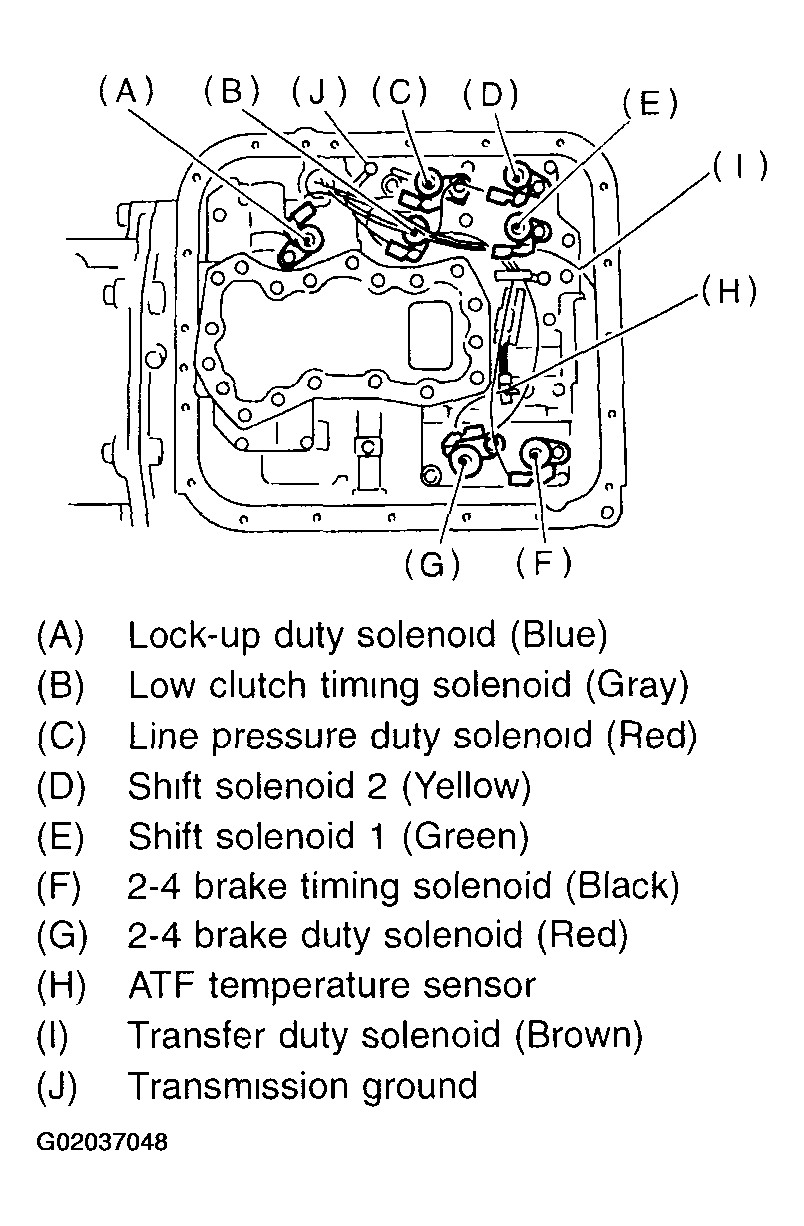

- Install the control valve and ground earth connectors.
Tightening torque:
- 8 N.m (0.8 kgf-m, 5.8 ft-lb)
- Connect all connector.
- Attach the magnet at the specified position.

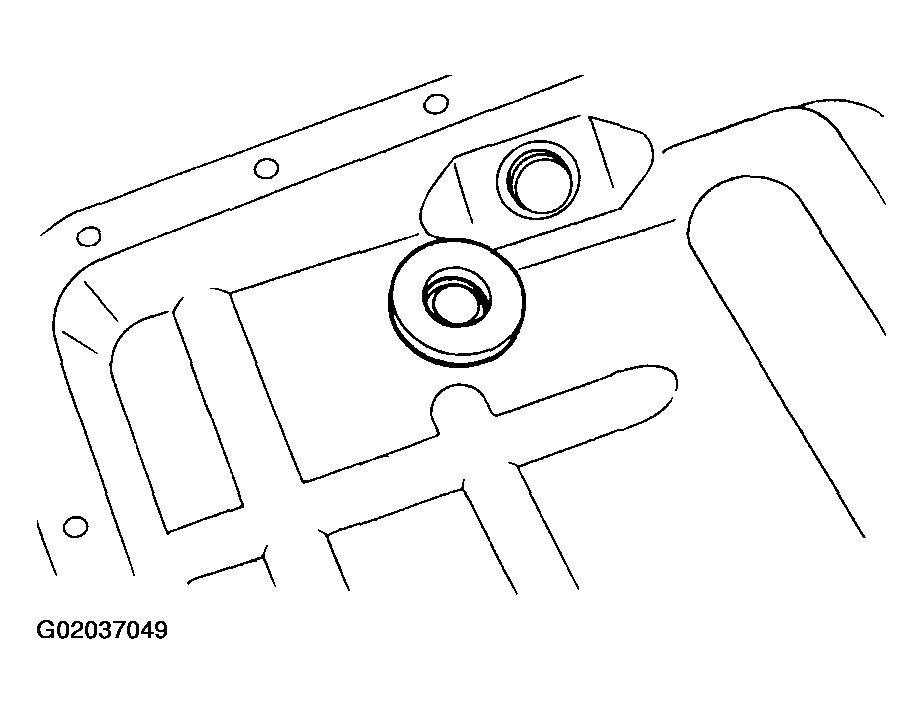

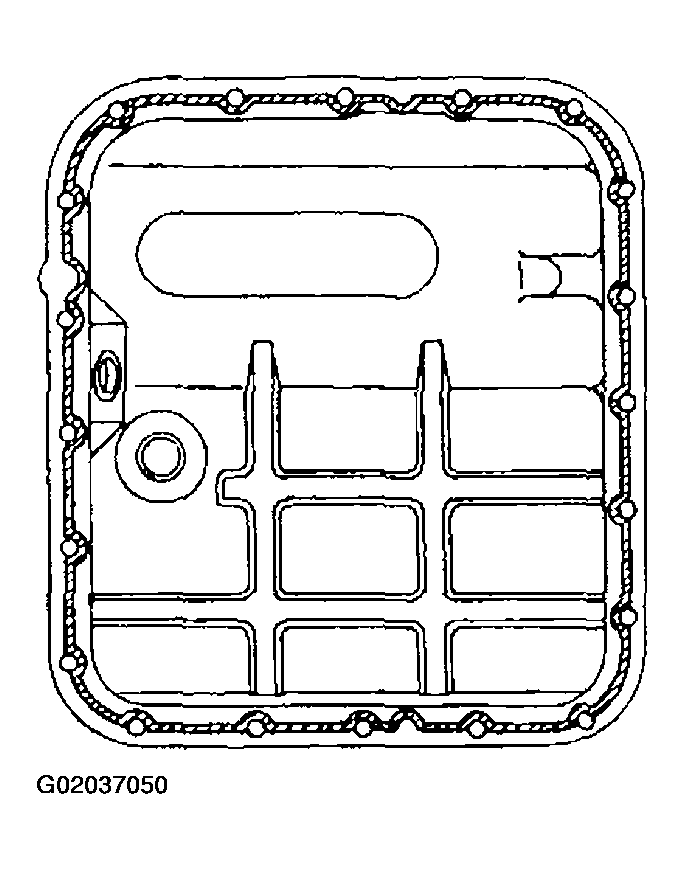

- Apply proper amount of liquid gasket to the entire oil pan mating surface.
Fluid packing:
Tree Bond 1217B
- Install the oil pan.
Tightening torque:
- 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
- Pour ATF into the oil charge pipe.
Recommended fluid:
- Dexron IIE or Dexron III type automatic transmission fluid
Fluid capacity: 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 -8.4 Imp qt)
- Check the level of the ATF.
