2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Assembly: Removal

  1. Open front hood fully, and support with stay.
  2. Disconnect battery ground terminal.
  3. Remove air intake duct and cleaner case.
  4. Remove air cleaner case stay.

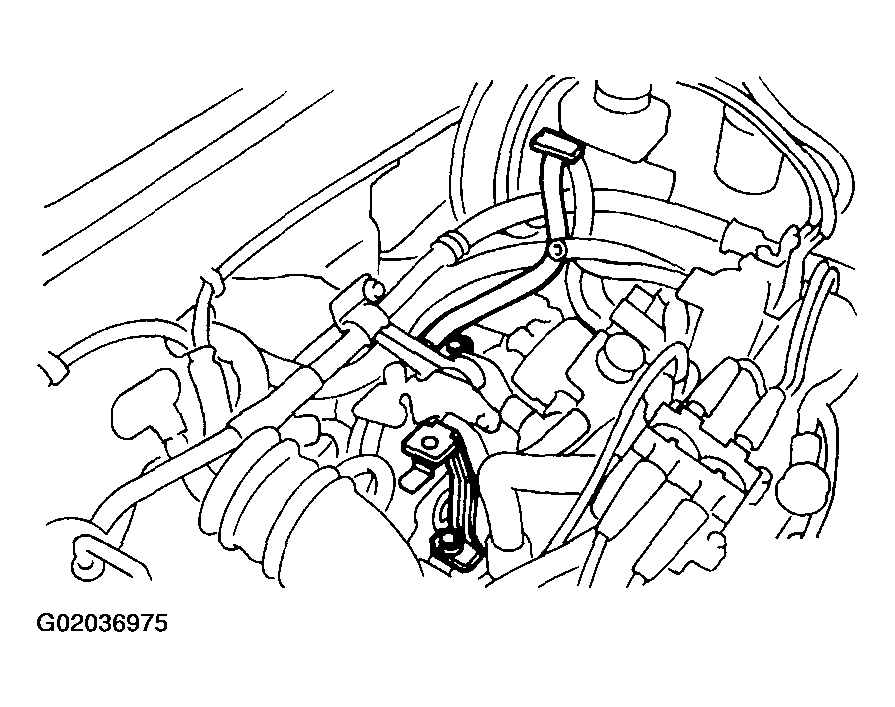

    Fig 1: Removing Air Cleaner Case Stay
    G02036975
  5. Disconnect the following connectors.
    1. Oxygen sensor connector

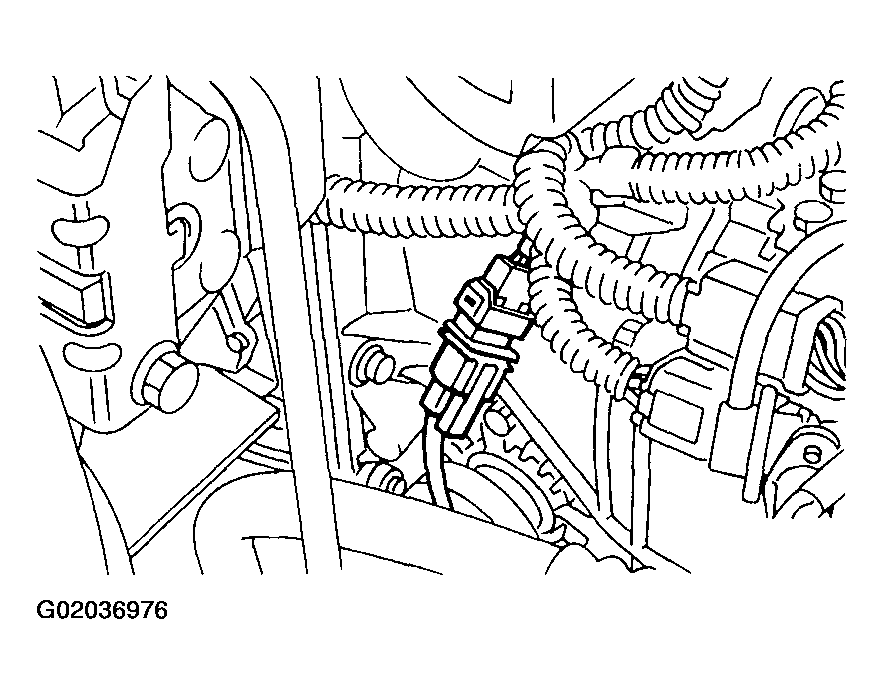

      Fig 2: Disconnecting Oxygen Sensor Connector
      G02036976
    2. Transmission harness connector

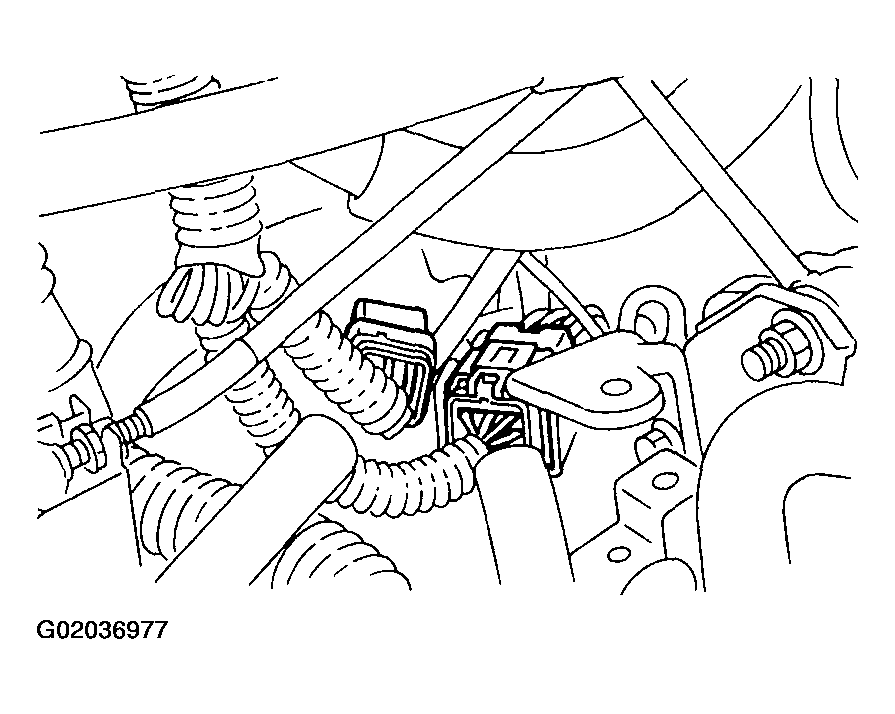

      Fig 3: Disconnecting Transmission Harness Connector
      G02036977
    3. Transmission ground terminal
  6. Remove starter.
  7. Remove pitching stopper.

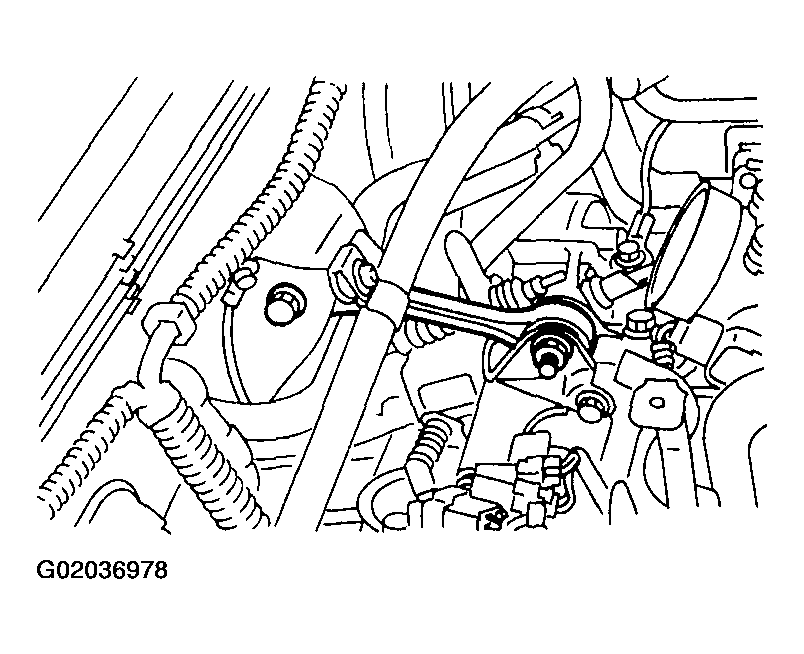

    Fig 4: Removing Pitching Stopper
    G02036978
  8. Separate torque converter clutch from drive plate.
    1. Remove service hole plug.
    2. Remove bolts which hold torque converter clutch to drive plate.
    3. While rotating the engine, remove other bolts using ST.
    CAUTION: Be careful not to drop bolts into torque converter clutch housing.

    ST 499977100 CRANK PULLEY WRENCH

    Fig 5: Identifying ST 499977100 Crank Pulley Wrench
    G02036979
  9. Install ST to torque converter clutch case. See  9.

    ST 498277200 STOPPER SET

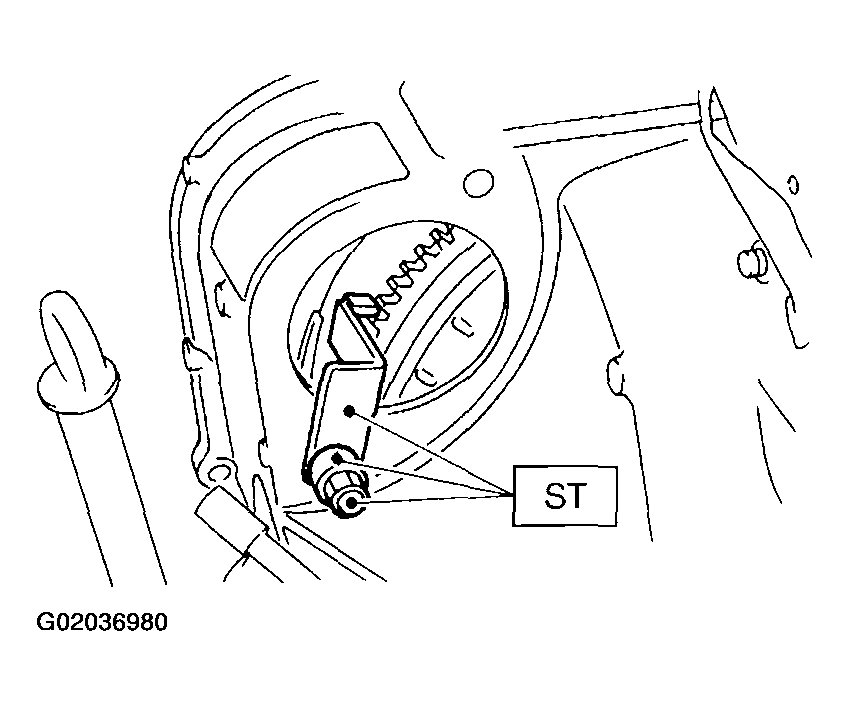

    Fig 6: Installing ST To Torque Converter Clutch Case
    G02036980
  10. Remove ATF level gauge.
    CAUTION: Plug opening to prevent entry of foreign particles into transmission fluid.
