Automatic Transmission Assembly: Installation
- Install rear cushion rubber to transmission assembly.
Tightening torque:
- 38 N.m (3.9 kgf-m, 28 ft-lb)

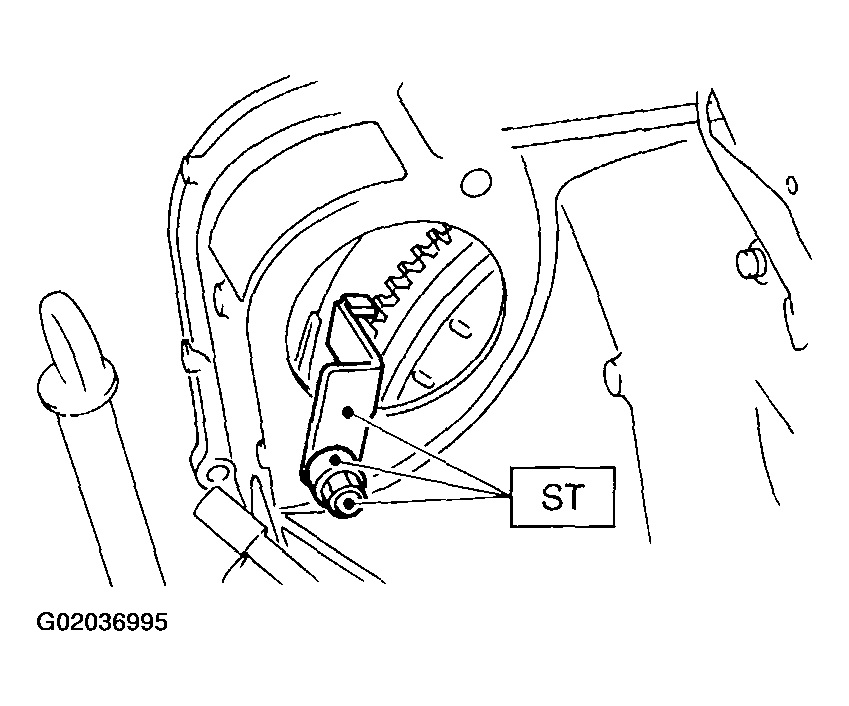

- Install ST to torque converter clutch case.
ST 498277200 STOPPER SET

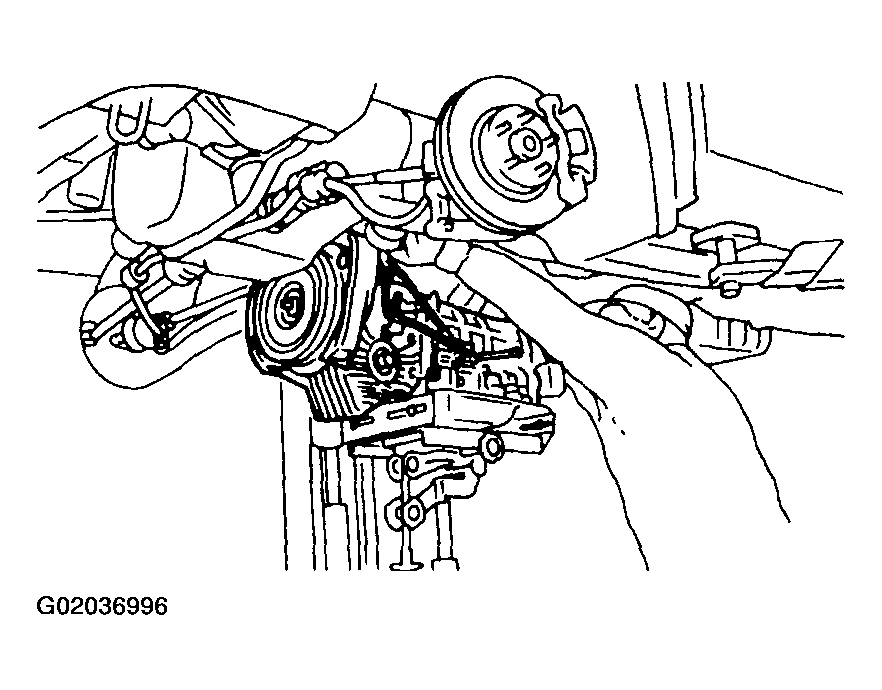

- Install transmission onto engine.
- Gradually raise transmission with transmission jack.
- Engage them at splines.

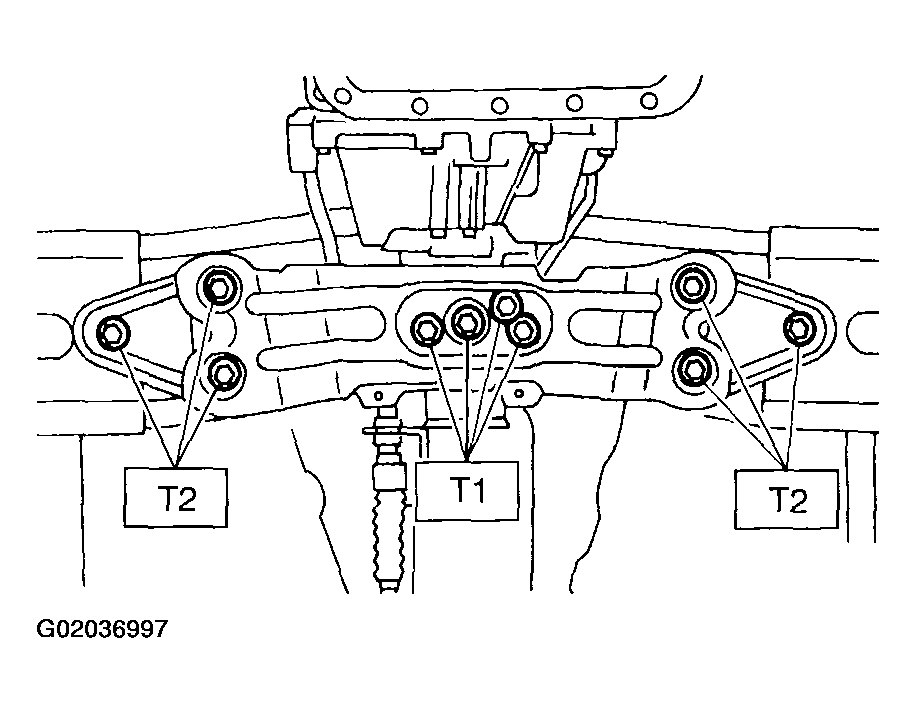

- Install transmission rear crossmember.
Tightening torque:
- T1: 35 N.m (3.6 kgf-m, 26 ft-lb)
- T2: 75 N.m (7.6 kgf-m, 55 ft-lb)
- Take off transmission jack.

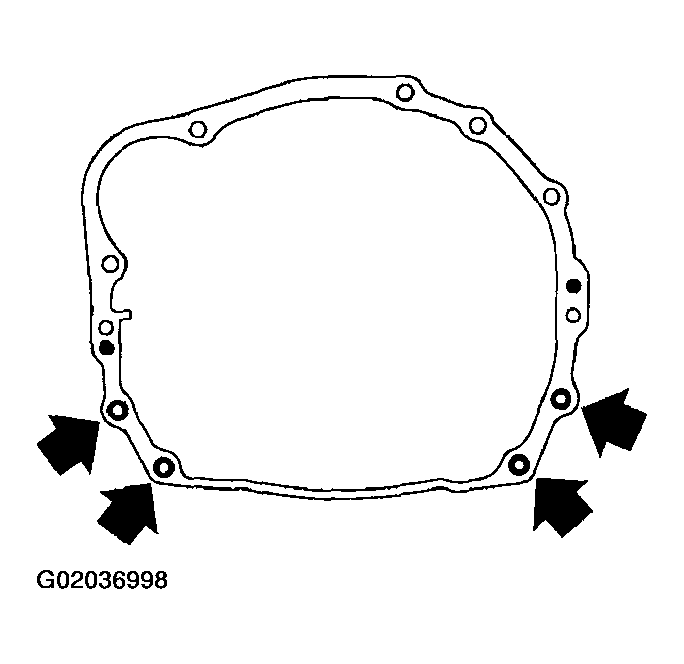

- Tighten nuts which hold lower side of transmission to engine.
Tightening torque:
- 50 N.m (5.1 kgf-m, 36.9 ft-lb)
