2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Code 31: Throttle Position Sensor: Trouble Symptom

Shift point too high or too low; excessive shift shock; excessive tight corner "braking".

2.5 L ENGINE MODEL

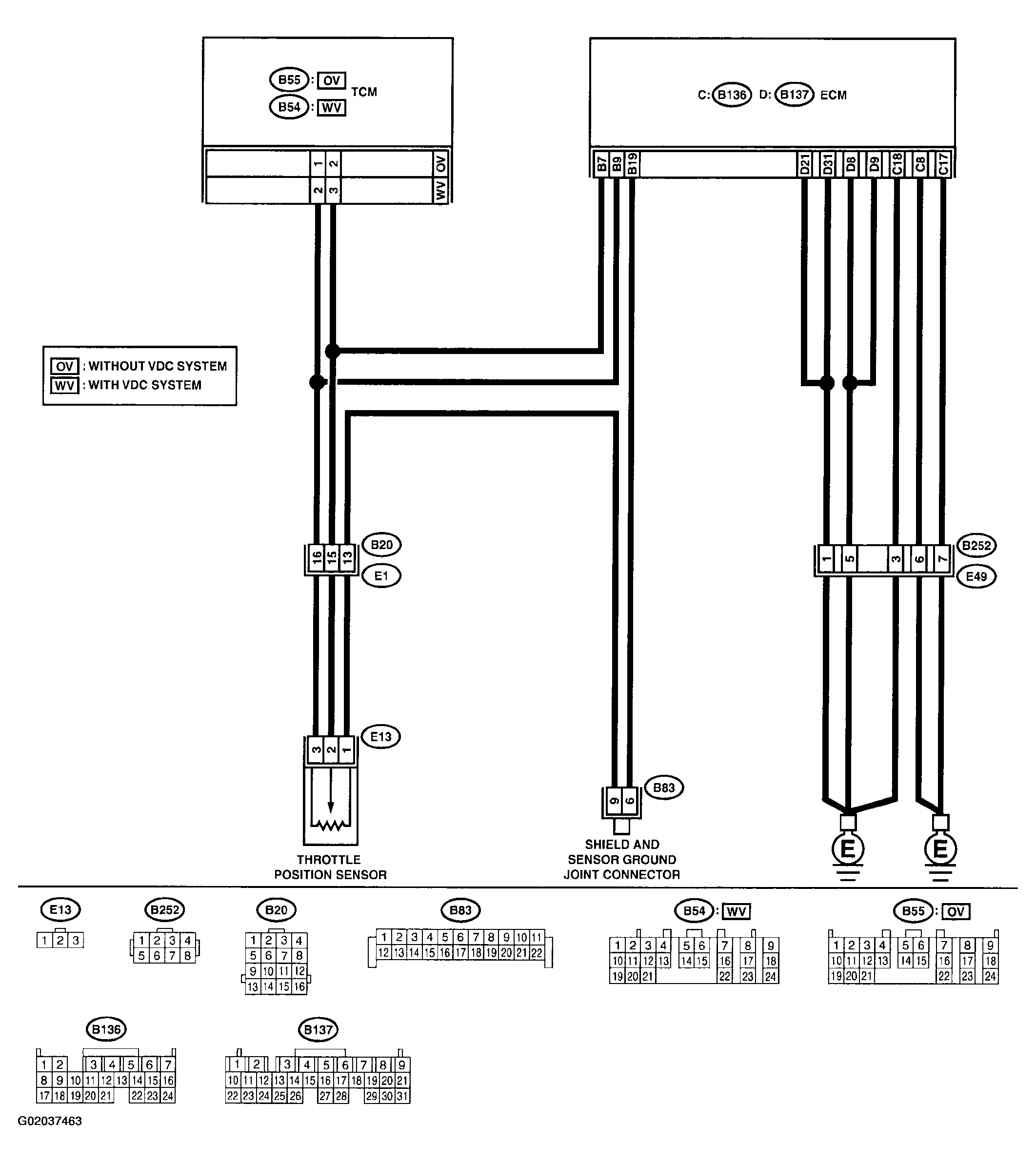

Fig 1: Trouble Code 31 - Throttle Position Sensor Wiring Diagram (2.5 L)
3.0 L ENGINE MODEL

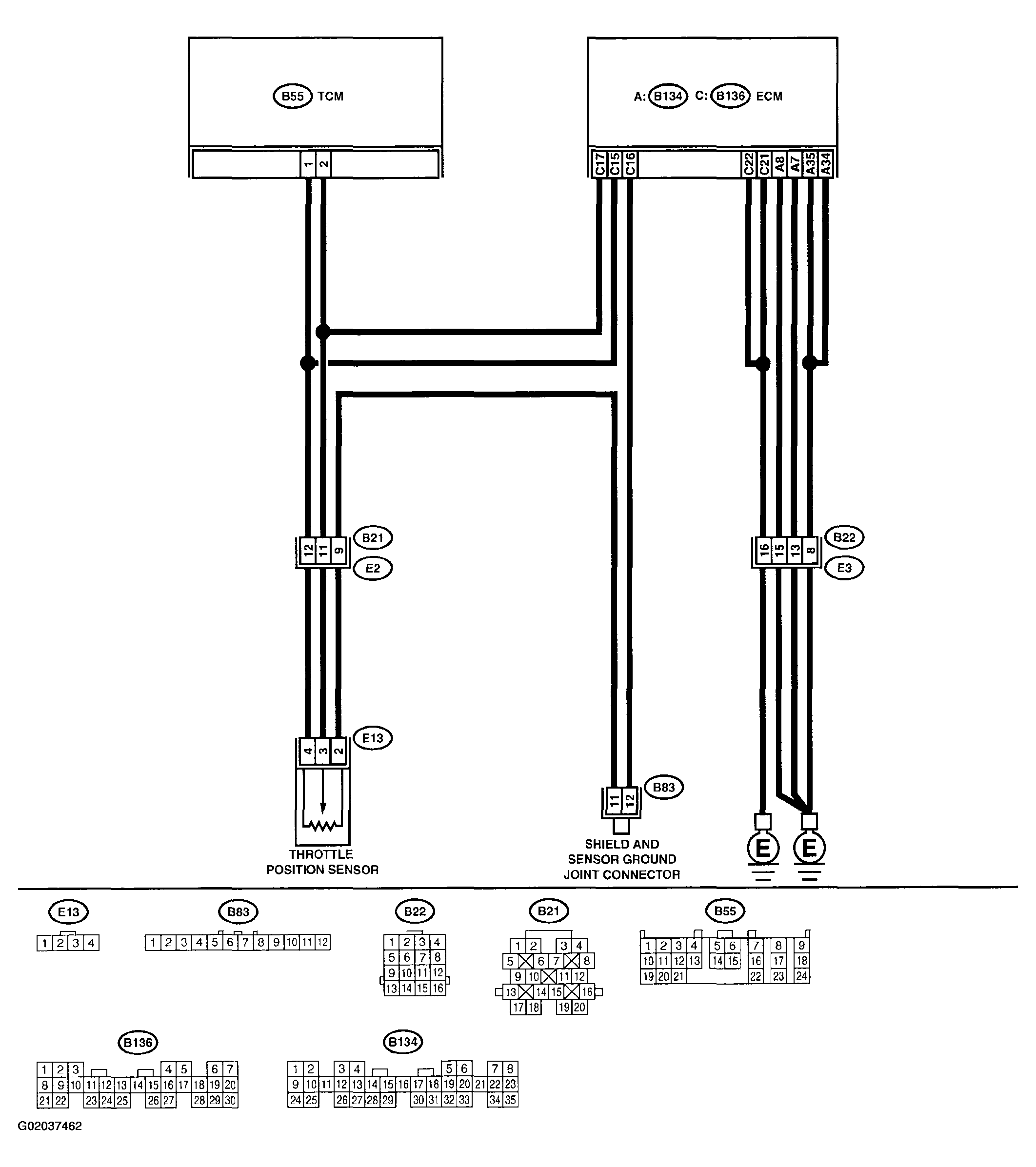

Fig 2: Trouble Code 31 - Throttle Position Sensor Wiring Diagram (3.0 L)
