2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Select Lever: Disassembly

  1. Remove four washers and then detach rubber boot.
  2. Remove bolts and then remove cable bracket and plate.

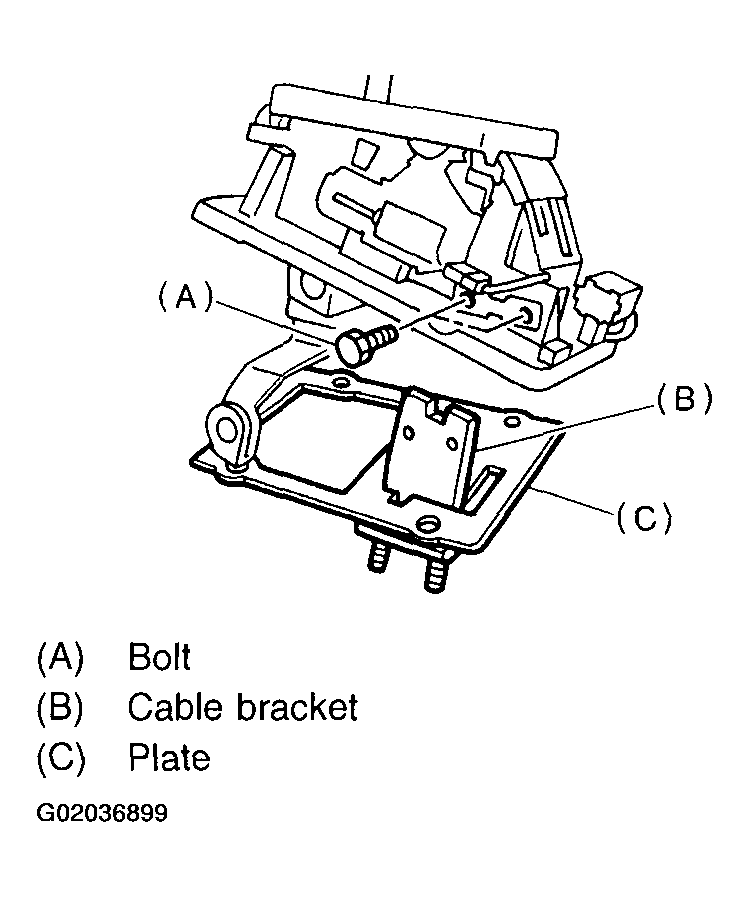

    Fig 1: Removing Cable Bracket And Plate
    G02036899
  3. Twist the select lever grip and then remove select lever grip.
  4. Detach indicator cover.
  5. Disconnect connector and then remove solenoid assembly.

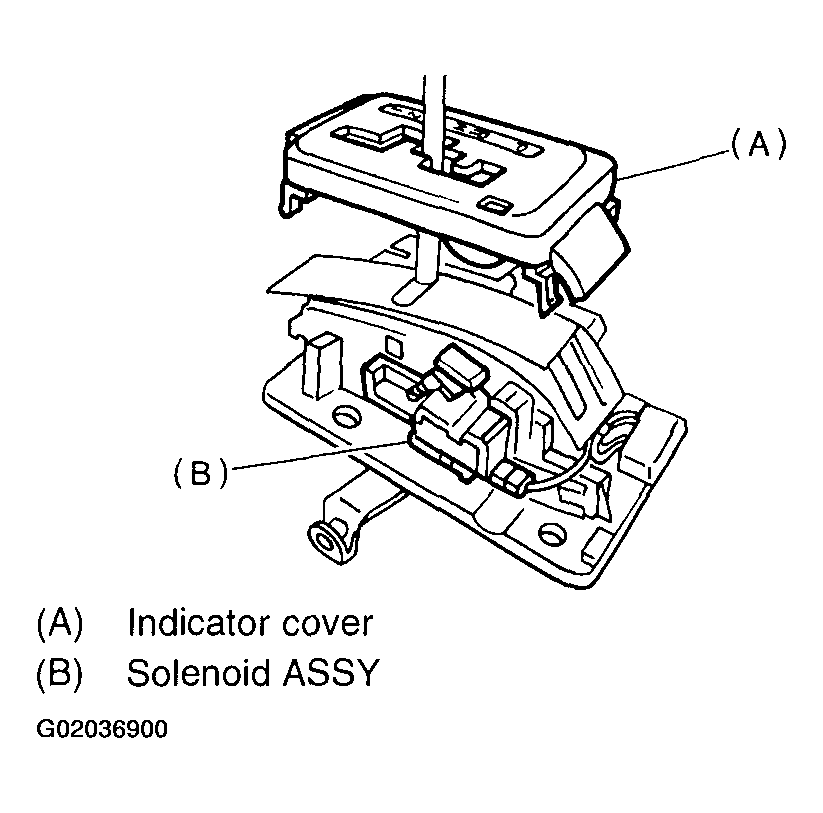

    Fig 2: Removing Solenoid Assembly
    G02036900
  6. Remove pattern plate.
  7. Remove stopper.

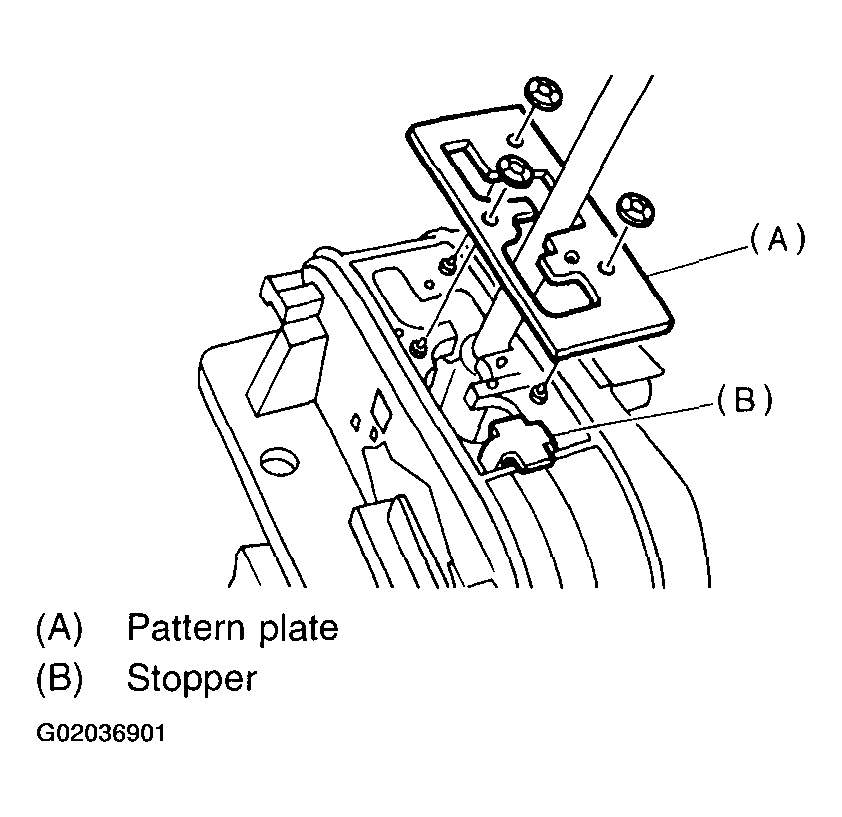

    Fig 3: Removing Pattern Plate & Stopper
    G02036901
  8. Tilt lever forward and pull down to separate it from frame.

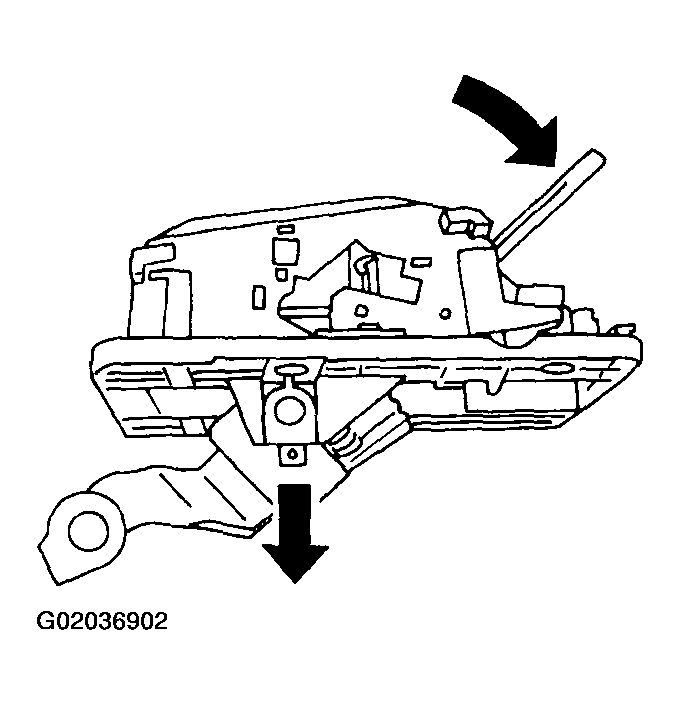

    Fig 4: Separating Lever From Frame
    G02036902
  9. Remove spring.
    CAUTION: Wear goggles. Do not allow spring to fly out during removal.
  10. Remove bolt and then disconnect lever upper and lever lower.

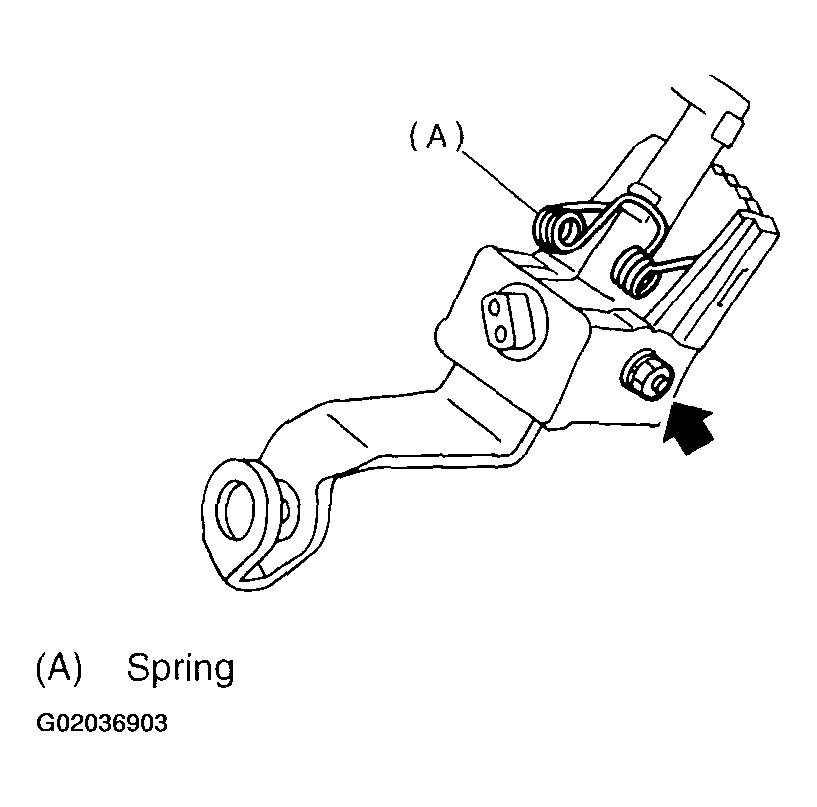

    Fig 5: Disconnecting Upper & Lower Levers
    G02036903
