2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Select Cable: Removal
- Prior to removal, set lever to "N" position.
- Remove under cover.
- Remove rear exhaust pipe and muffler.CAUTION: When removing exhaust pipes, be careful each exhaust pipe does not drop out.

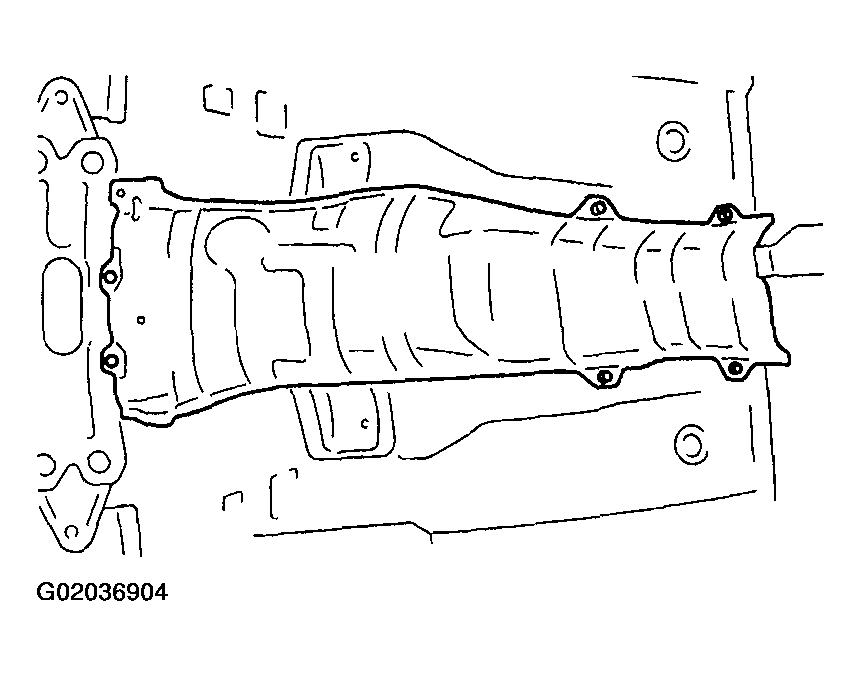

- Remove heat shield cover.

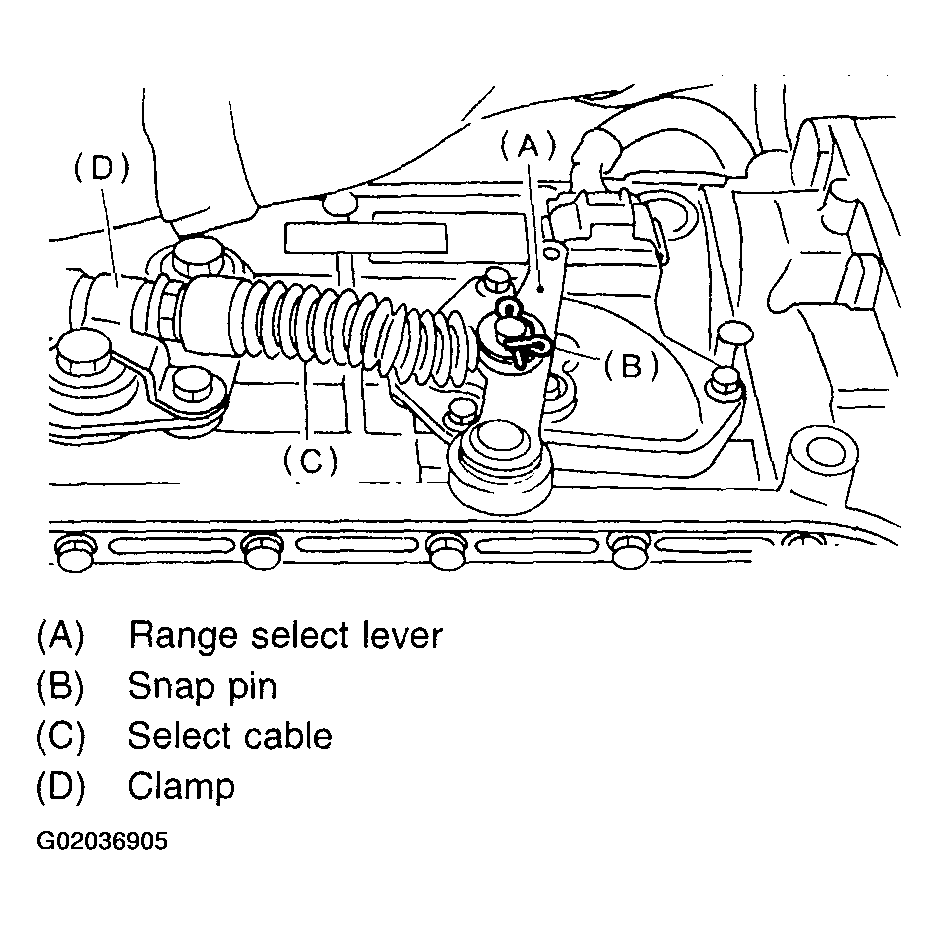

- Remove Snap Pin from range select lever.

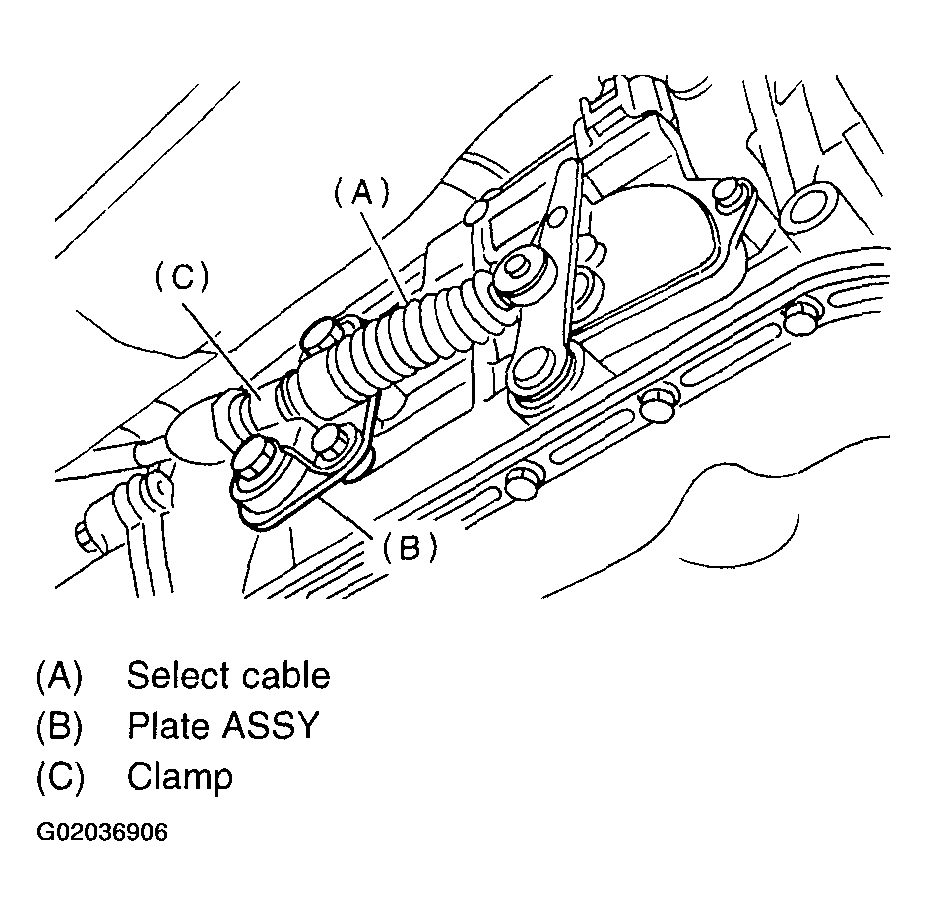

- Remove plate assembly from transmission case.

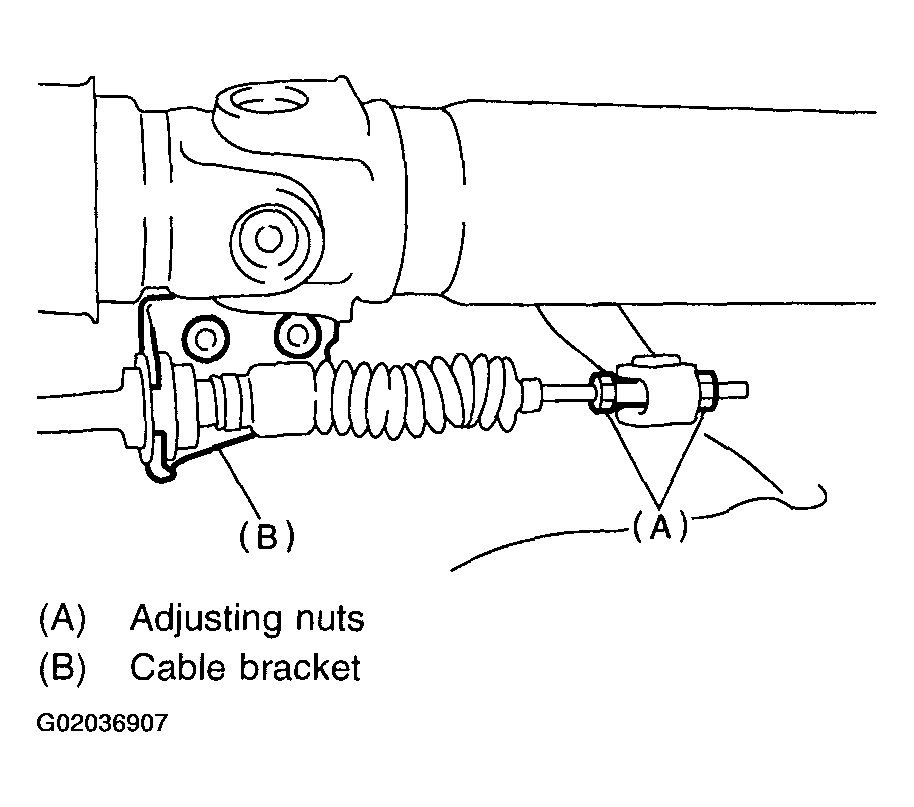

- Disconnect cable from select lever and then remove cable bracket.
- Remove select cable from plate assembly.
