2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

MT Gear Shift Lever: Disassembly

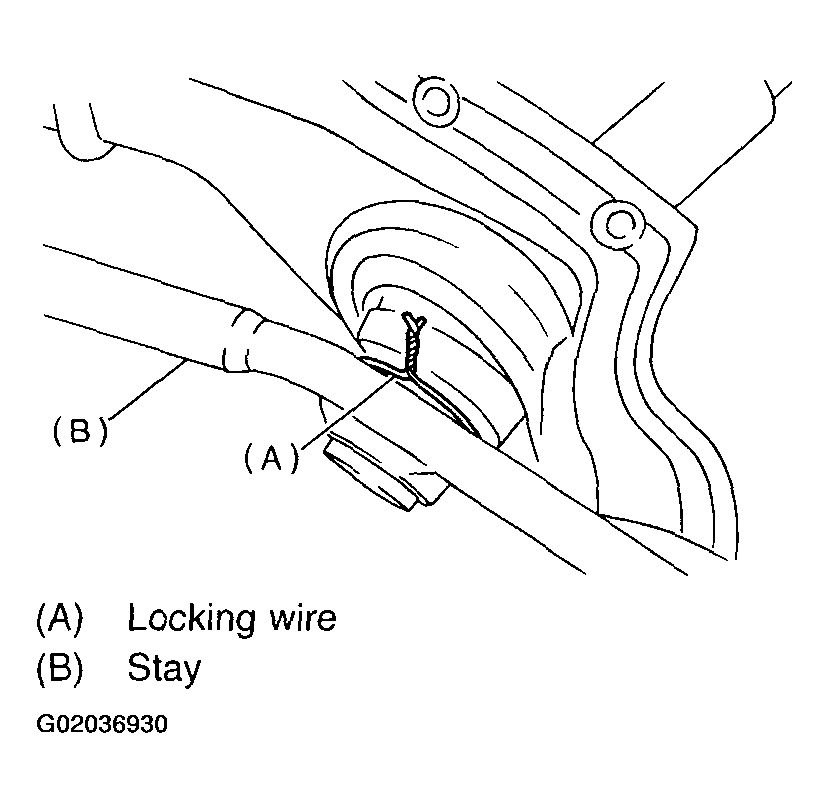

Disassemble locking wire.

Fig 1: Disassembling Locking Wire

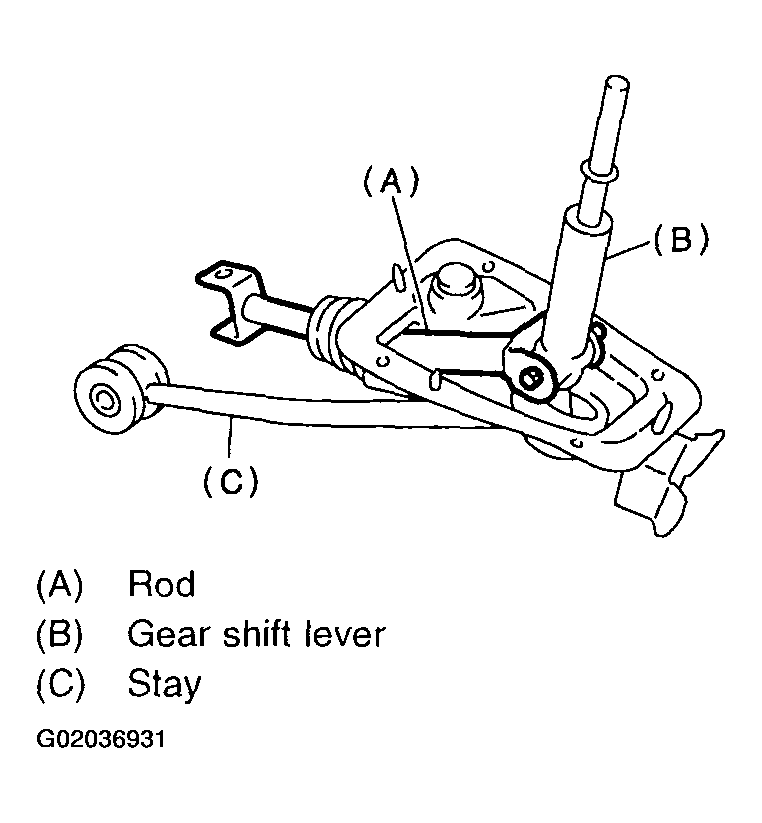

Remove rod from gear shift lever.

Fig 2: Removing Rod From Gear Shift Lever

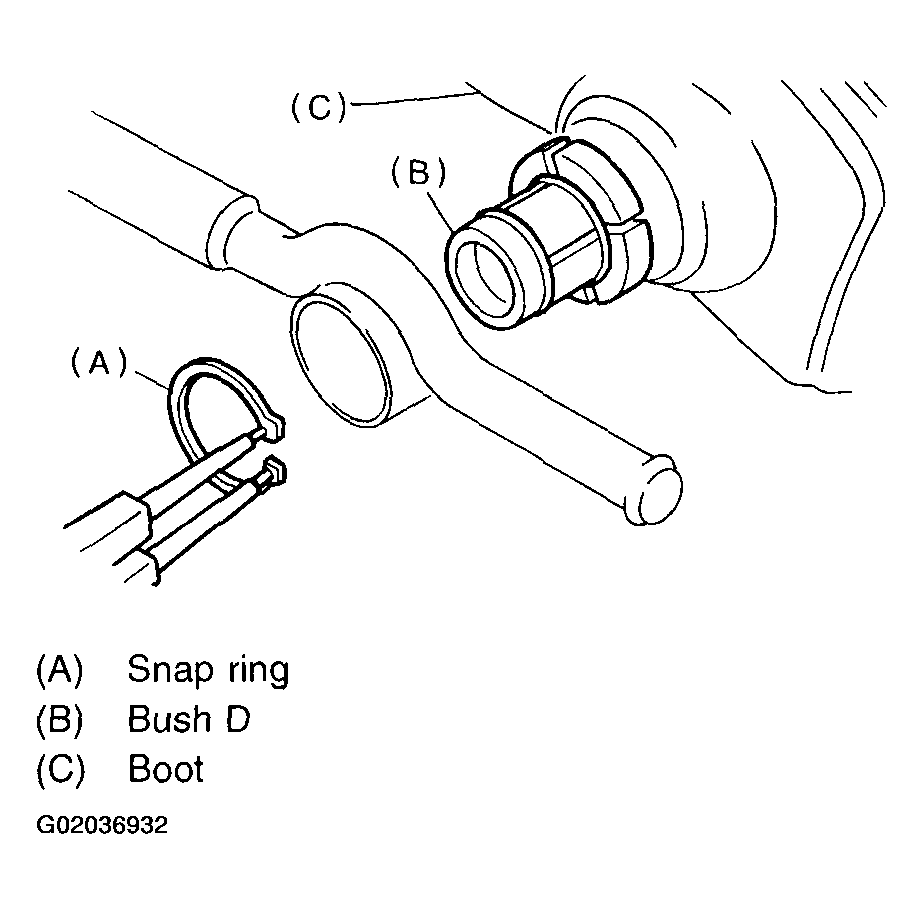

Remove snap ring from bush D, then disconnect stay.

Fig 3: Removing Snap Ring From Bush D & Disconnecting Stay
Remove boot from gear shift lever.

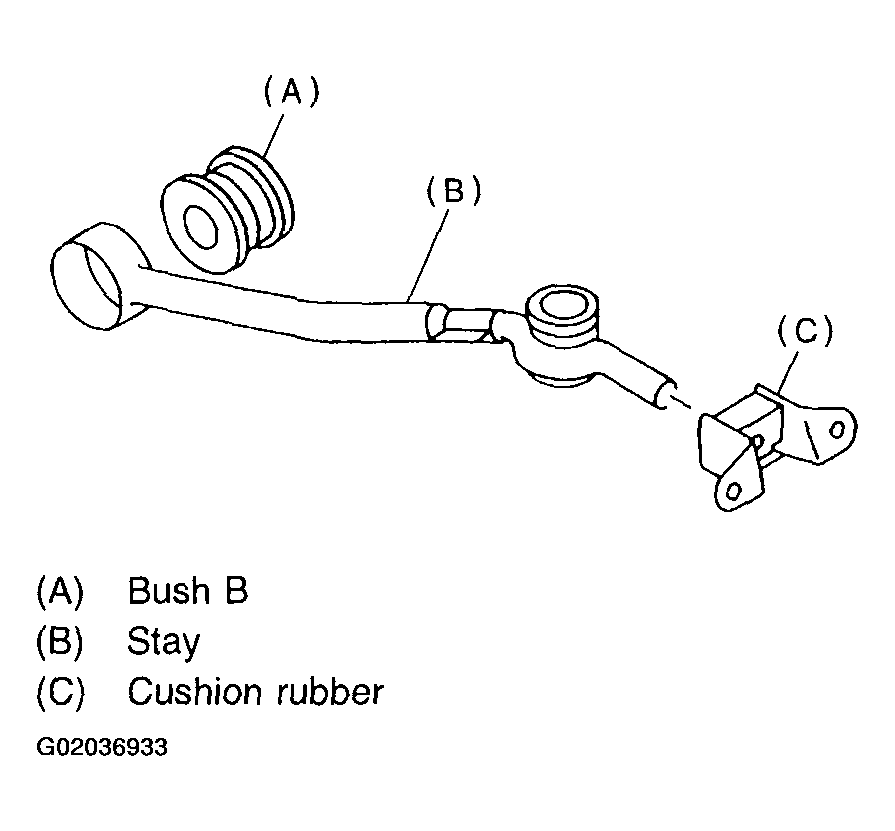

Remove bush and cushion rubber from stay.

Fig 4: Removing Bush & Cushion Rubber From Stay

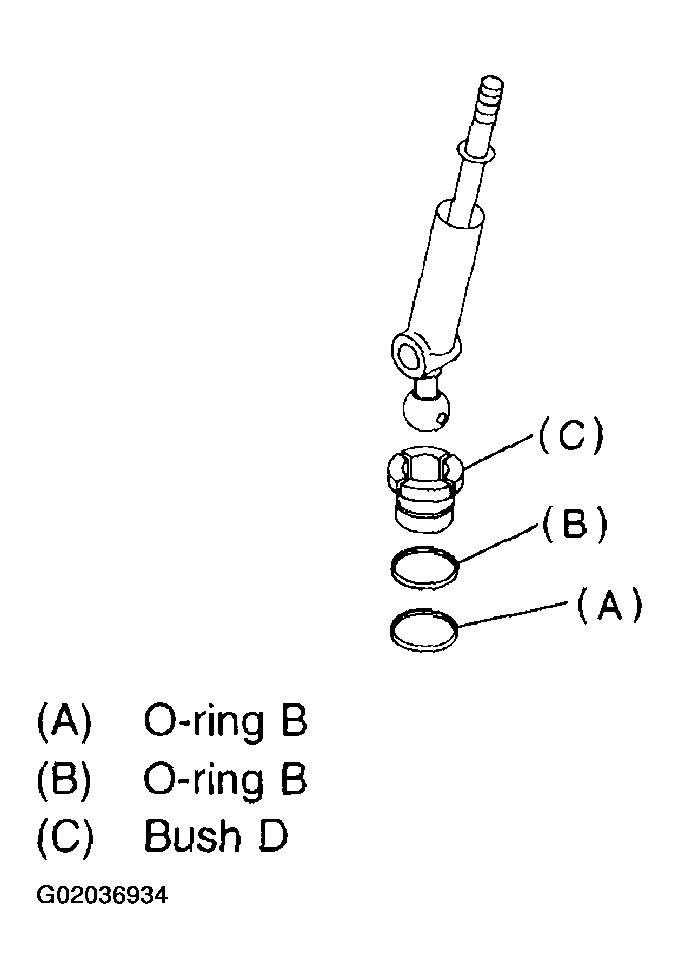

Remove O-ring, then disconnect bush D.

Fig 5: Removing O-Ring & Disconnecting Bush D

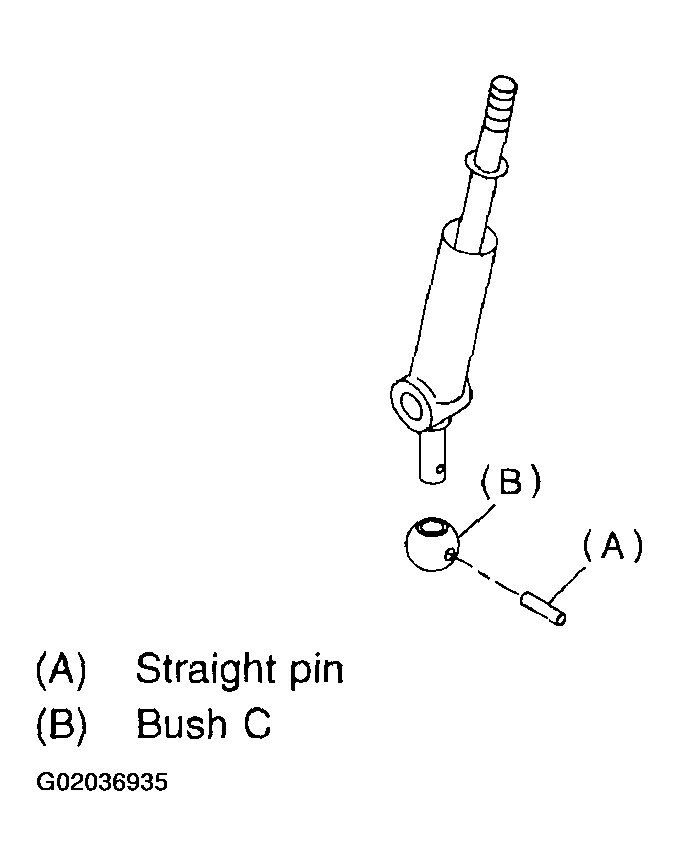

Draw out straight pin, then remove bush C from gear shift lever.

Fig 6: Drawing Out Straight Pin & Removing Bush C From Gear Shift Lever
