2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
MT Gear Shift Lever: Assembly
- Clean all parts before assembly.

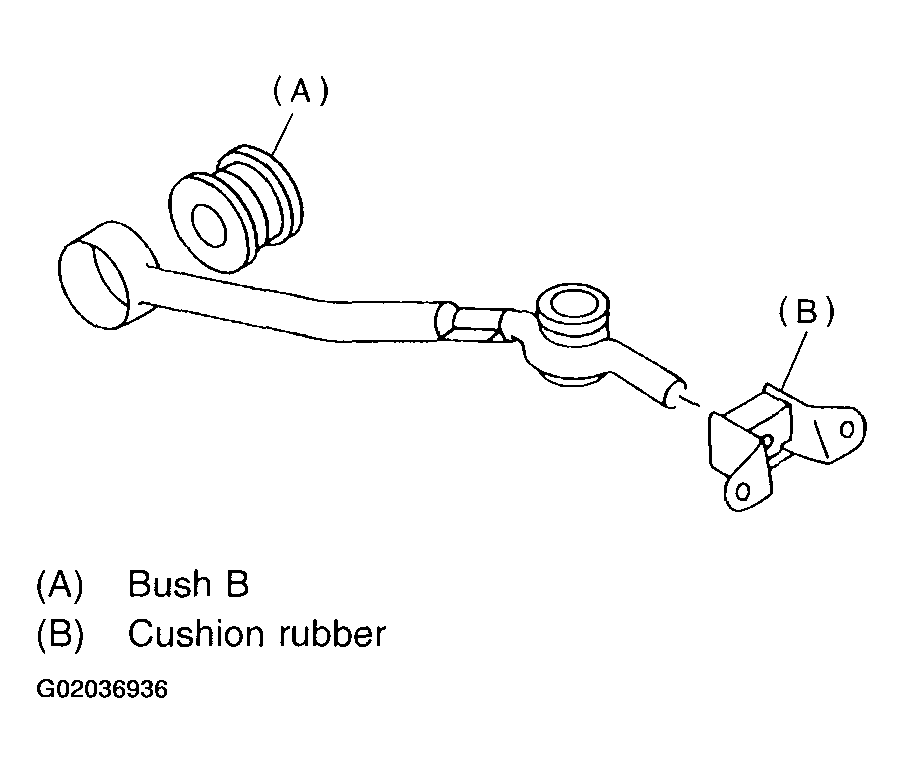

- Mount the bush B and cushion rubber on the stay.
- Mount each part; boot, O-ring, bush A, spacer, bush B, bush D and straight pin on the gear shift lever.CAUTION:
- Always use new O-rings.
- Apply grease [DNIGTIGHT LYW No. 2 or equivalent] to the inner and side surfaces of the bush when installing the spacer.
