2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Strut Assembly: Disassembly

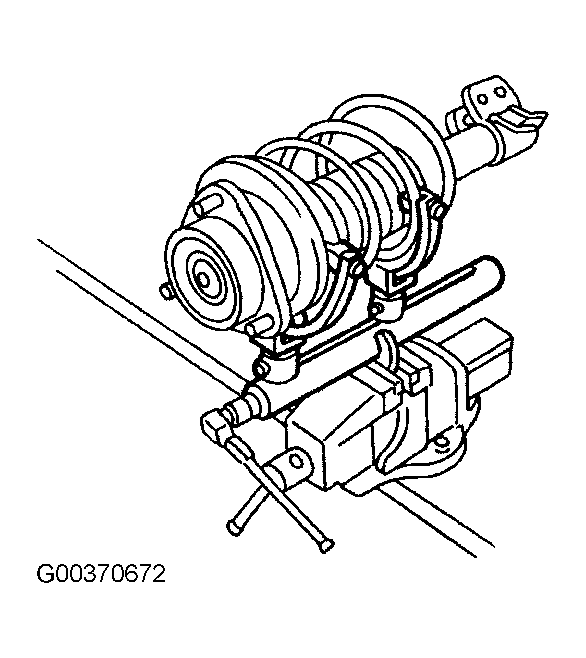

- Using a coil spring compressor, compress the coil spring. See Fig 1.
- Using the strut mount socket, remove the self-locking nut. See Fig 2.
- Remove the strut mount, upper spring seat and rubber seat from strut.
- Gradually decreasing the compression force of compressor, and then remove the coil spring.
- Remove the dust cover and helper spring.
