2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

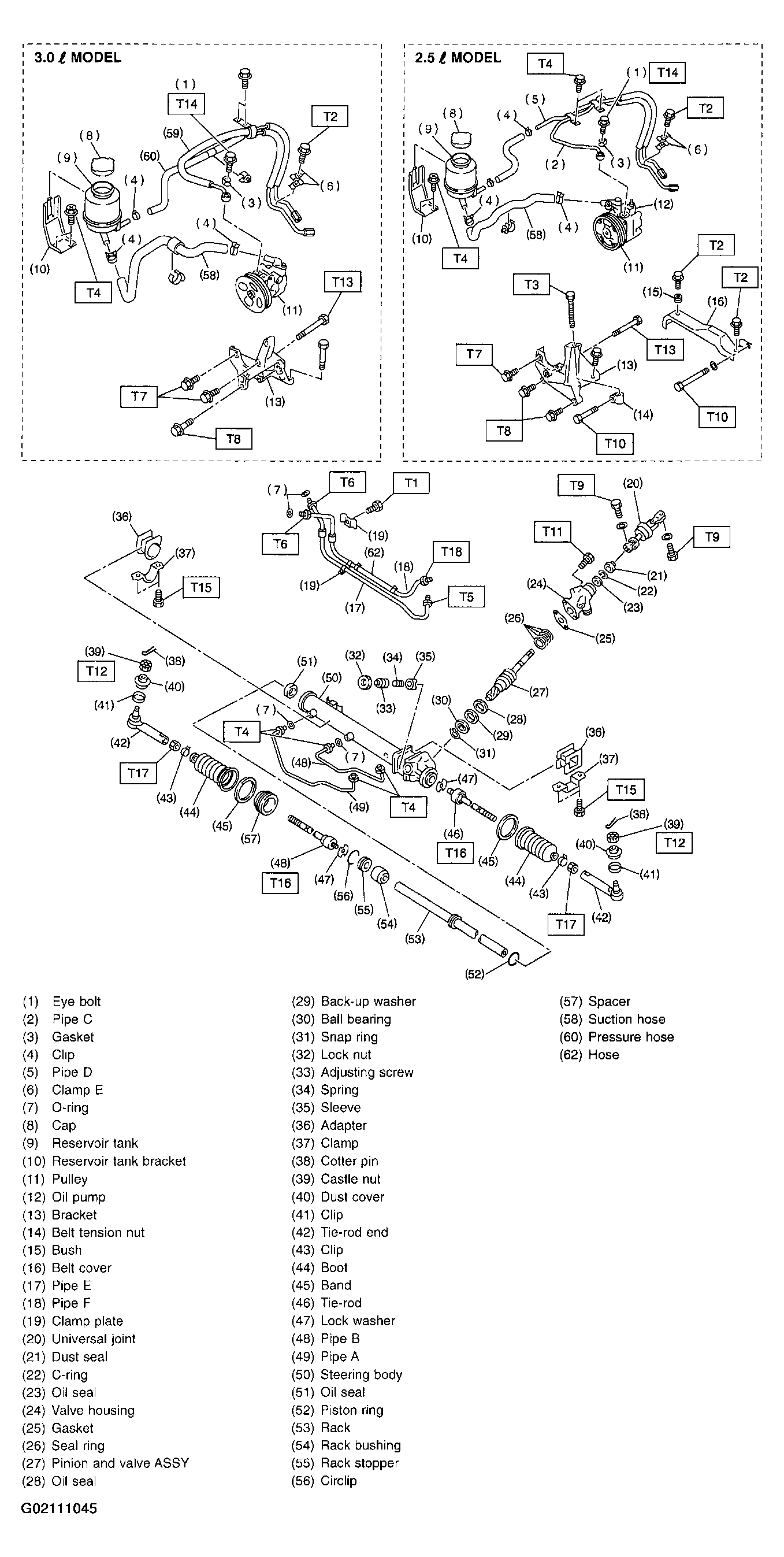

Power Assisted System
Tightening torque: N.m (kgf-m, ft-lb)
- T1: 6 (0.6, 4.3)
- T2: 7.4 (0.75, 5.4)
- T3: 8 (0.8, 5.8)
- T4: 13 (1.3, 9.4)
- T5: 15 (1.5, 10.8)
- T6: 15 (1.5, 10.8)
- T7: 15.7 (1.6, 11.6)
- T8: 22 (2.2, 15.9)
- T9: 24 (2.4, 17.4)
- T10: 25 (2.5, 18.1)
- T11: 25 (2.5, 18.1)
- T12: 27 (2.75, 19.9)
- T13: 37.3 (3.8, 27.5)
- T14: 39 (4.0, 28.9)
- T15: 59 (6.0, 43)
- T16: 78 (8.0, 58)
- T17: 83 (8.5, 61.5)
- T18: 25 (2.5, 18.1)
