2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Intake System

WARNING: This page is about a different variant/trim than selected.

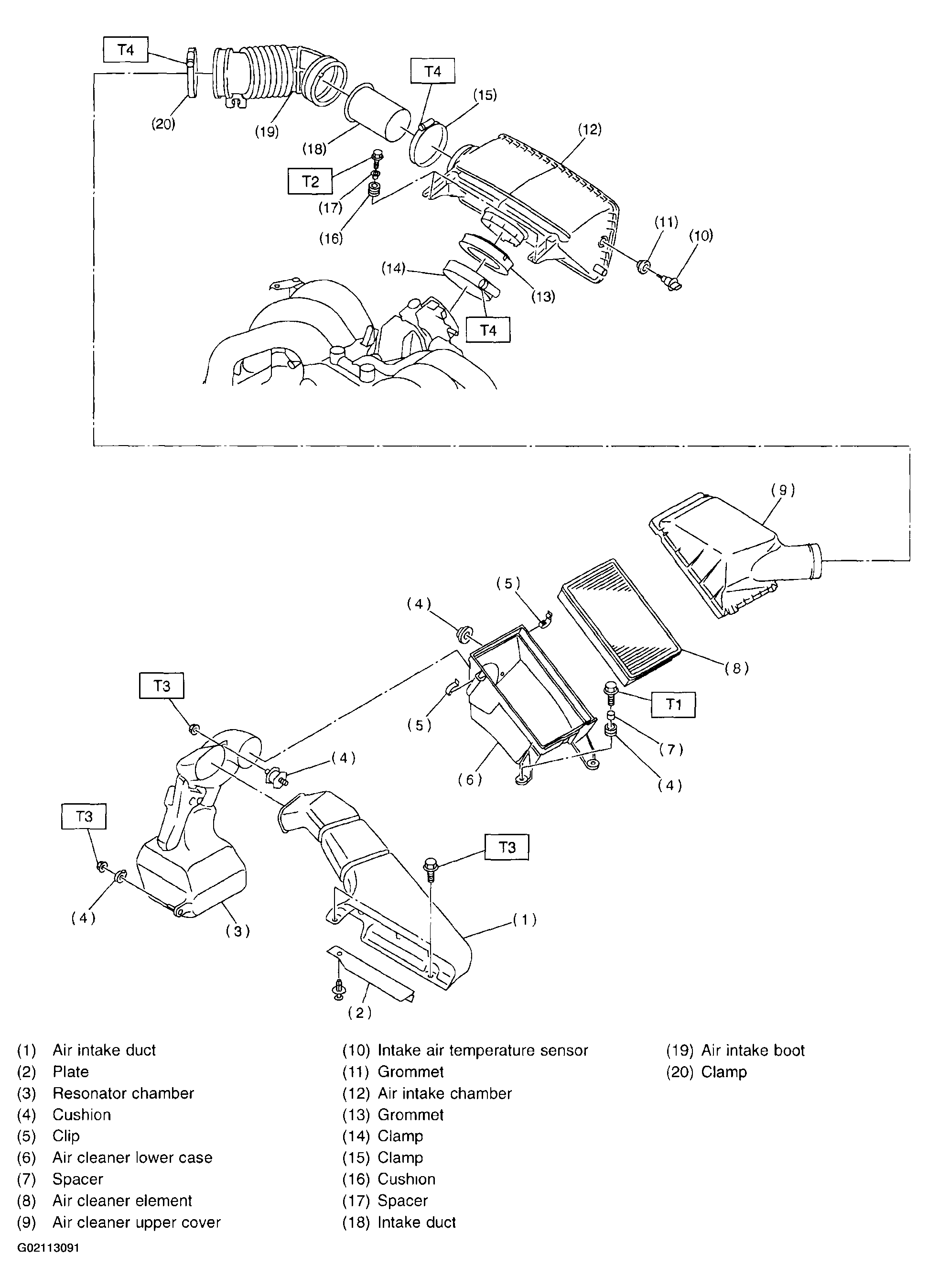

Fig 1: Exploded View Of Intake System
G02113091

Tightening torque:Β  N.m (kgf-m, ft-lb)

T1:Β  32.3 (3.3, 23.9)

T2:Β  6.4 (0.65 4.7)

T3:Β  7.5 (0.76, 5.5)

T4:Β  3 (0.3, 2.2)
