2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel Line

WARNING: This page is about a different variant/trim than selected.

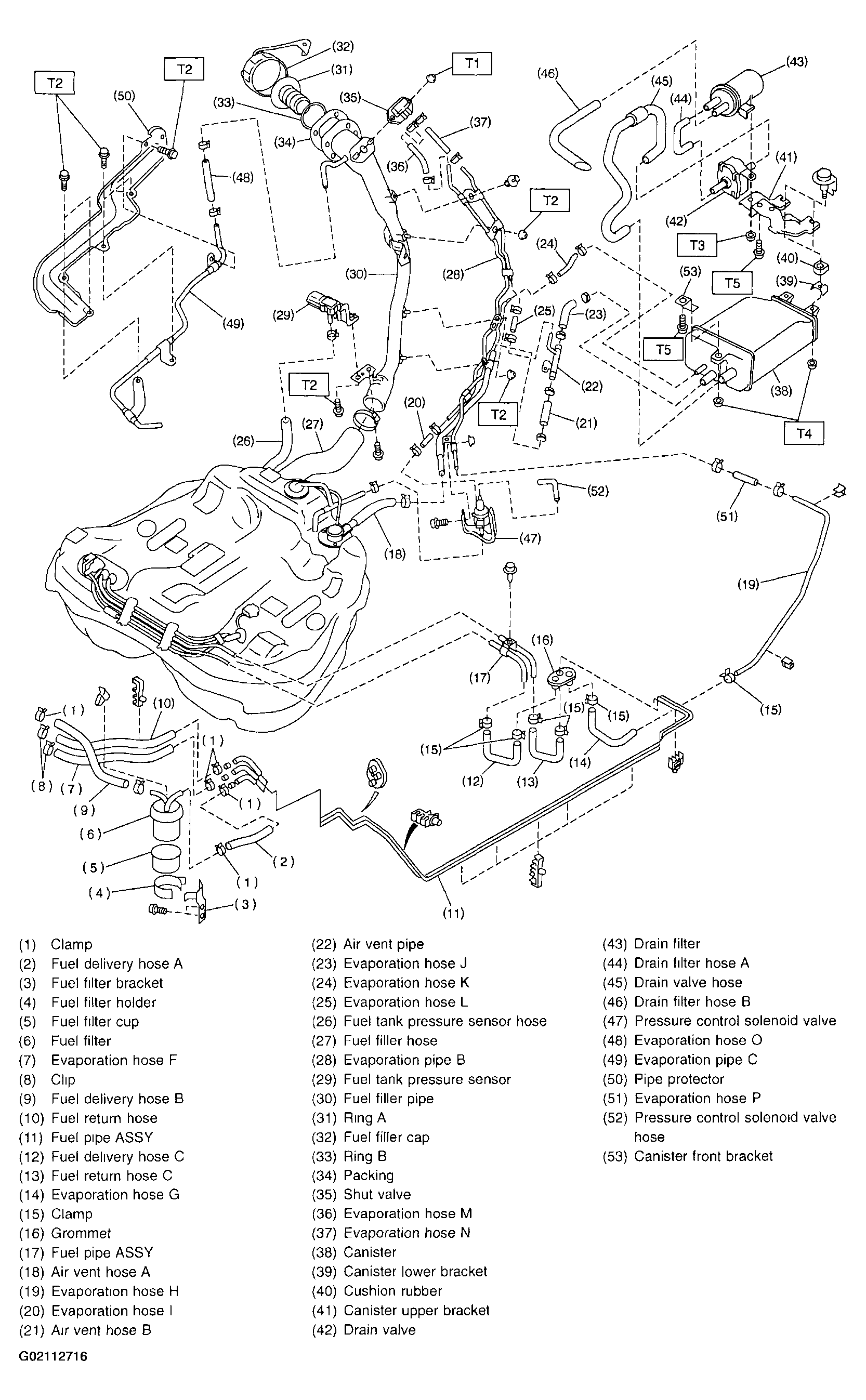

Fig 1: Exploded View Of Fuel Lines & Components

Tightening torque: N-m (kgf-m, ft-lb)

T1: 4.5 (0. 46, 3.3)
T2: 7.5 (0.76, 5.5)
T3: 18 (1.8, 13.0)
T4: 23 (2.3, 16.6)
T5: 33 (3.4, 25)
