2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Operating Cylinder: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder.

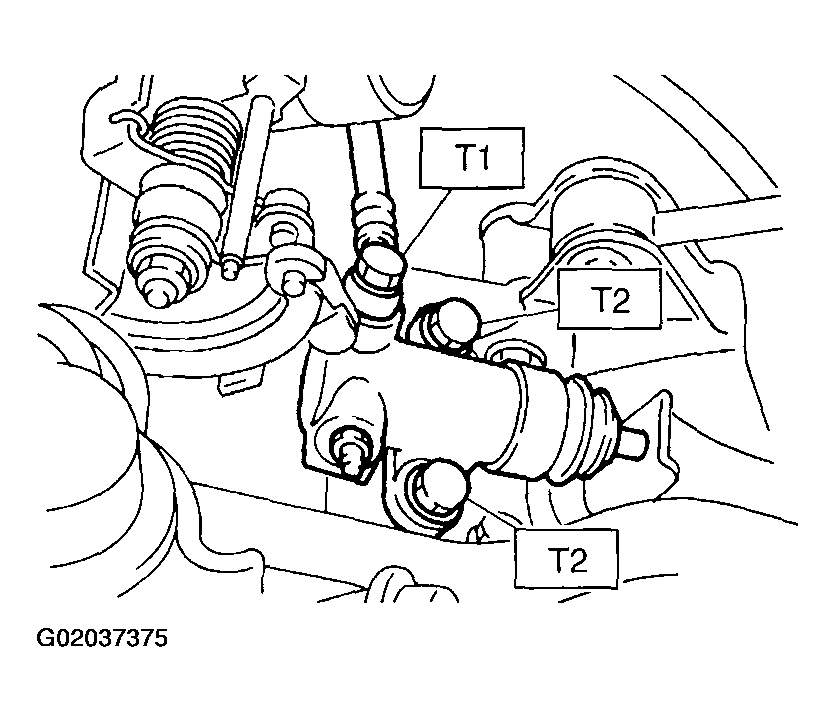

Tightening torque:
- T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
- After bleeding air from operating cylinder, ensure that clutch operates properly.
