2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

How To Read Trouble Code At Indicator Light

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The AT OIL TEMP indicator light flashes the code corresponding to the faulty part.

The long segment (1.2 sec on) indicates a "ten", and the short segment (0.2 sec on) signifies a "one".

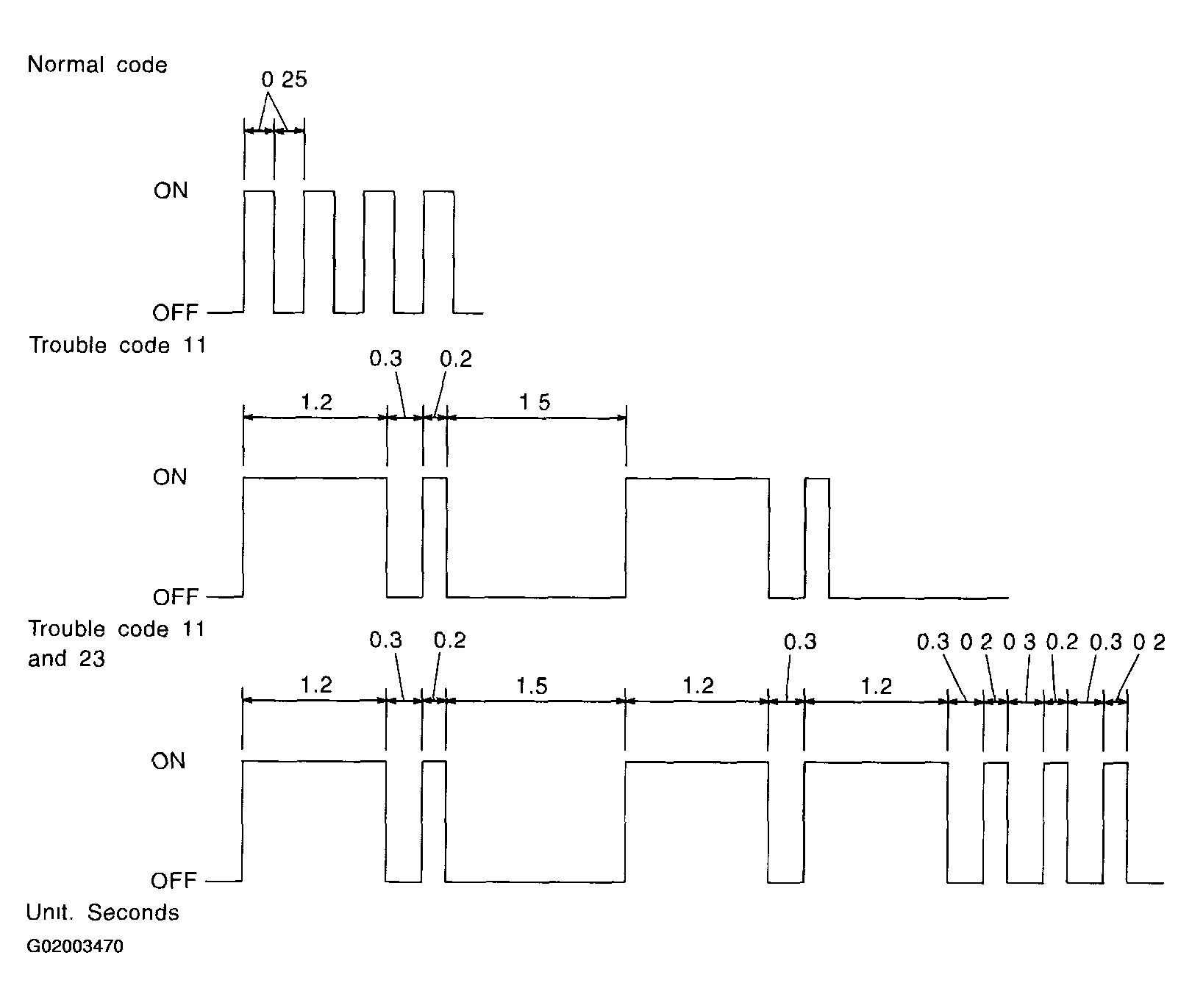

Fig 1: How To Read Trouble Codes (At The AT Oil Temp Indicator Light)
