2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Integrated Module: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.

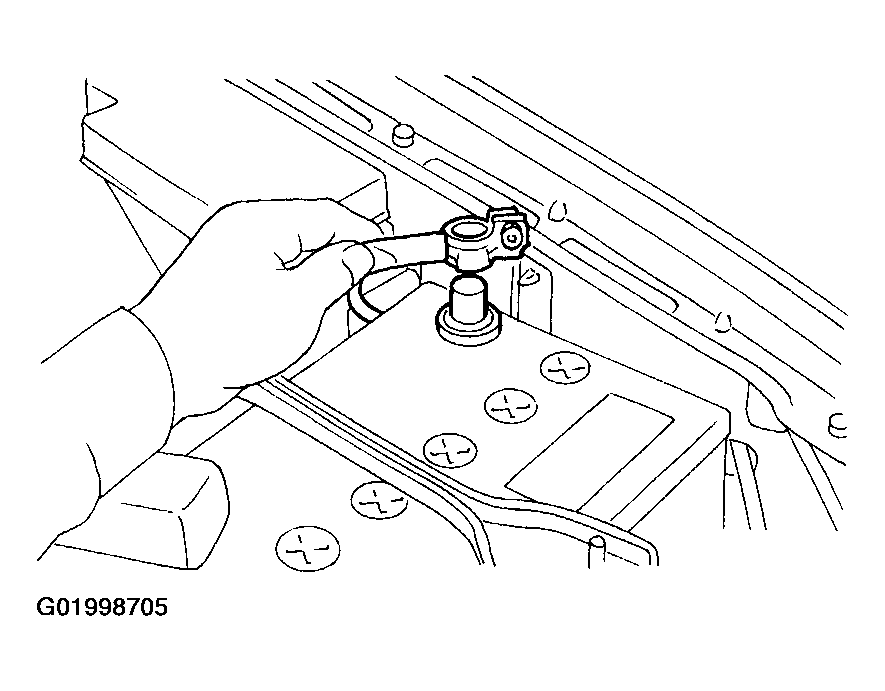

Fig 1: Disconnecting Ground Terminal From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.

Fig 2: Removing Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the knee bolster.

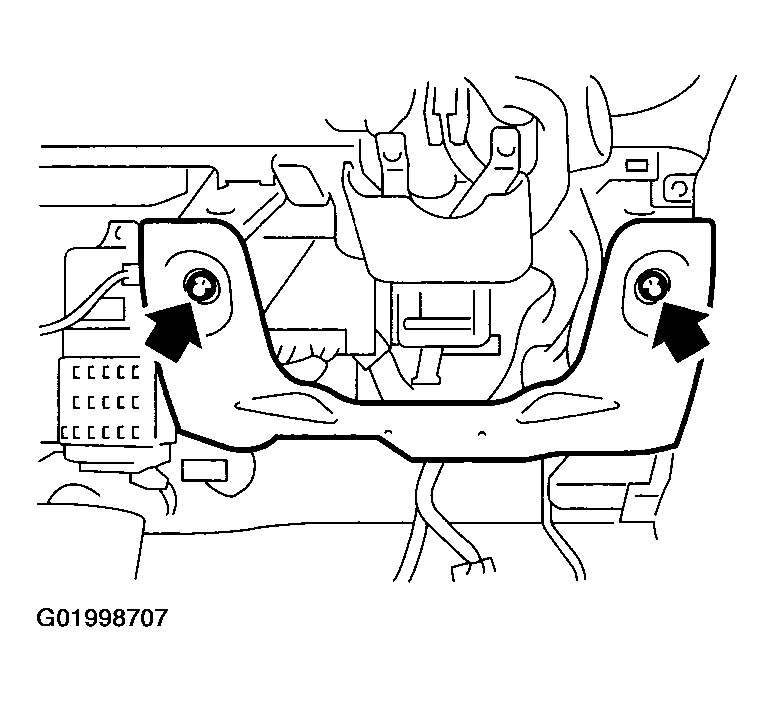

Fig 3: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from integrated module.
Remove the integrated module.

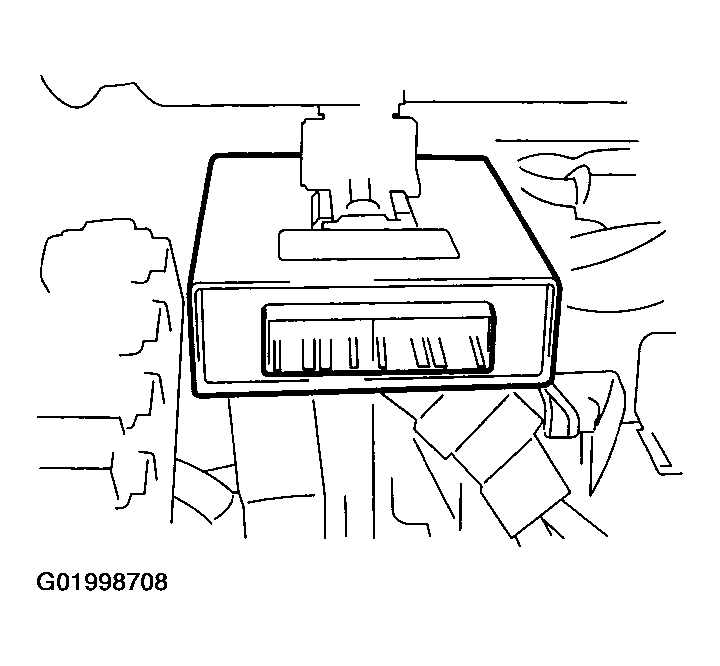

Fig 4: Removing Integrated Module
Courtesy of SUBARU OF AMERICA, INC.
