2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Combination Base Switch Assembly: Removal
WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's airbag module. < Ref. to DRIVER-SIDE AIR BAG MODULE . >
- Remove the steering wheel. < Ref. to POWER STEERING SYSTEM . >
- Remove the steering column cover.
- Remove the combination switch. < Ref. to REMOVAL . > and < Ref. to REMOVAL . >

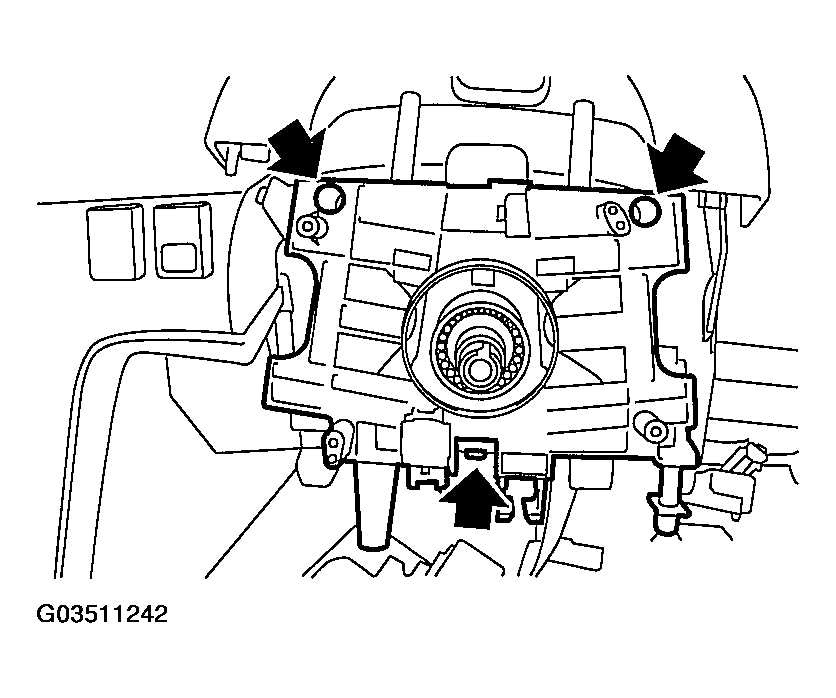

- Loosen the four screws and remove the roll connector.
- Loosen the three screws.
- Disconnect the connector and remove the combination base switch assembly.
