Insulation Test

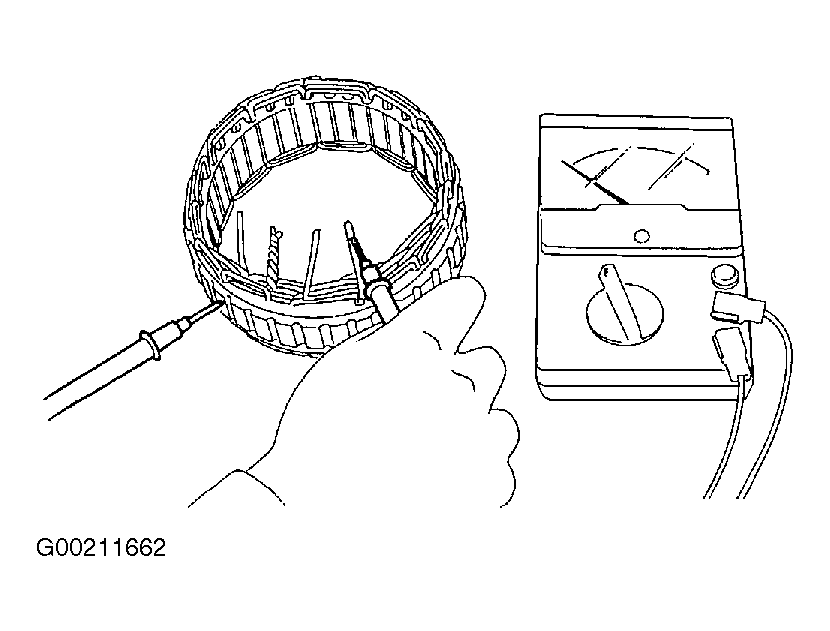

Inspect stator coil for continuity between stator coil and each lead wire (terminal) end. See Fig 1. If continuity exists, (one ohm or less), the stator coil is grounded. Replace stator assembly.
