2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Front ABS Sensor: Removal
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery ground cable.
- Disconnect front ABS sensor connector located next to front strut mounting house in engine compartment.

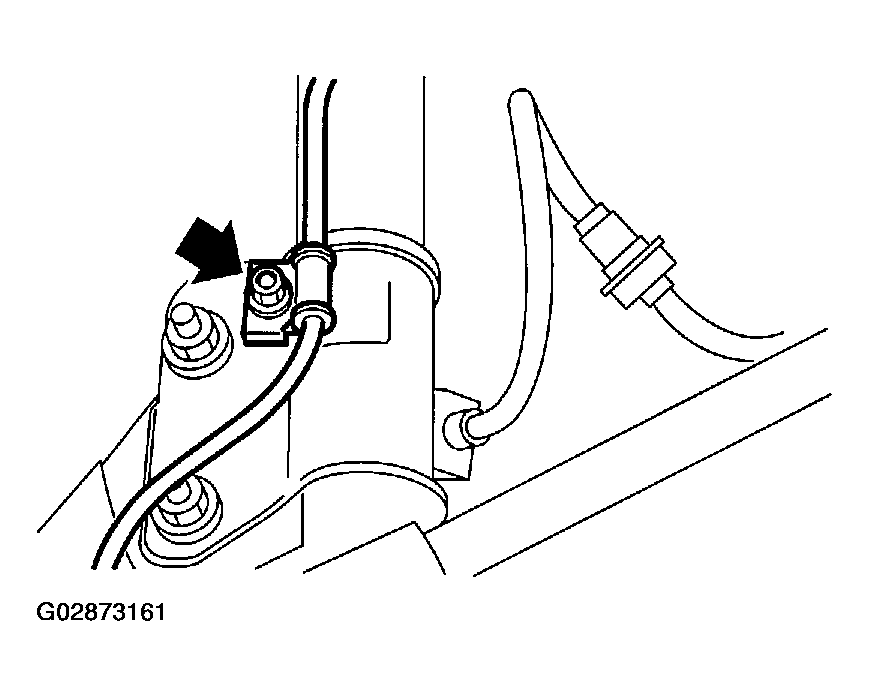

- Remove bolts which secure sensor harness to strut.

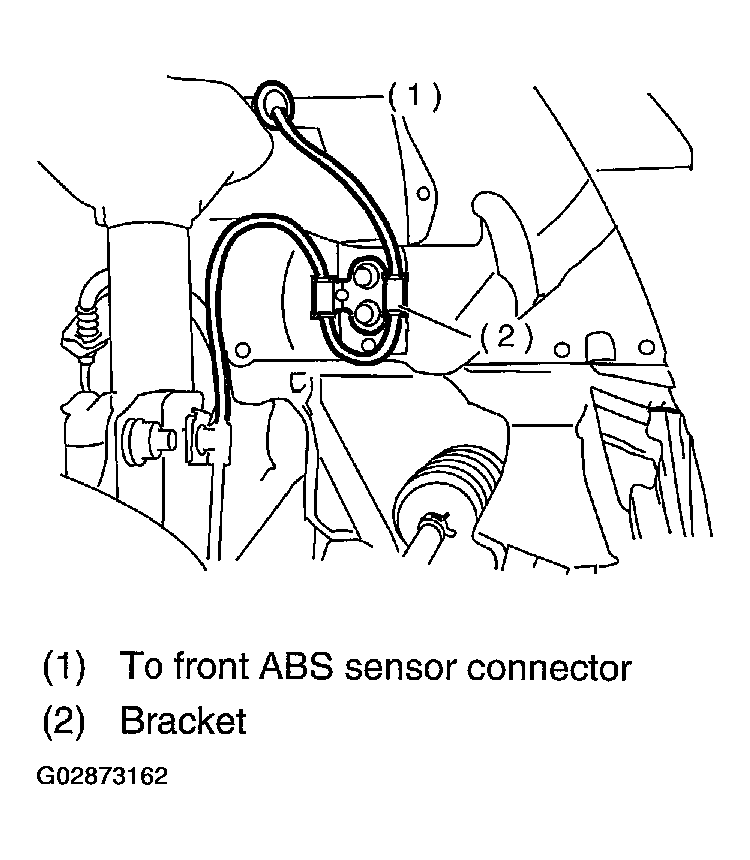

- Remove bolts which secure sensor harness to body.

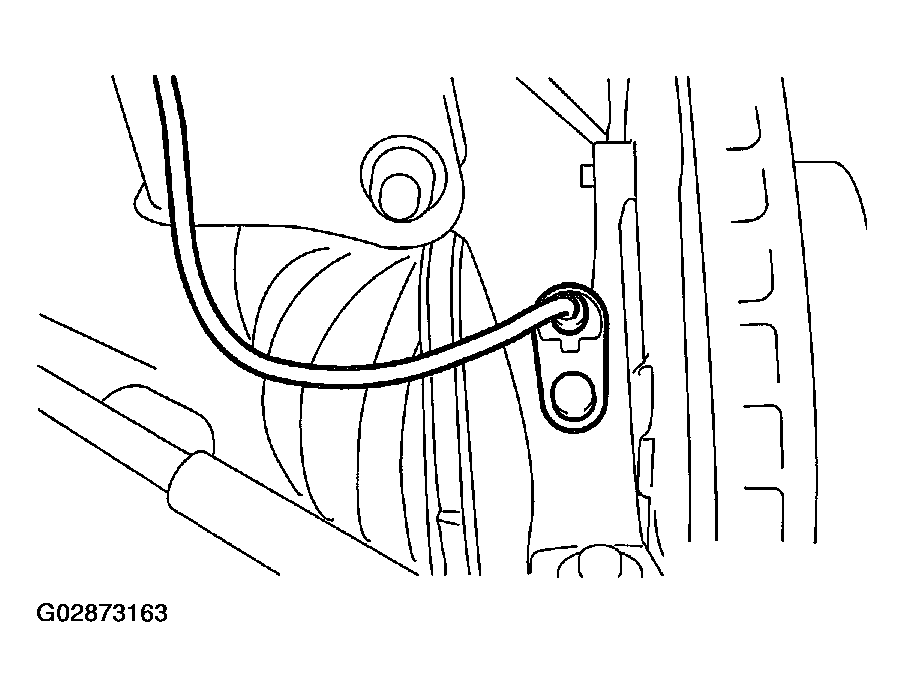

- Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull sensor harness during removal.
