2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Installation
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

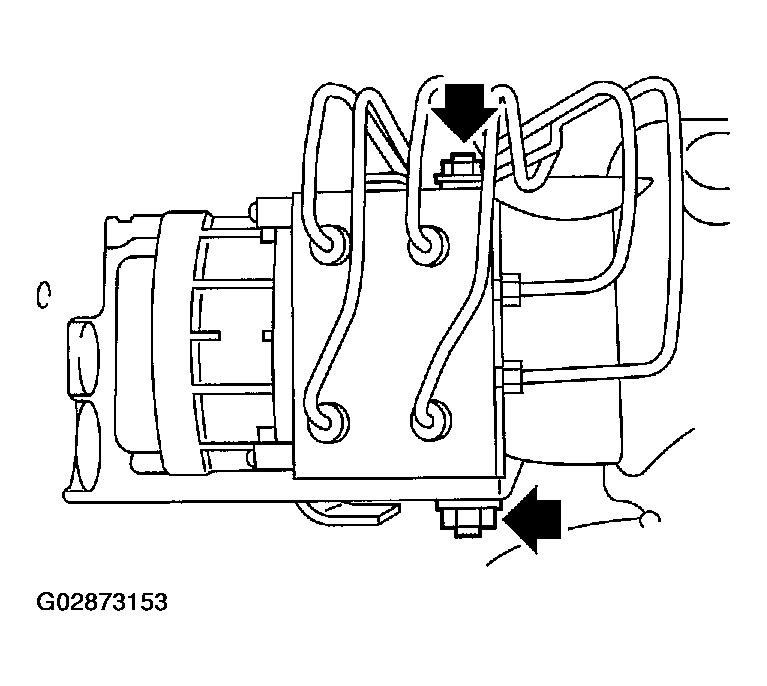

- Install ABSCM&H/U.CAUTION: Confirm that the specifications of the ABSCM&H/U conforms to the vehicle specifications.
- Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Install ABSCM&H/U ground terminal to bracket.
- Tightening torque: 32 N.m (3.3 kgf-m, 24 ft-lb)
- Connect brake pipes to their correct ABSCM&H/U connections.
- Tightening torque: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- Using cable clip, secure ABSCM&H/U harness to bracket.
- Connect connector to ABSCM&H/U.CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM&H/U connector is securely locked.
- Install air intake duct.
- Connect ground cable to battery.
- Bleed air from the brake system.
