2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Differential Case Assembly
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

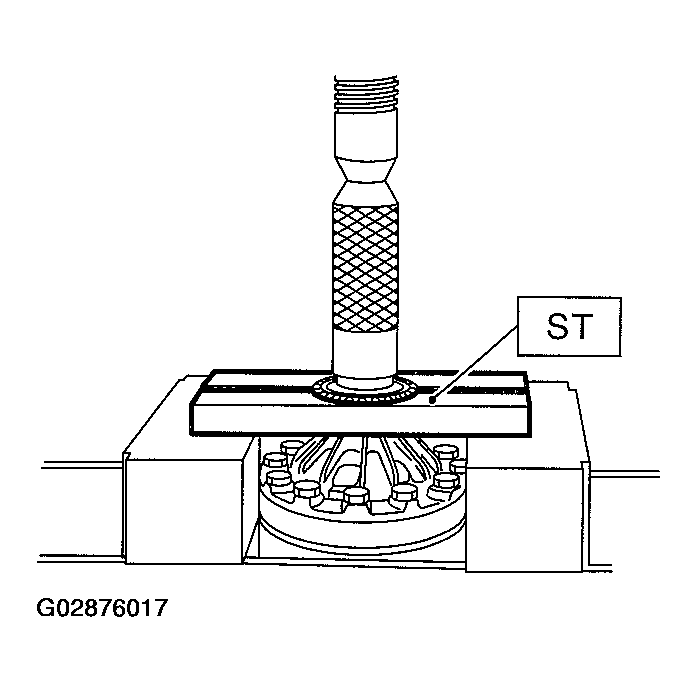

- Using a press and ST, remove the taper roller bearing.
- ST 498077000 REMOVER

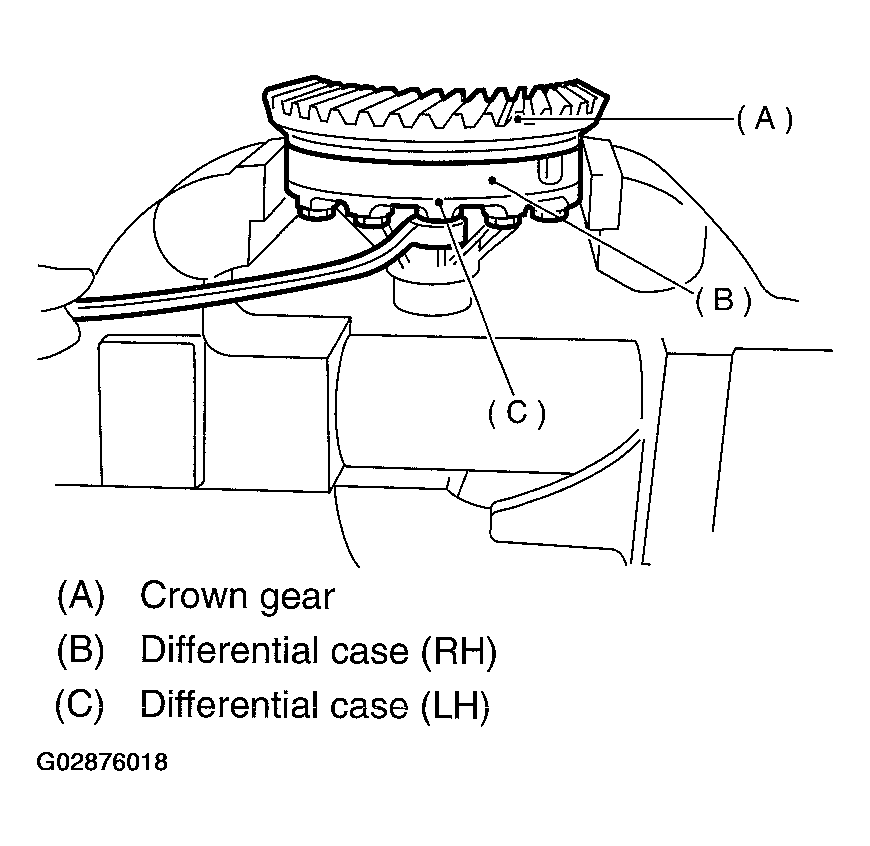

- Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

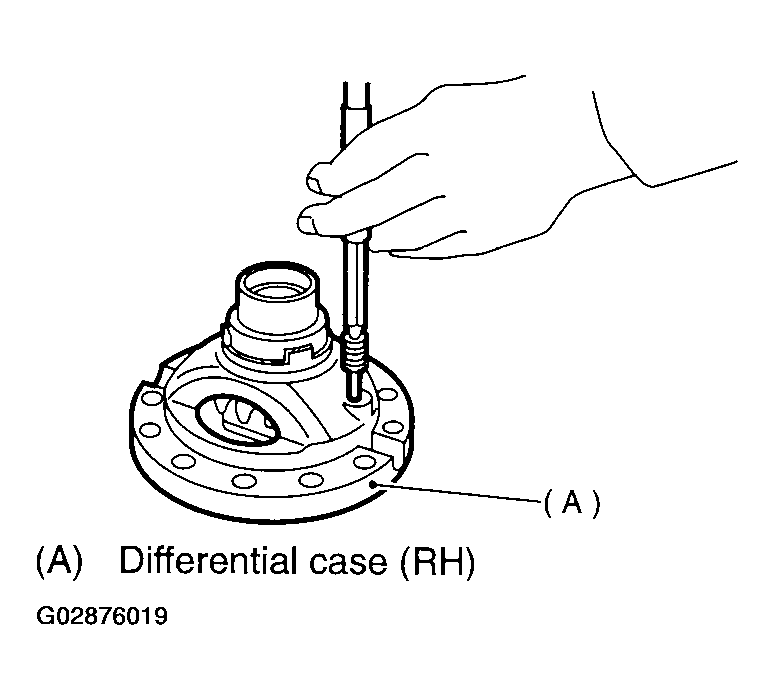

- Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.
