Set the range select lever in "N" range.
Install the control valve, ATF temperature sensor and ground connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

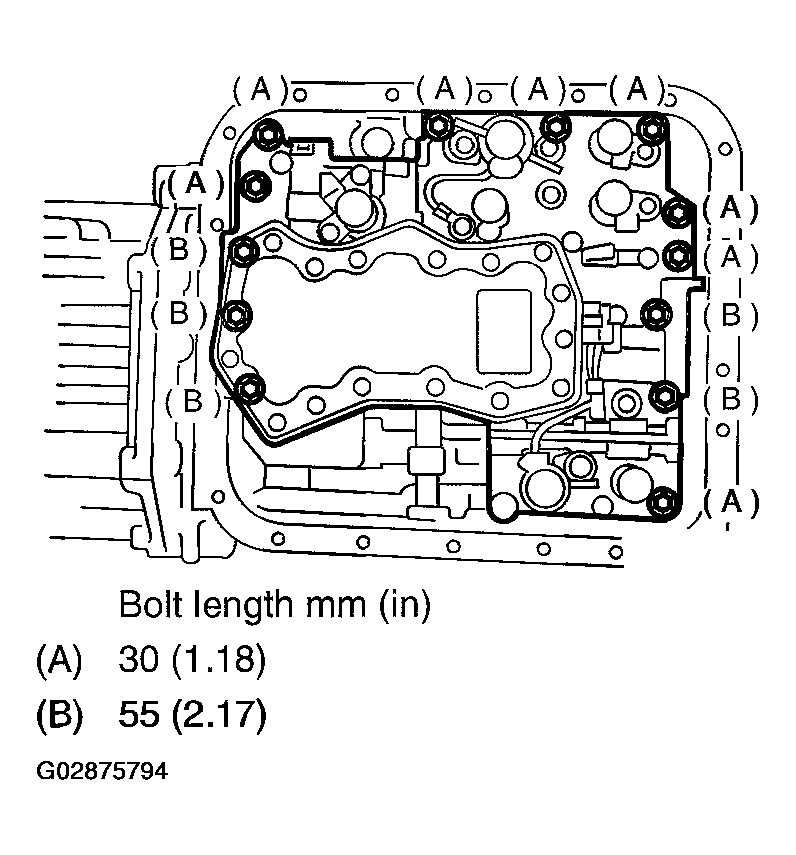

  Fig 1: Installing Control Valve
  Courtesy of SUBARU OF AMERICA, INC.
Connect all connectors.

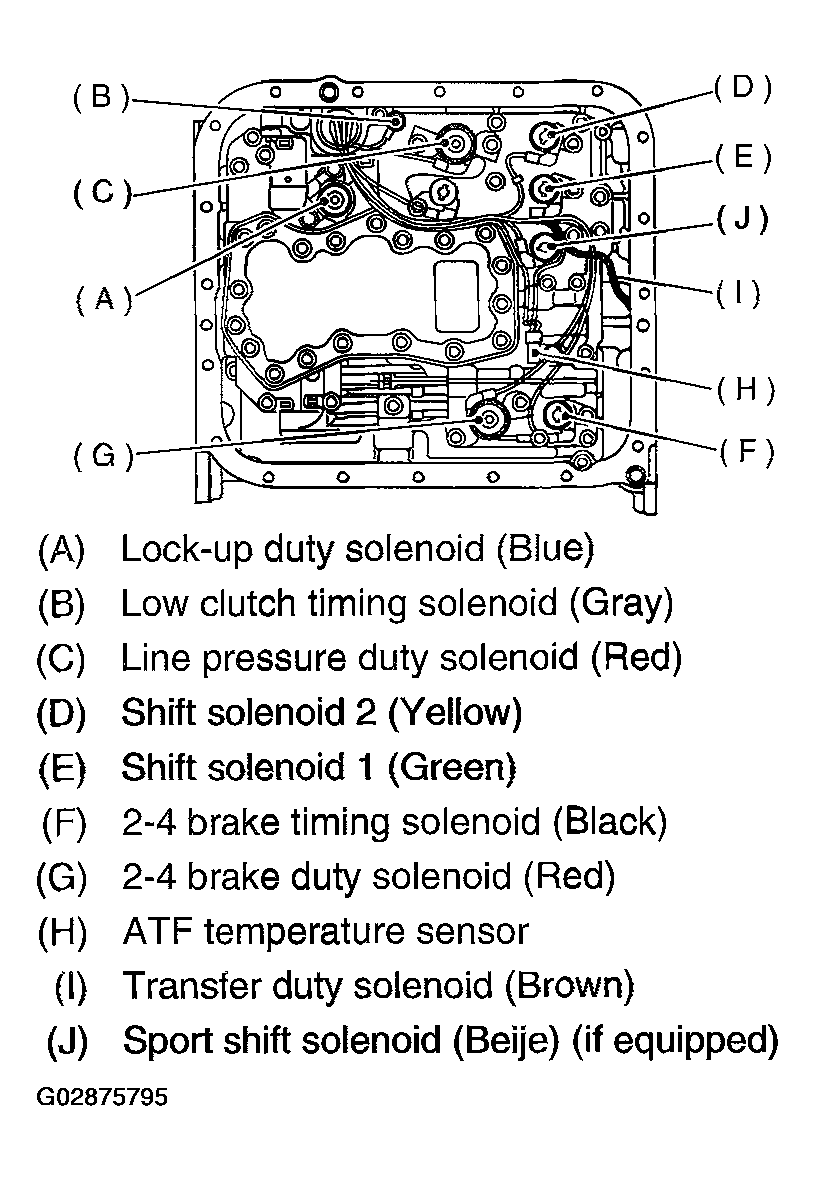

Fig 2: Connecting All Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at specified position.

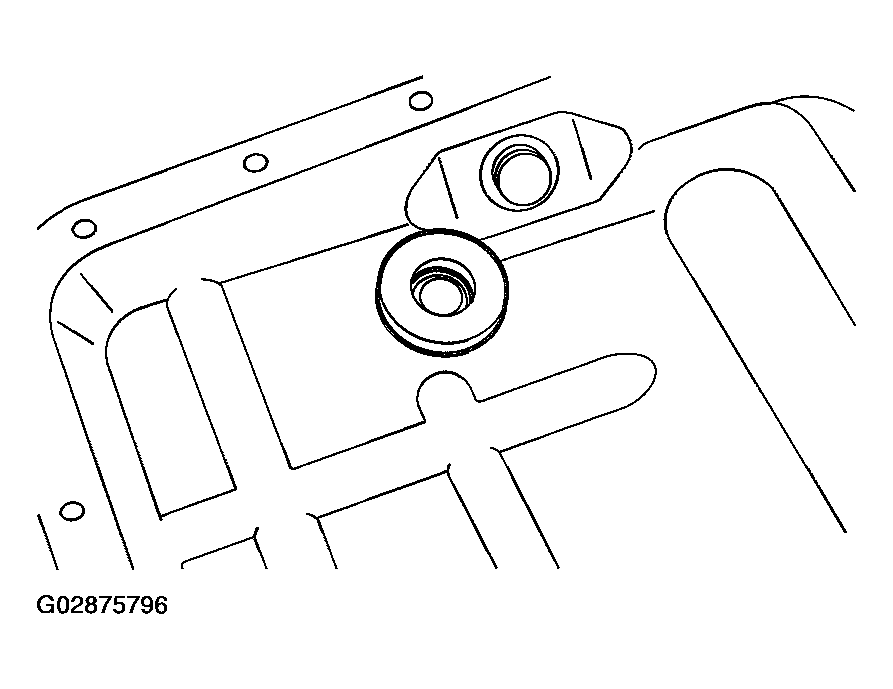

Fig 3: Attaching Magnet At Specified Position
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
1. Liquid gasket: THREE BOND 1217B (Part No. K0877YA020)

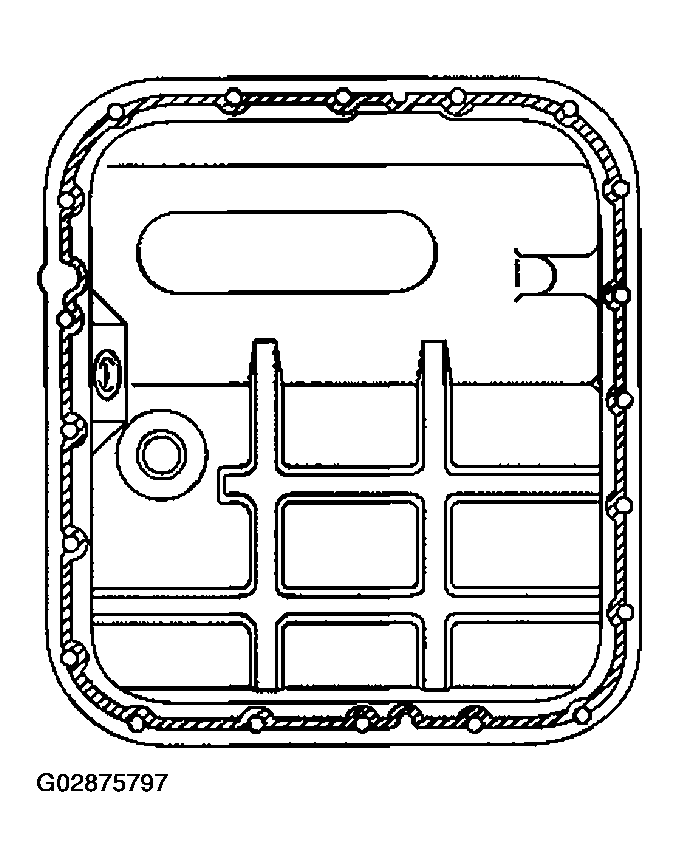

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket fully to three holes other than screw holes on transmission case.
1. Liquid gasket: THREE BOND 1217B (Part No. K0877YA020)

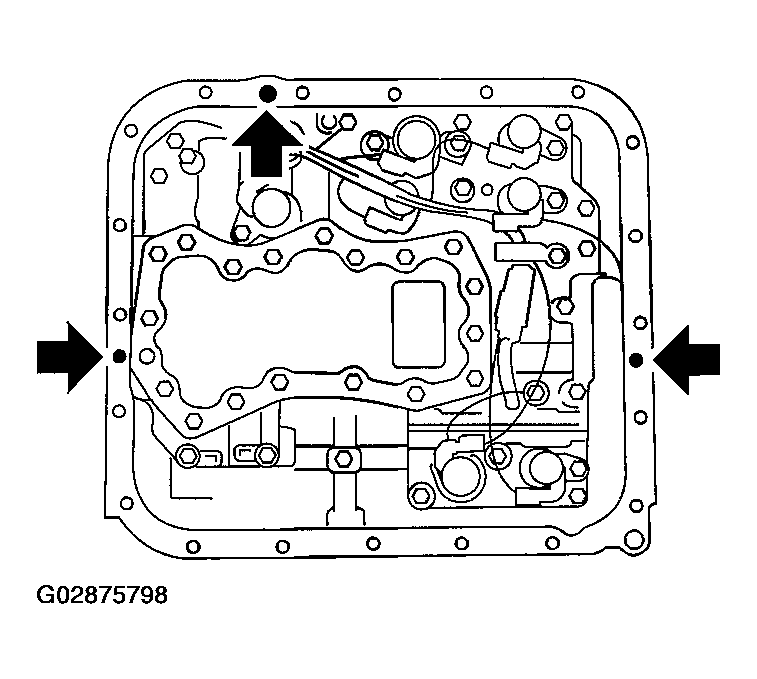

Fig 5: Applying Liquid Gasket To Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe.
Recommended fluid:
1. Dexron III type automatic transmission fluid
Fluid capacity:
1. Fill the same amount of fluid drained from drain plug hole.
Check the level of ATF.
< Ref. to AUTOMATIC TRANSMISSION FLUID .>
