Install a new seal ring to piston.

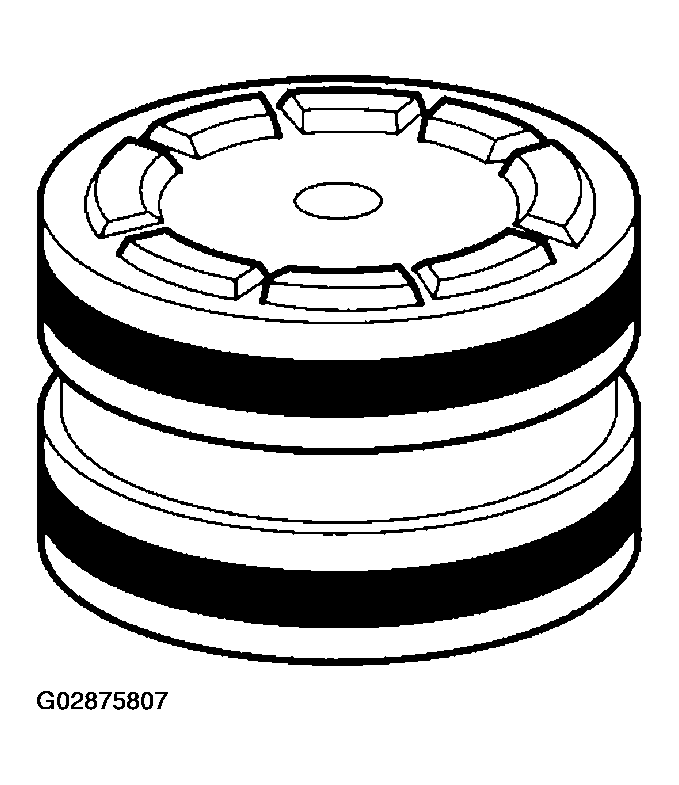

Fig 1: Installing New Seal Ring To Piston
Courtesy of SUBARU OF AMERICA, INC.
Apply ATF to the seal ring.
Insert the piston fully into upper valve body.

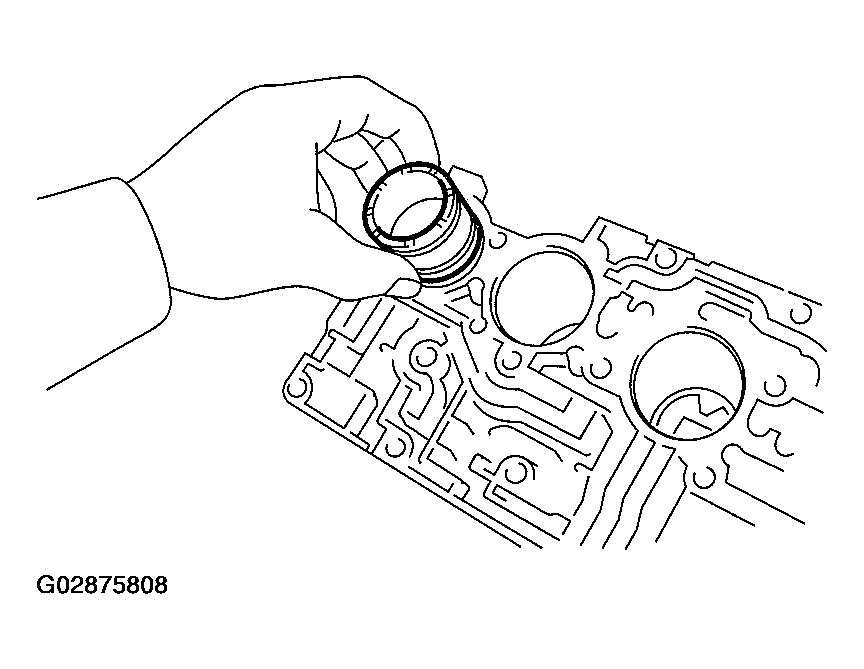

Fig 2: Inserting Piston Fully Into Upper Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Install the spring and four steel balls to specified positions of upper valve body.

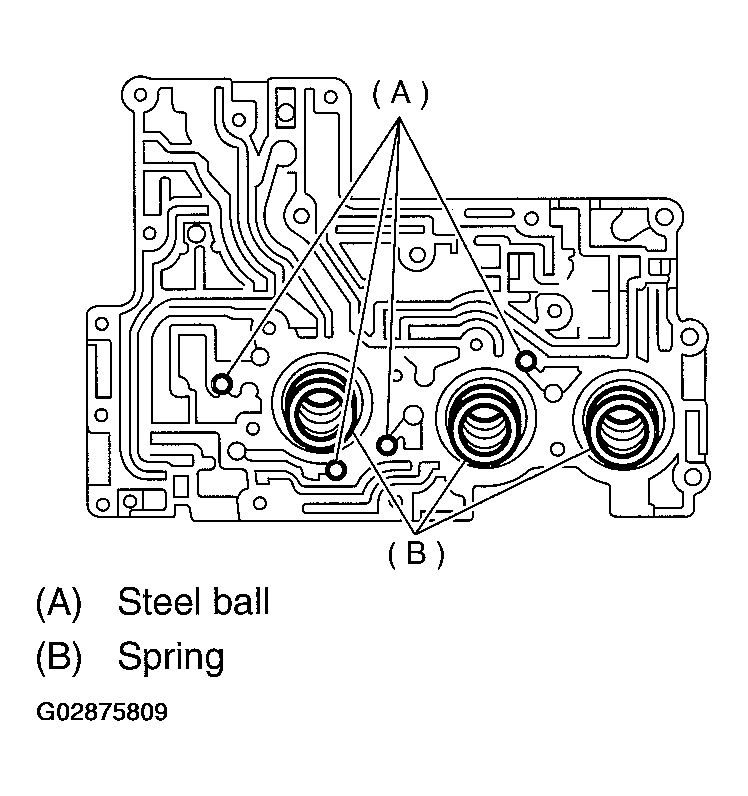

Fig 3: Installing Spring & Four Steel Balls To Specified Positions Of Upper Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Align the hole in side plate with the hole in separator plate, and then install support plate and upper separator plate to middle valve body.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

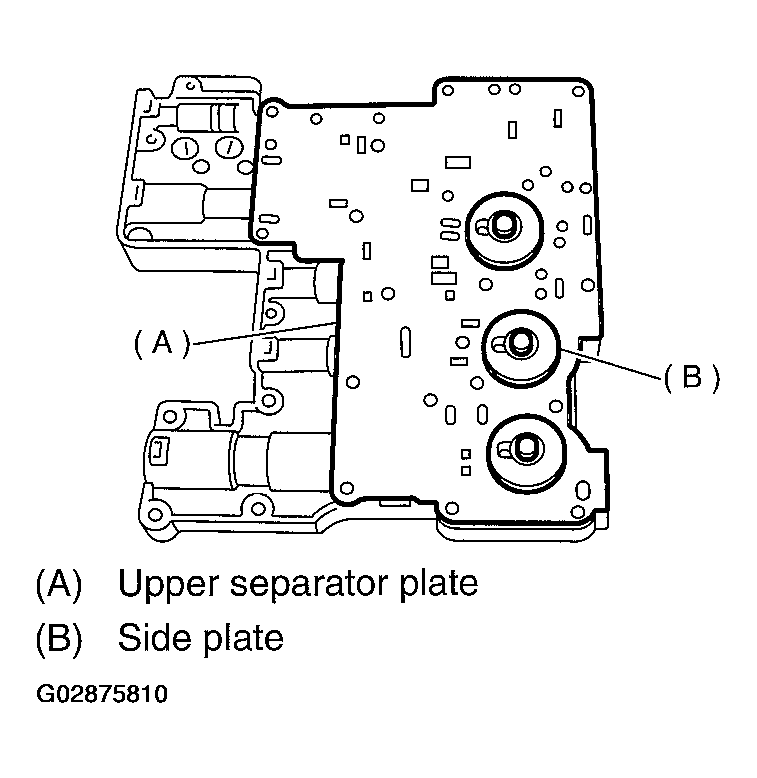

Fig 4: Installing Support Plate & Upper Separator Plate To Middle Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Insert six steel balls in their proper positions to middle valve body.

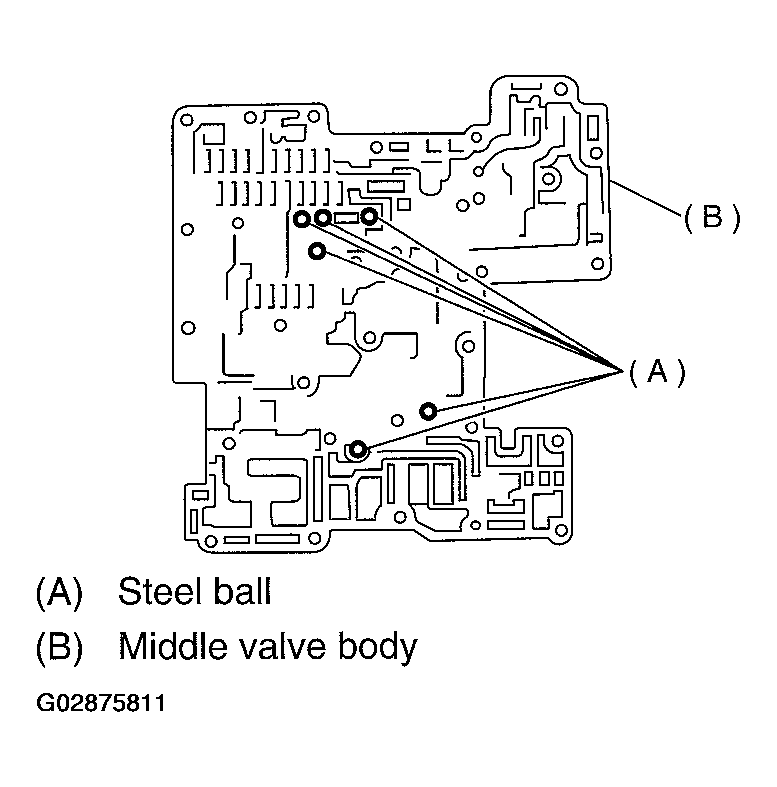

Fig 5: Inserting Six Steel Balls To Proper Positions To Middle Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Install three filters to lower valve body.
NOTE: Pay attention to the location of filters.
