2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Combination Switch (Light): Removal
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect ground cable from battery.
- Remove instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
- Remove screws which secure upper column cover to lower column cover.
- Disconnect connector from combination switch.

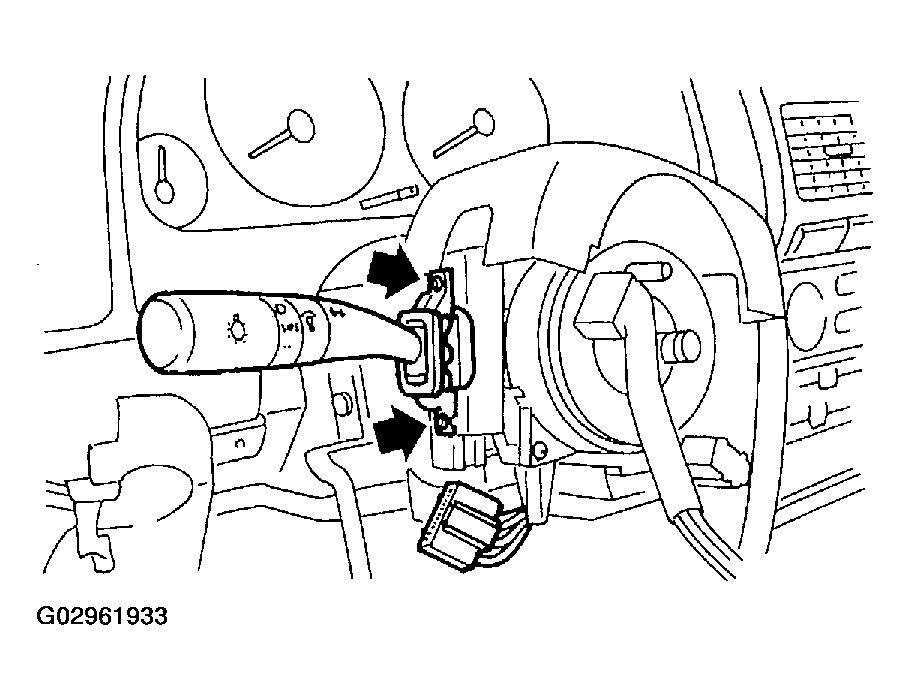

- Remove screws which secure switch and remove switch.
