2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Turbo Model
WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

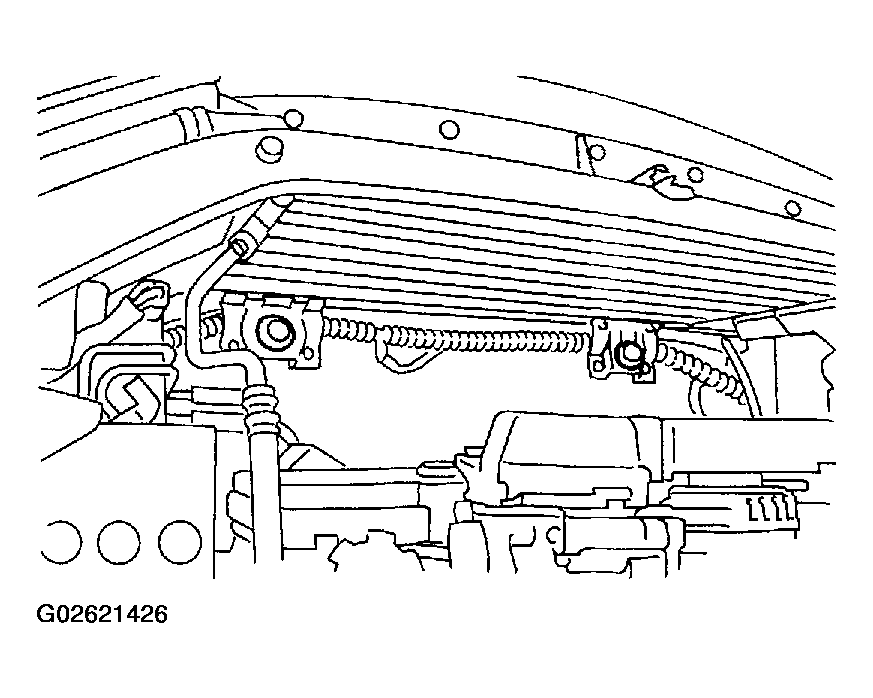

- Attach the radiator mounting cushions to holes on the vehicle.

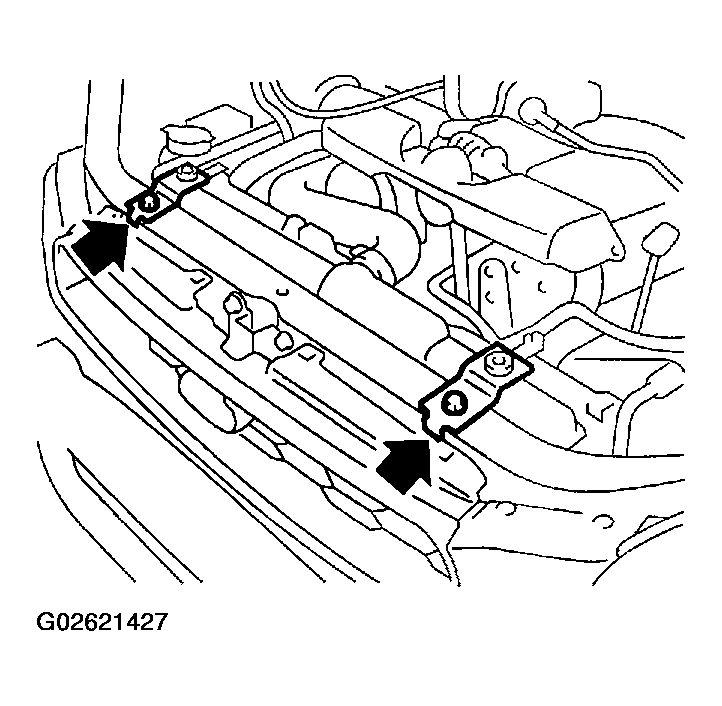

- Install the radiator brackets and tighten bolts.
- Tightening torque: 18 N.m (1.8 kgf.m, 13.0 ft.lb)

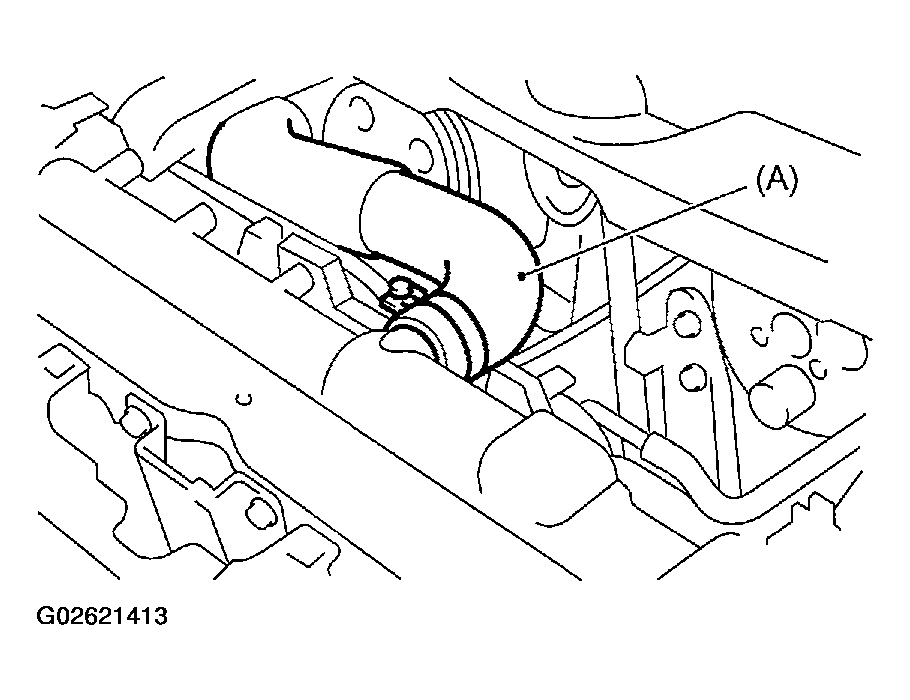

- Connect the radiator inlet hose (A) and coolant filler tank hose (B).
