2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Attach the radiator mounting cushions to holes on the vehicle.

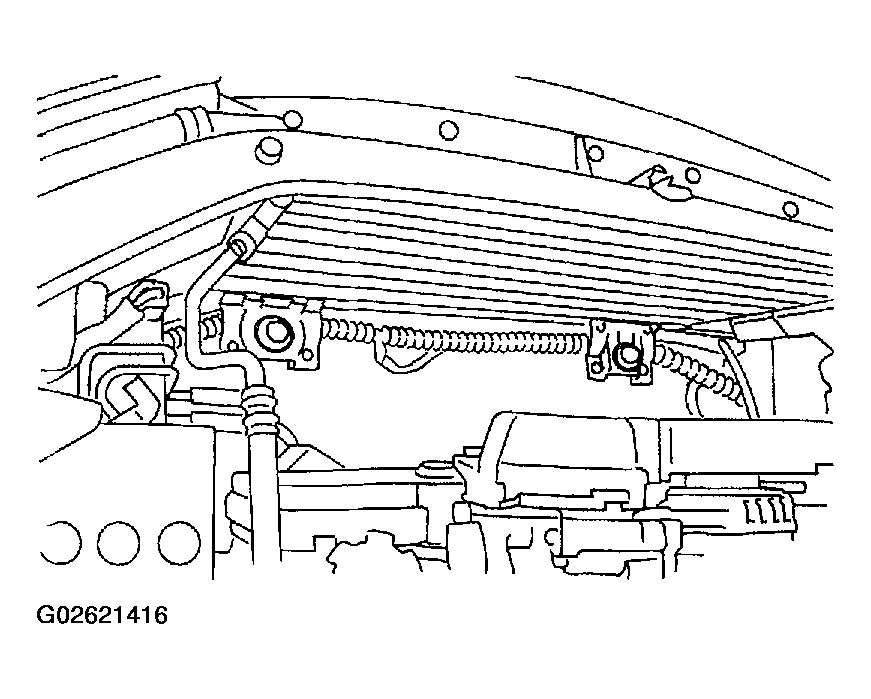

Fig 1: Attaching Radiator Mounting Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.
