2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
VDC Control Module (VDCCM): Removal

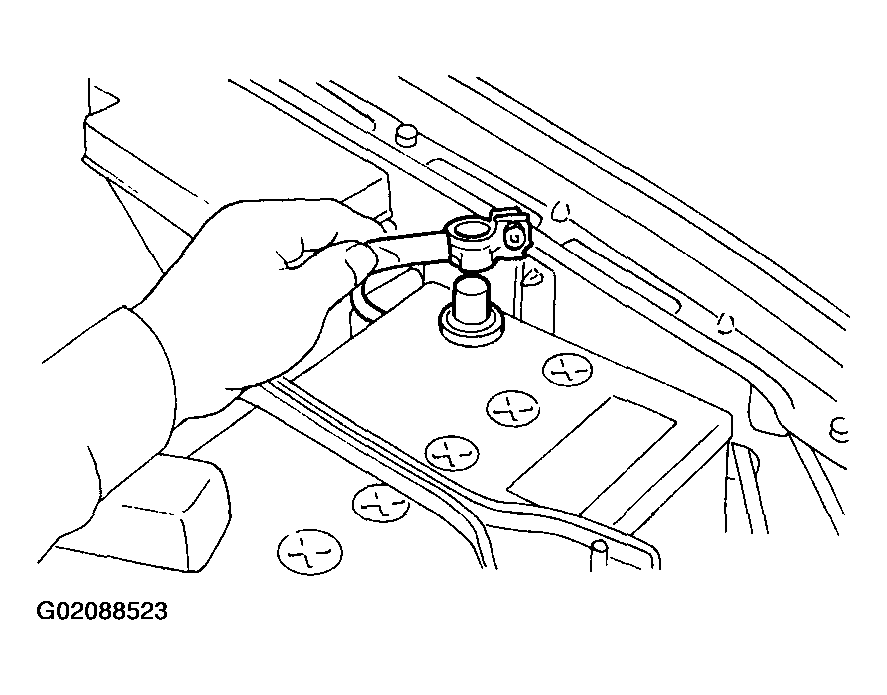

- Disconnect battery ground cable.

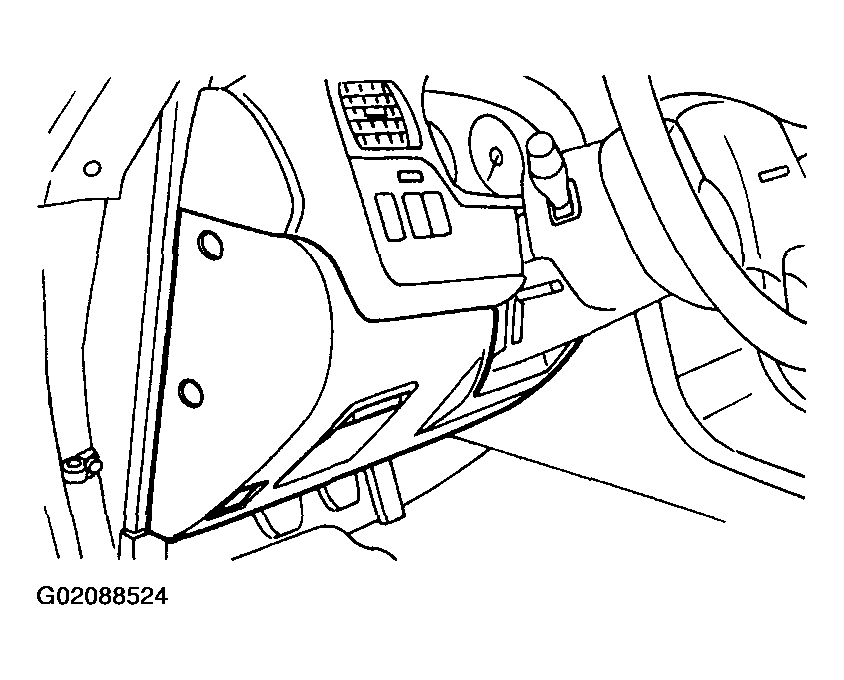

- Remove lower cover of instrument panel and disconnect connectors on the back side of the cover.

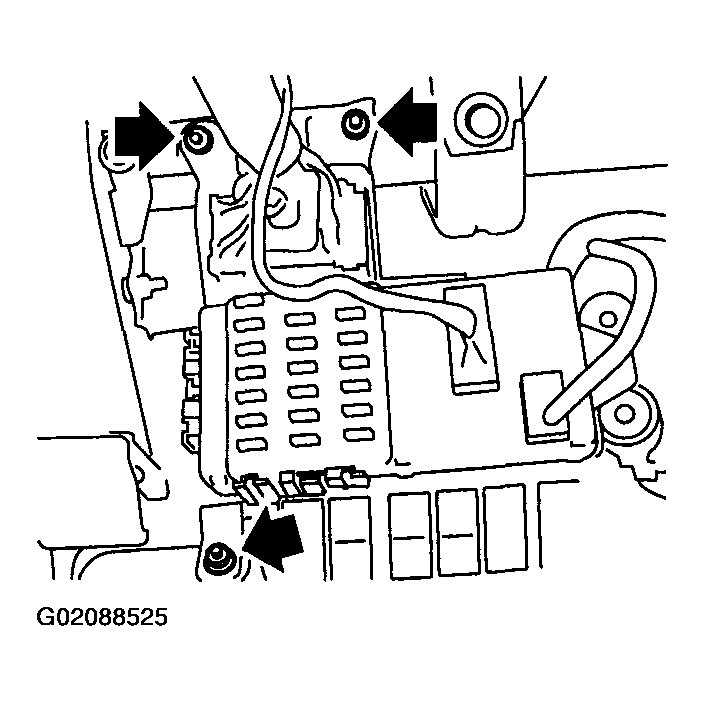

- Remove three bolts which secure the fuse box onto body side, then move the fuse box aside.

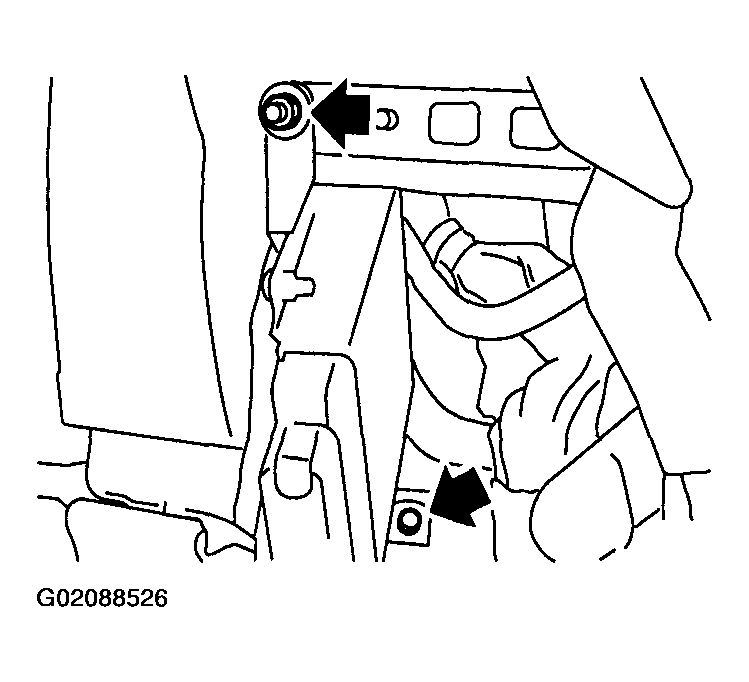

- Remove two bolts which install VDCCM onto body side bracket.

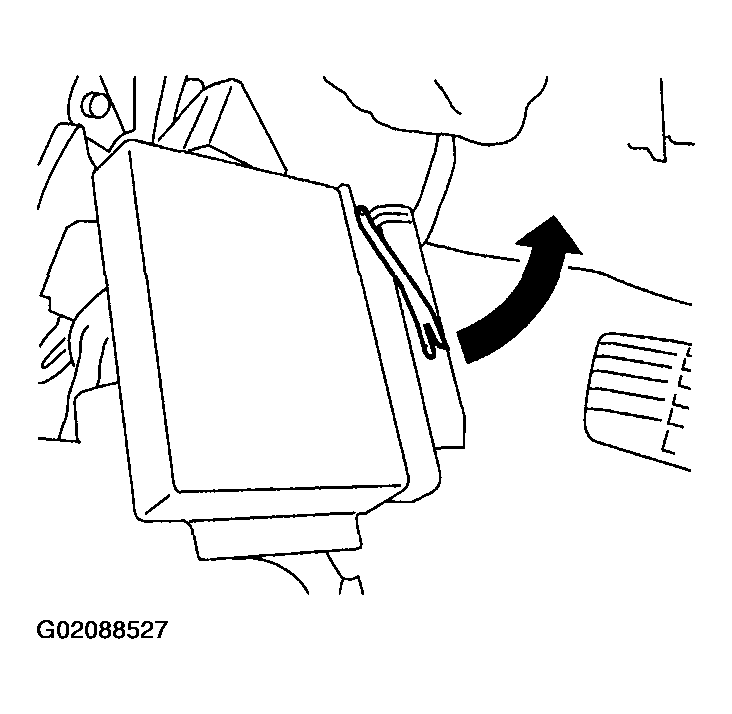

- Disconnect connector from VDCCM by pulling up the securing holder.
- Remove VDCCM.
