2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Relay Box

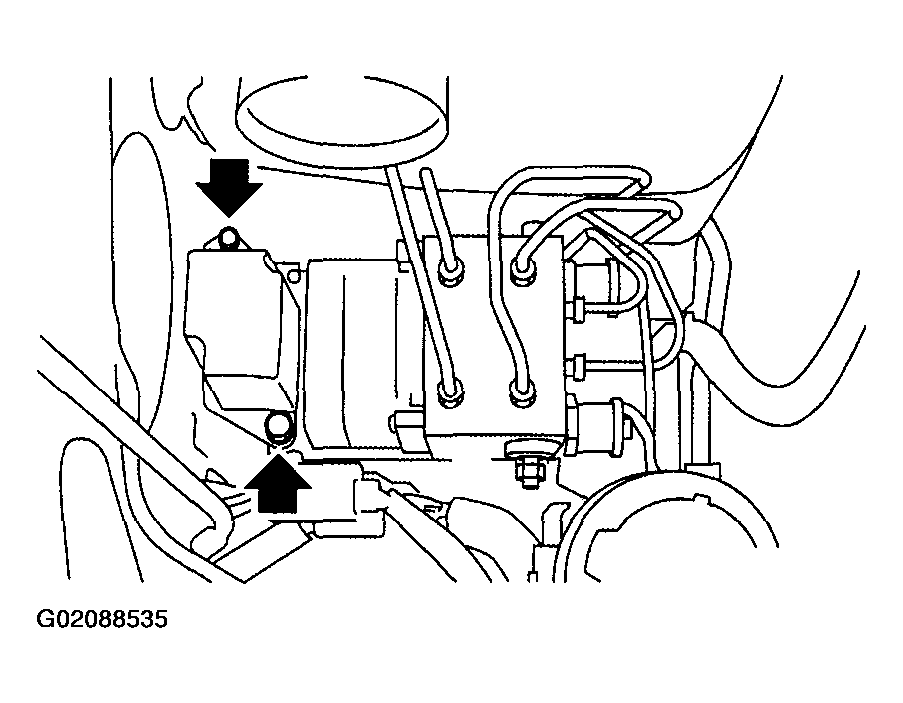

- Install relay box and connector bracket.
Tightening torque:
- 18 N.m (1.8 kgf-m, 13.0 ft-lb)

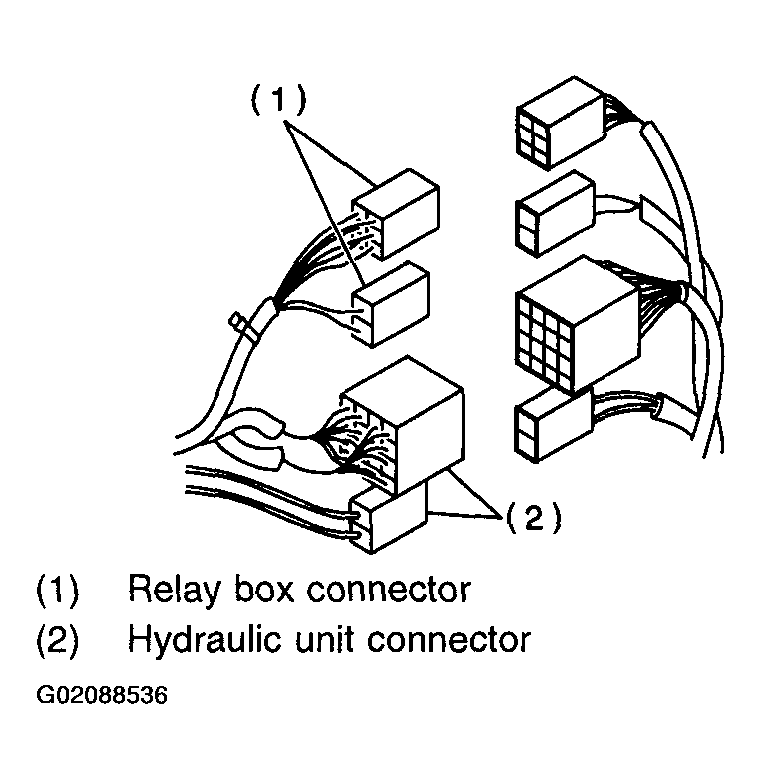

- Secure relay box connector to connector bracket.CAUTION: Align connector with mating receptacle.
- Connect connector to relay box.
- Install air intake duct.
- Connect ground cable to battery.
