Read Diagnostic Trouble Code

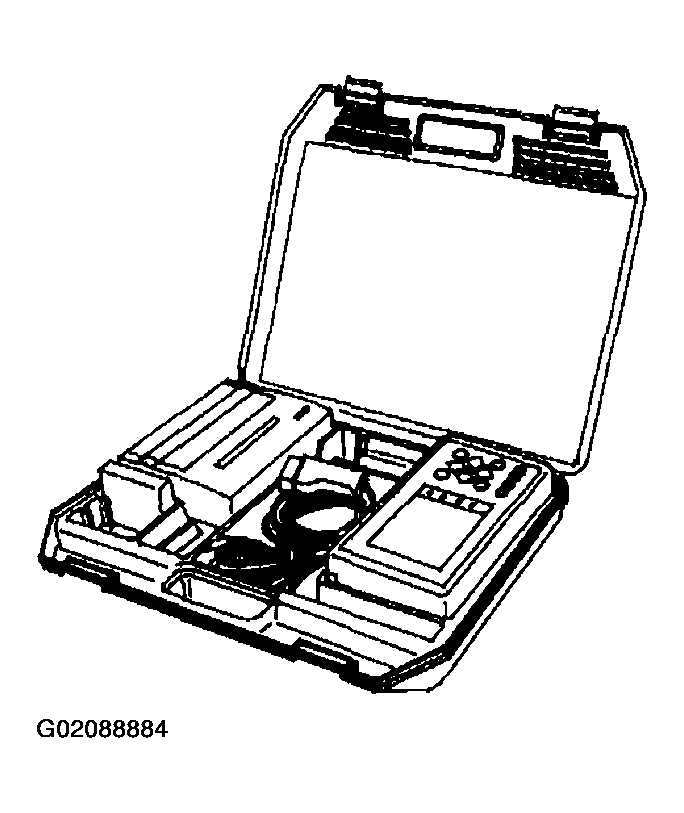

- Prepare Subaru Select Monitor kit.
- Connect diagnosis cable to Subaru Select Monitor.

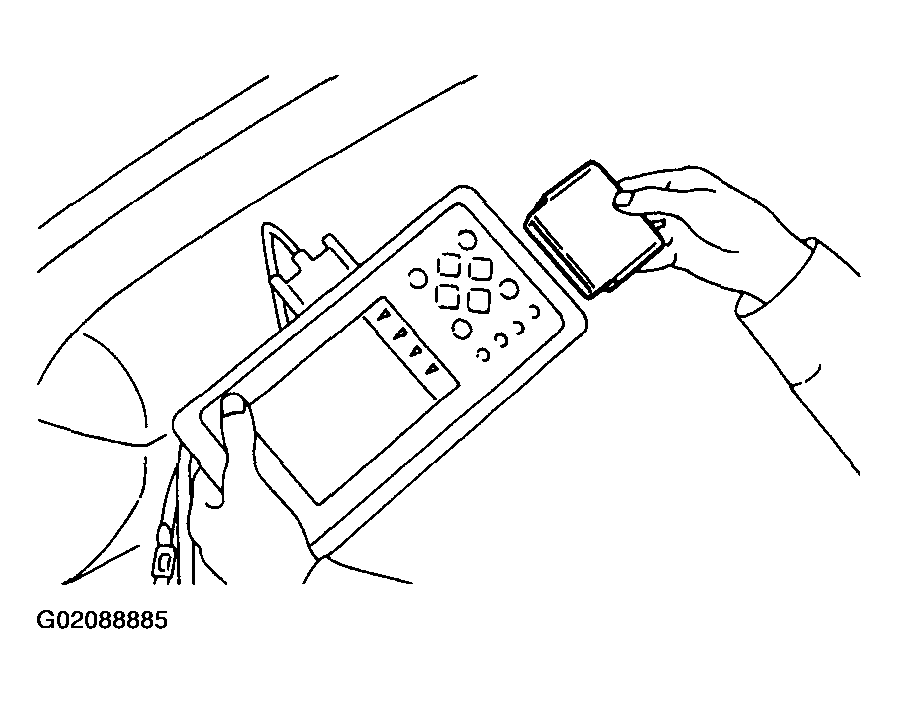

- Insert cartridge into Subaru Select Monitor. See PREPARATION TOOL .
- Connect Subaru Select Monitor to data link connector.

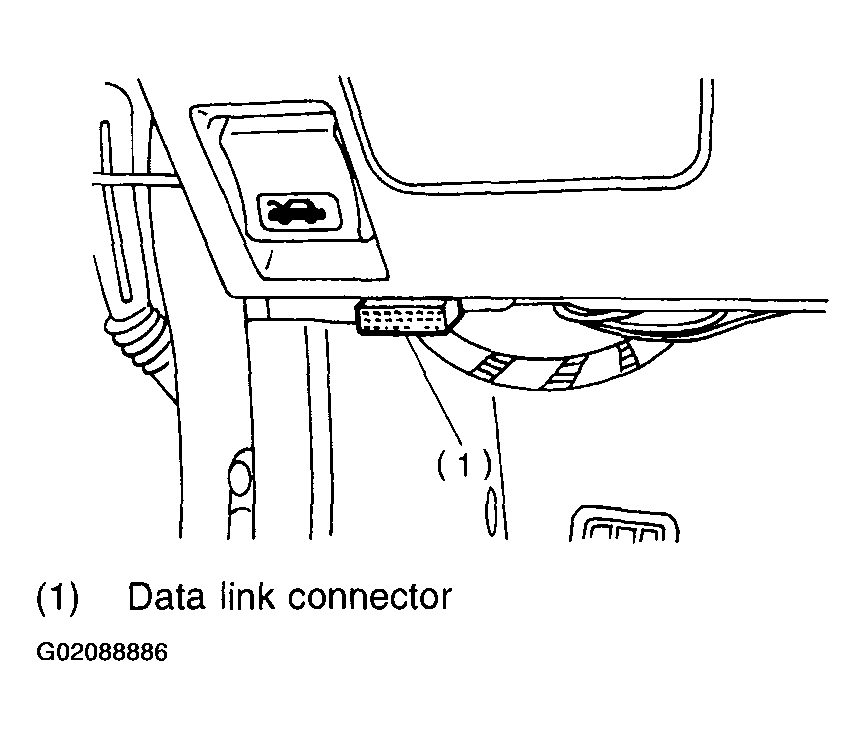

- Data link connector located in the lower portion of the instrument panel (on the driver's side).
- Connect diagnosis cable to data link connector.

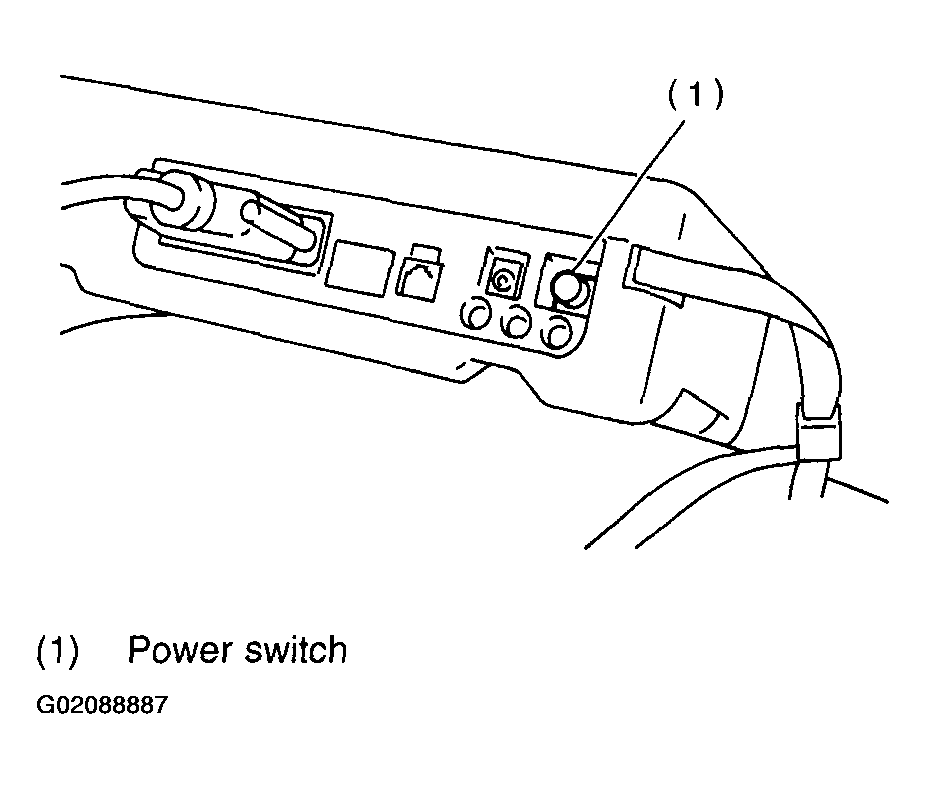

- Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
- On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
- On the << System Selection Menu >> display screen, select the {Brake Control System} and press the [YES] key.
- Press the [YES] key after displayed the information of engine type.
- On the << Brake Diagnosis >> display screen, select the {Diagnostic Code(s) Display} and press the [YES] key.
- On the << Diagnostic Code(s) Displays >> display screen, select the {Current Diagnostic Code(s)} or {History Diagnostic Code(s)} and press the [YES] key.
- For detailed operation procedure, see Subaru Select Monitor .
- For detailed concerning diagnostic trouble codes, see List of Diagnostics Trouble Code .

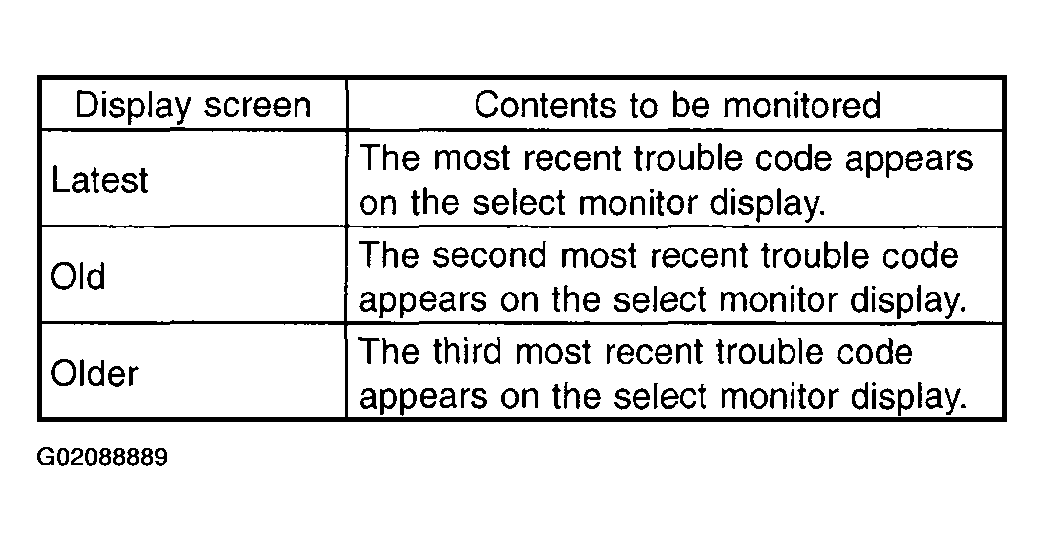

- A maximum of 3 trouble codes are displayed in order of occurrence.

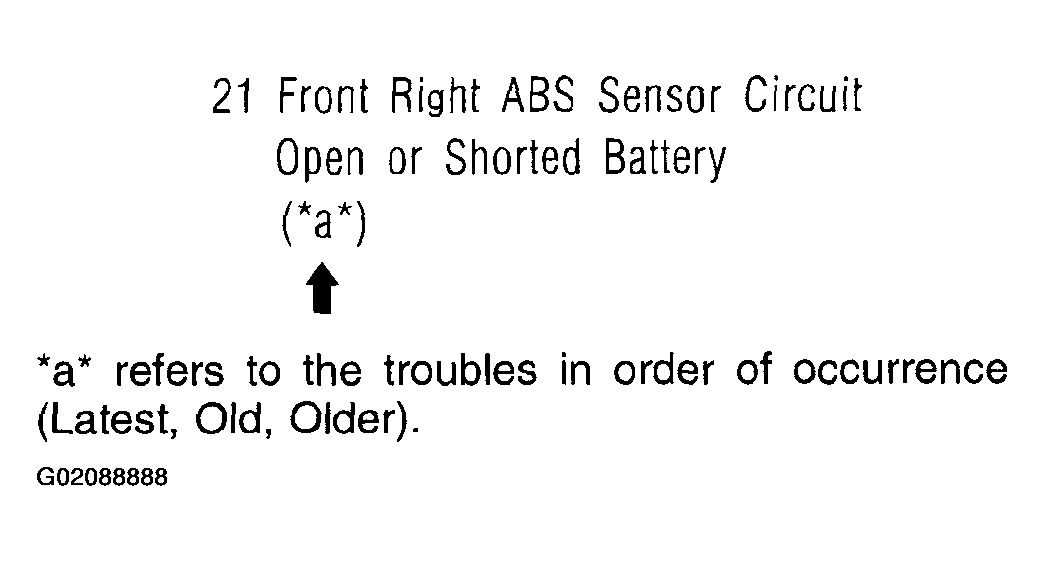

"a" refers to trouble codes in order of occurrence (Latest, Old, Older).
