2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Read Current Data

  1. On the << Main Menu >> display screen, select {Each System Check} and press the << YES >> key.
  2. On the << System Selection Menu >> display screen, select {Brake Control System} and press << YES >> key.
  3. Press the << YES >> key after the VDC type is displayed.
  4. On the << Brake Control Diagnosis >> display screen, select {Current Data Display & Save} and press the << YES >> key.
  5. On the << Data Display Menu >> display screen, select {Data Display} and press the << YES >> key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.
  • A list of the support data is shown in the following table.

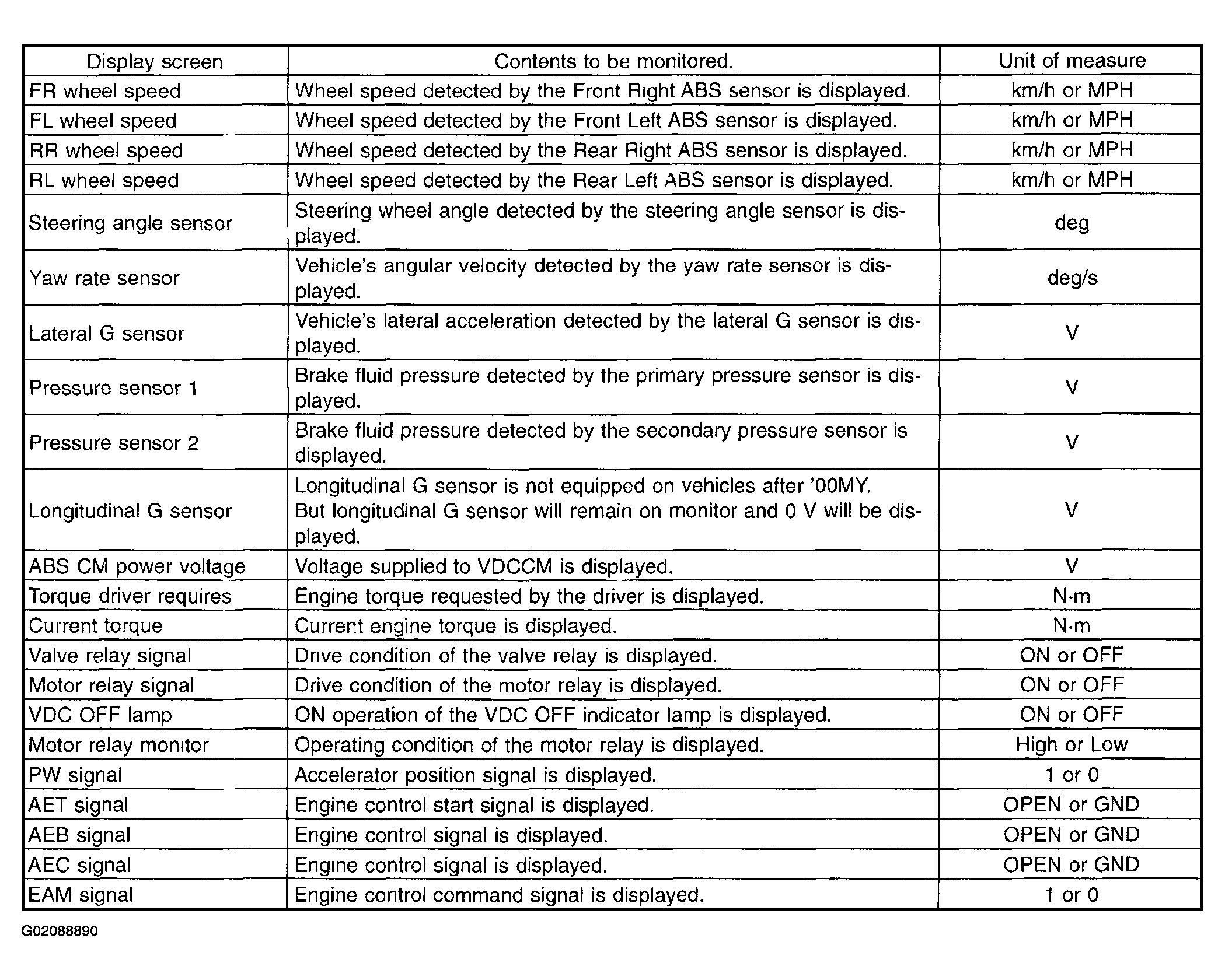

    Fig 1: Current Data Display Chart
    G02088890
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL. See Subaru Select Monitor  .
