2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Transmission Control Module (TCM): Removal

Disconnect battery ground terminal.

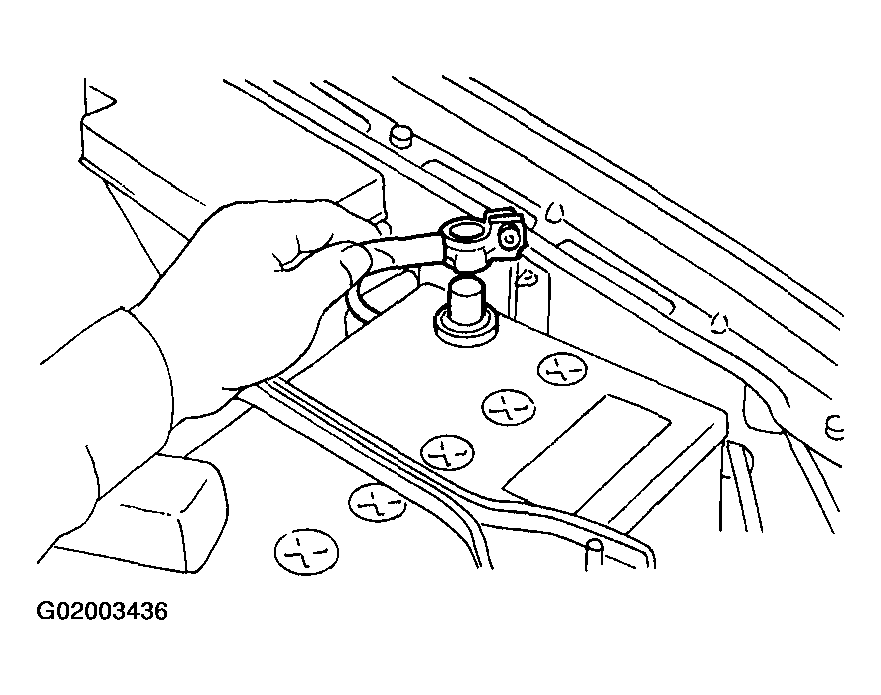

Fig 1: Disconnecting Battery Ground Terminal
Remove lower cover and then disconnect connector.

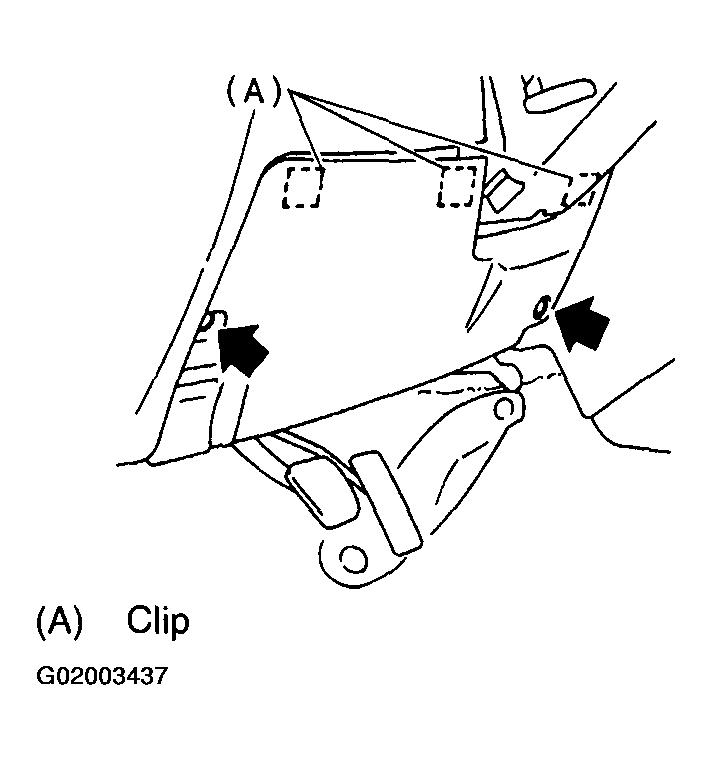

Fig 2: Removing Lower Cover On Driver's Side
Disconnect connectors form TCM.
Remove transmission control module.

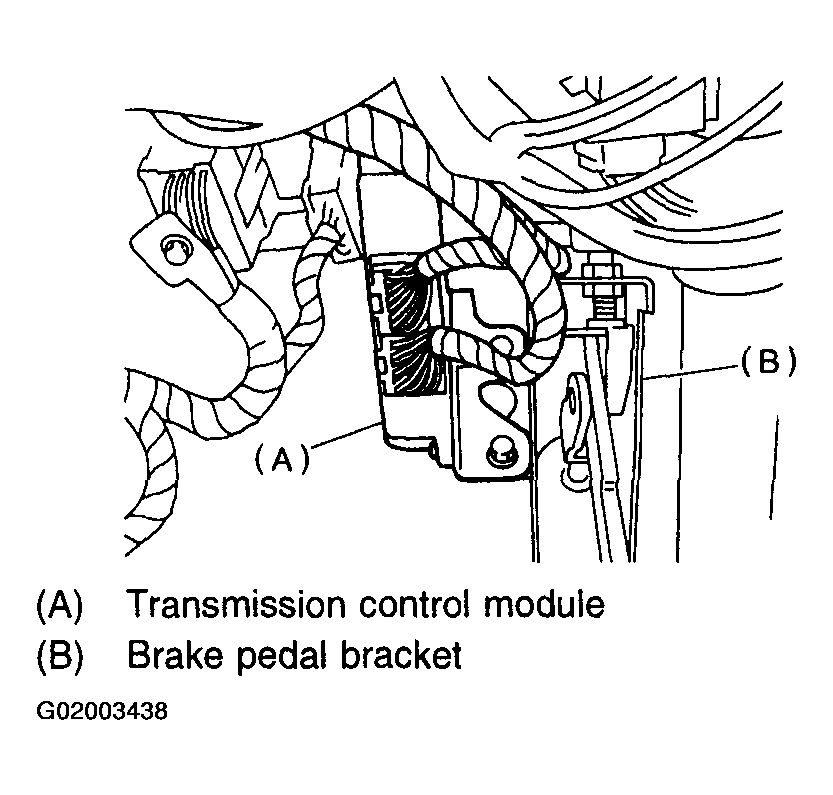

Fig 3: Identifying Transmission Control Module
