Oil Pump Assembly: Inspection
- Check seal ring and O-ring oil seal for breaks or damage.
- Check other parts for dents or abnormalities.

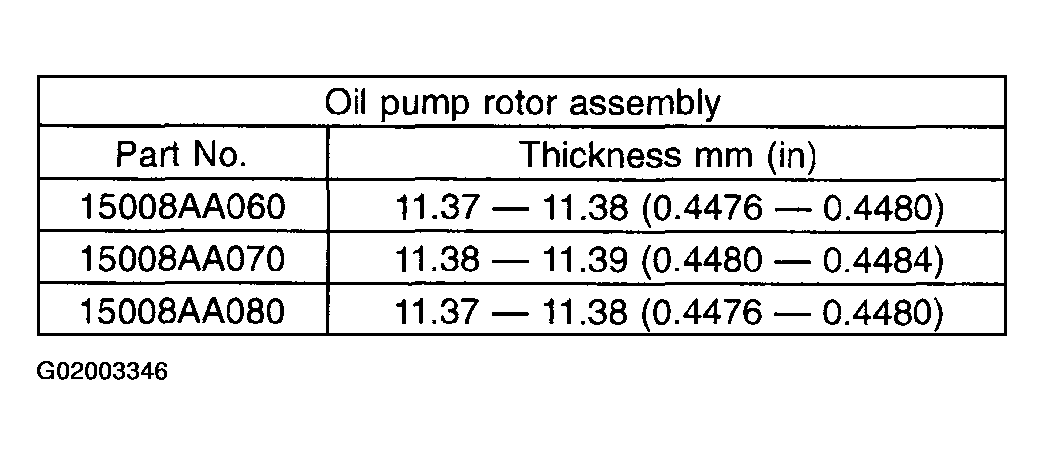

- Selection of oil pump rotor assembly
- Tip clearance

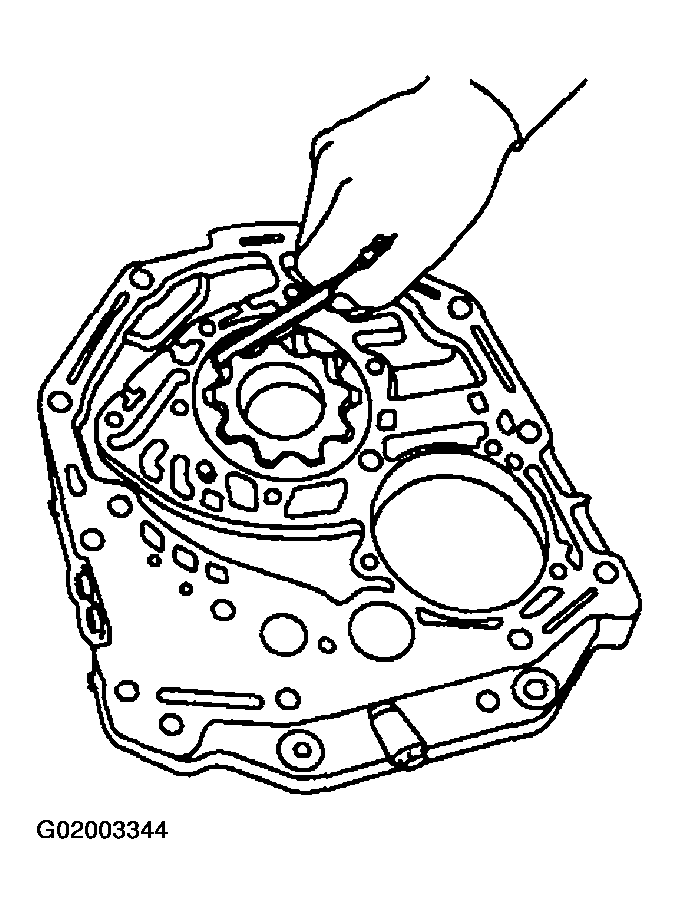

Install inner rotor and outer rotor to oil pump. With rotor gears facing each other, measure crest-to-crest clearance.
Tip clearance: 0.02 - 0.15 mm (0.0008 - 0.0059 in)
- Side clearance

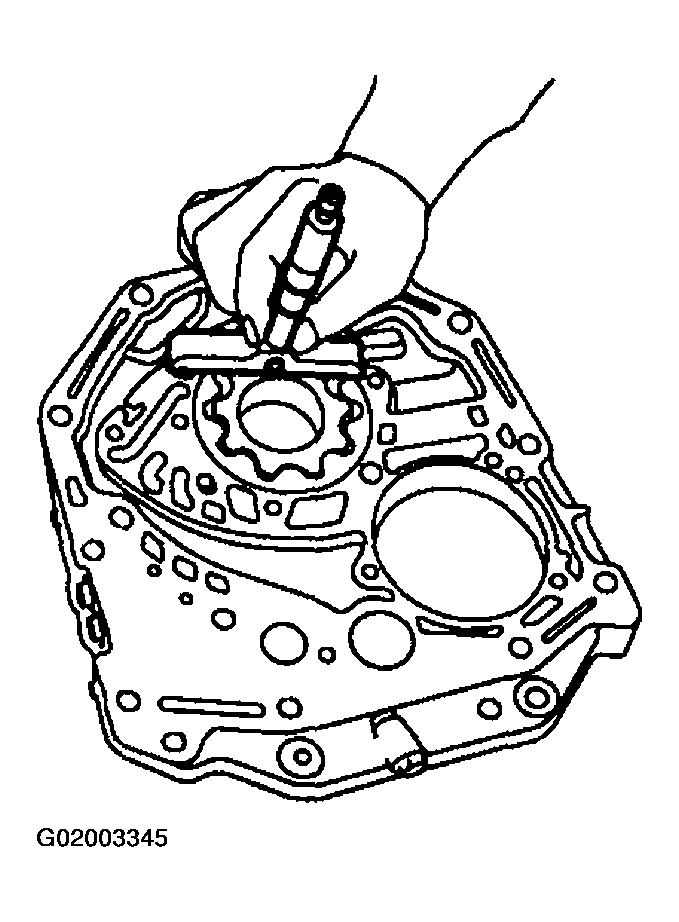

Set a depth gauge to oil pump housing, then measure oil pump housing-to-rotor clearances.
Side clearance: 0.02 - 0.04 mm (0.0008 - 0.0016 in)
- If depth and/or side clearances are outside specifications, replace rotor assembly.
