Oil Pump Assembly: Assembly

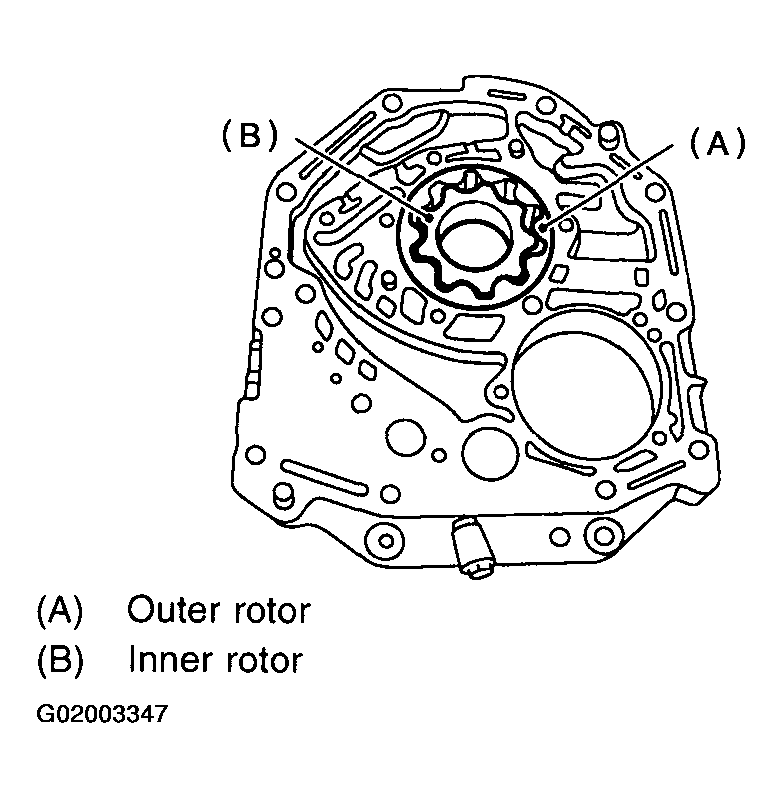

- Install oil pump rotor assembly to oil pump housing.

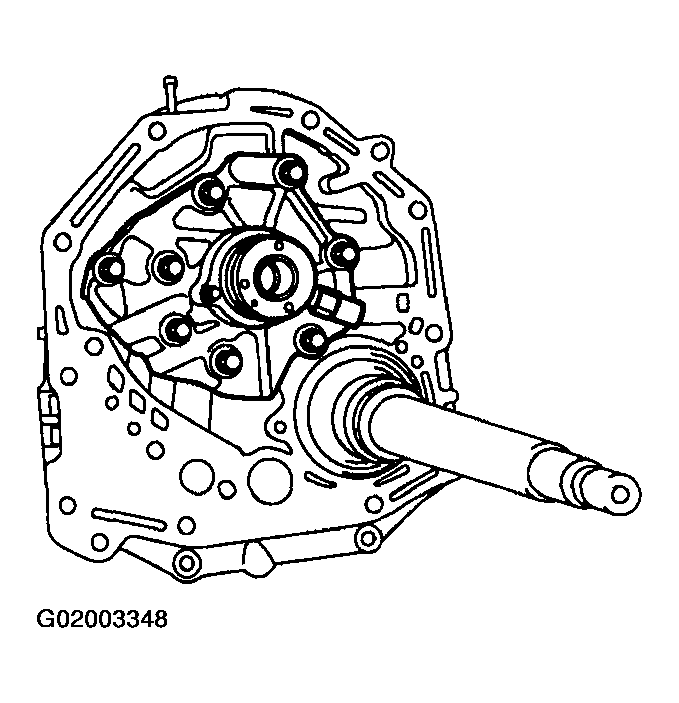

- Install the oil pump cover.
Tightening torque: 25+/-2 N.m (2.5+/-0.2 kg-m, 18.1+/-1.4 ft-lb)
NOTE:- Align both pivots with the pivot holes of the cover, and install the cover being careful not to apply undue force to the pivots.
- After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.

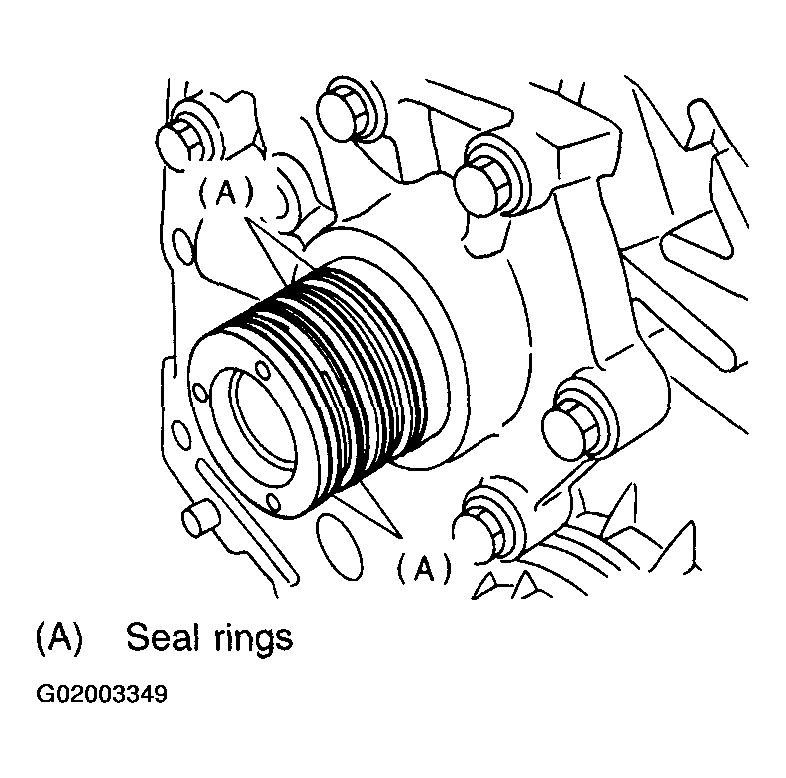

- Install the oil seal retainer and seal rings. After adjusting the drive pinion backlash and tooth contact.
