2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Differential Case Assembly: Disassembly

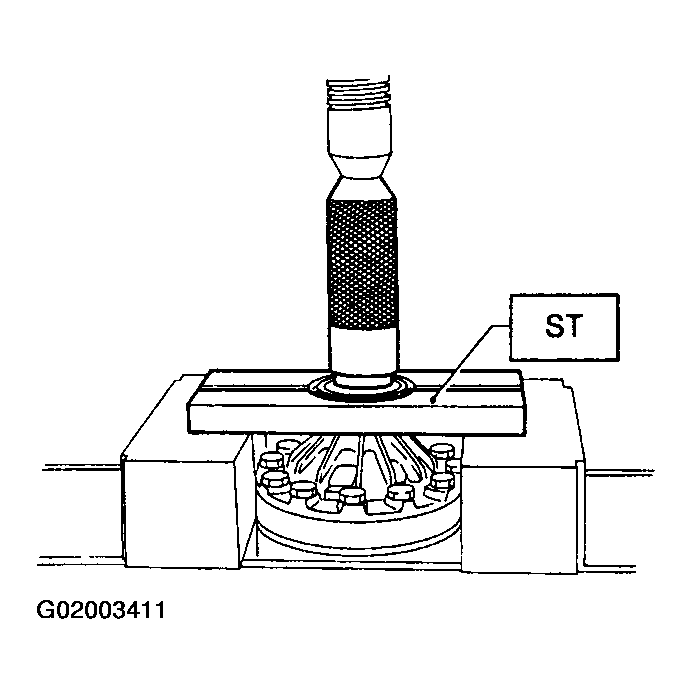

- Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

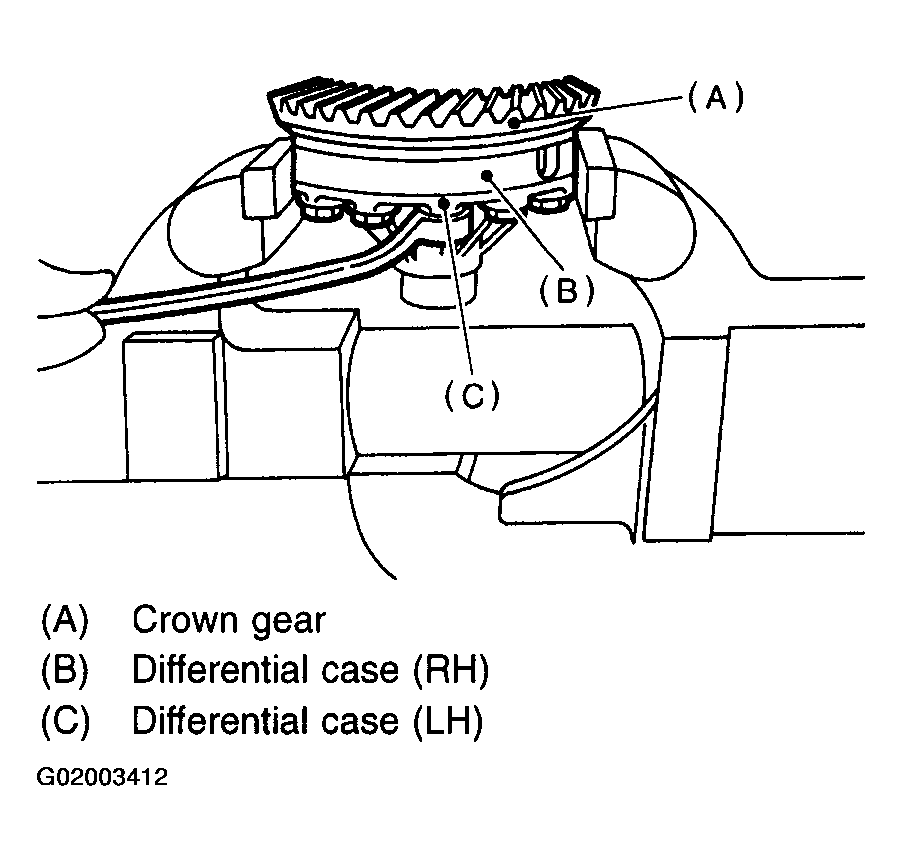

- Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

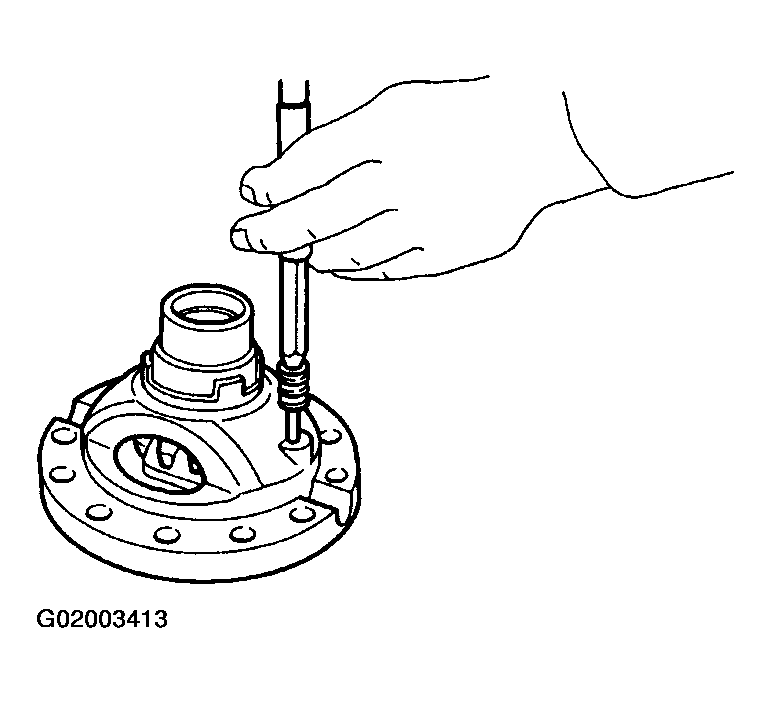

- Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.
