2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Disassembly

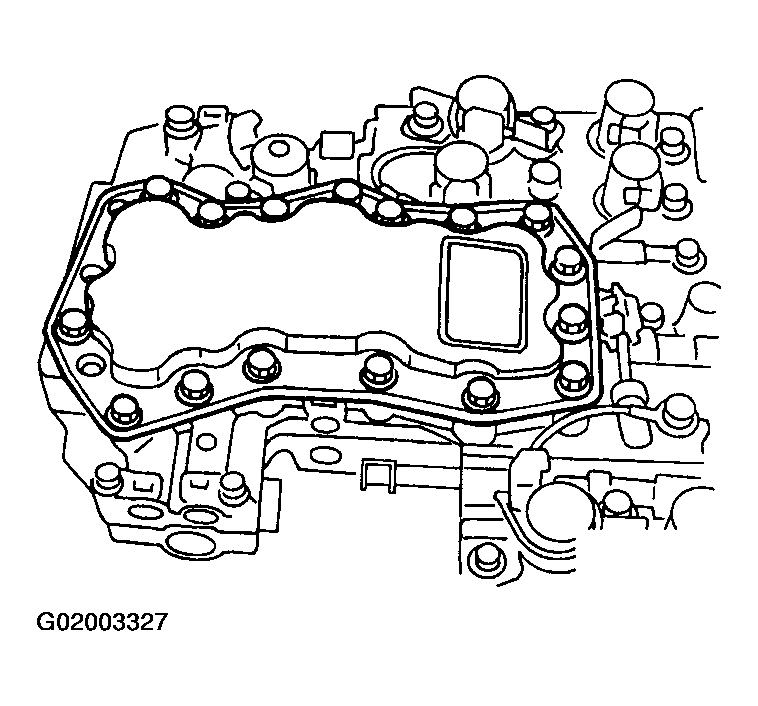

- Remove oil strainer from lower control valve body.

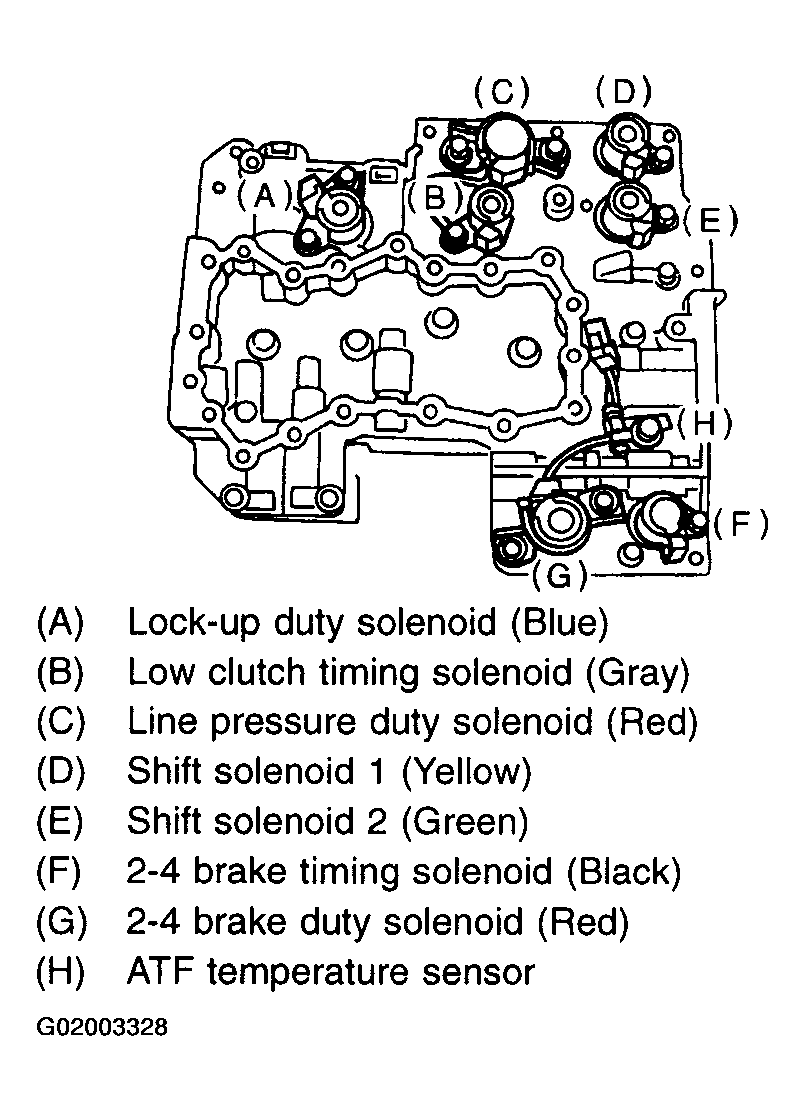

- Remove the duty solenoids, solenoids and sensor from the lower valve body.

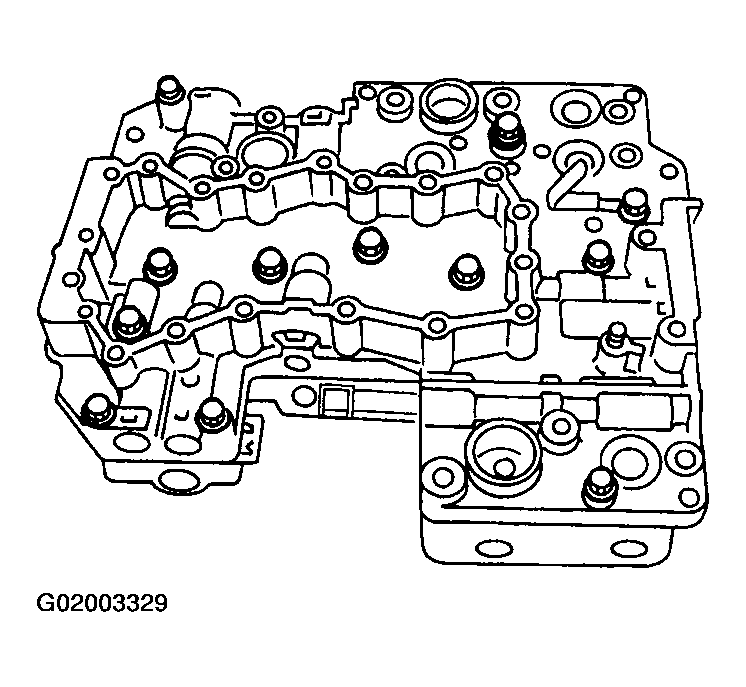

- Remove the upper-lower valve body tightening bolts.
- Separate the control valve body.CAUTION:
- Do not lose the ten steel balls contained in the upper valve body and middle valve body.
- Do not lose strainers contained in the lower valve body.
