Throttle Position Sensor: Adjustment
- Turn ignition switch to OFF.

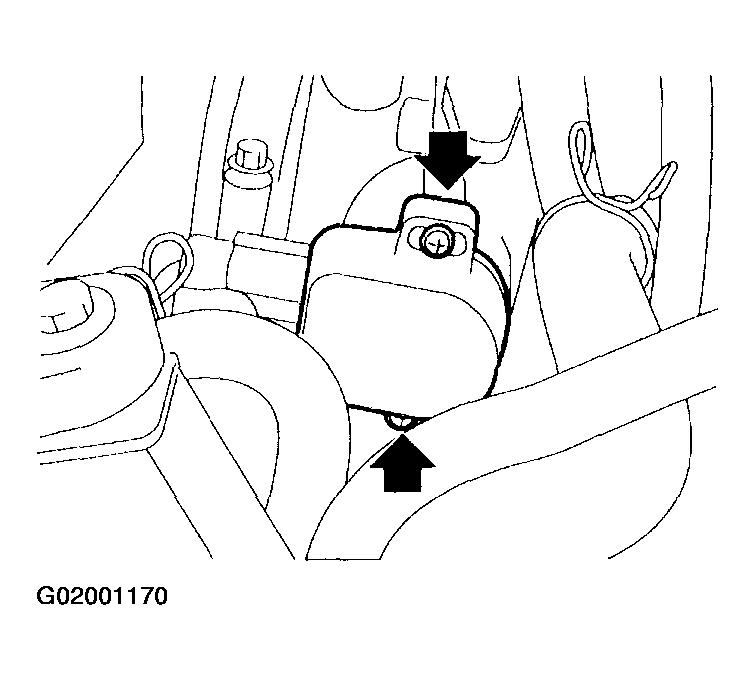

- Loosen throttle position sensor holding screws.

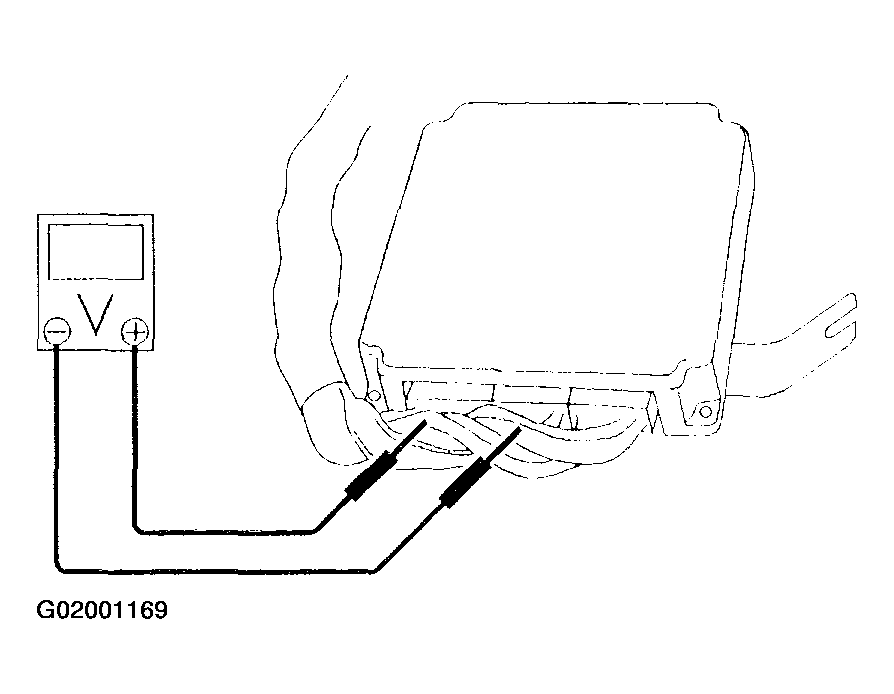

- When using voltage meter;
- Take out ECM.
- Turn ignition switch to ON.
- Adjust throttle position sensor to the proper position to allow the voltage signal to ECM to be in specification.
Connector & terminal / Specified voltage
- (B136) No. 15 - (B136) No. 17/0.45 - 0.55 V
- Fully Closed.

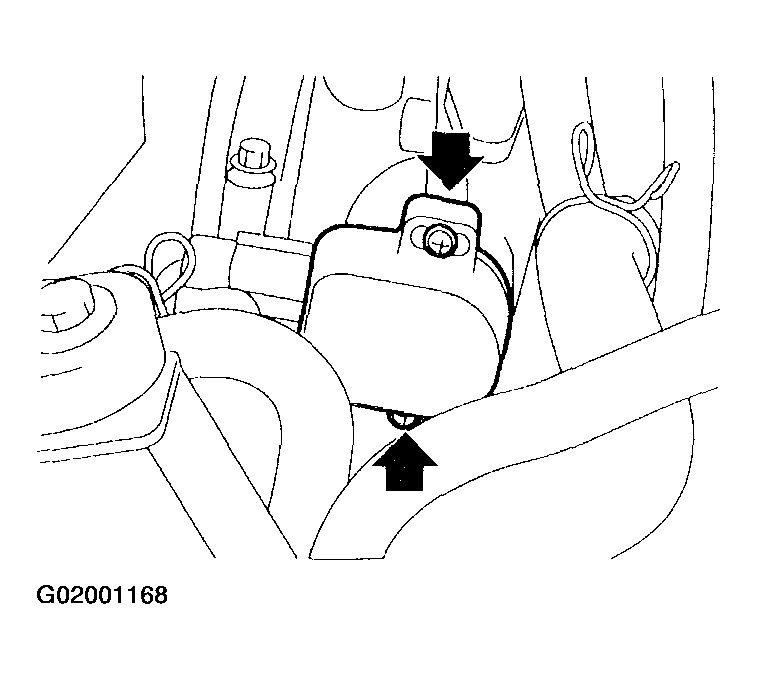

- Tighten throttle position sensor holding screws.
Tightening torque:
- 2.2+/-0.2 N.m (0.22+/-0.02 kg-m, 1.6+/-0.1 ft-lb)
- When using Subaru Select Monitor;
- Turn ignition switch to OFF.
- Loosen throttle position sensor holding screws.
