2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE
Removal And Installation

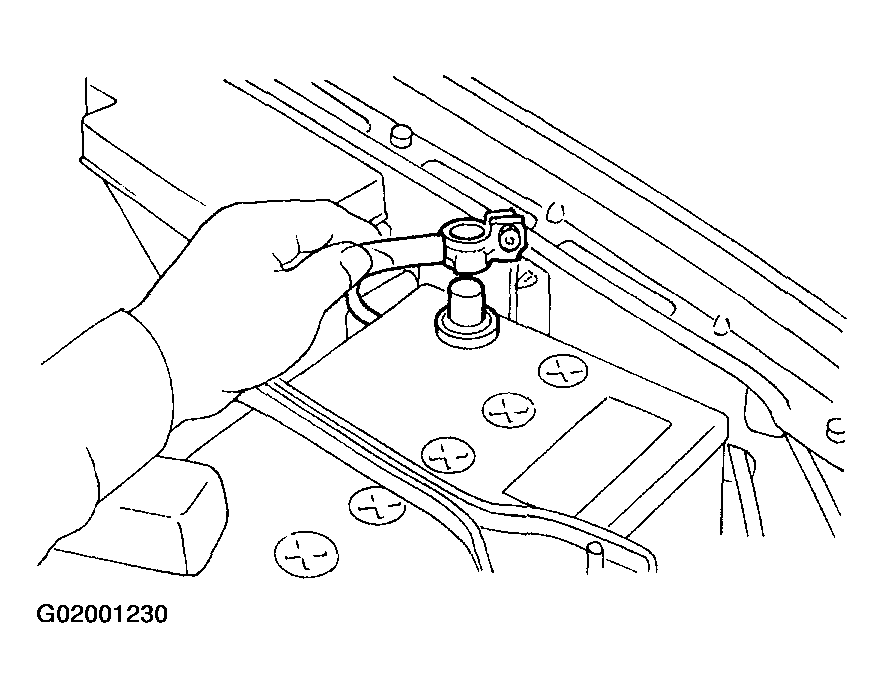

- Disconnect battery ground cable.

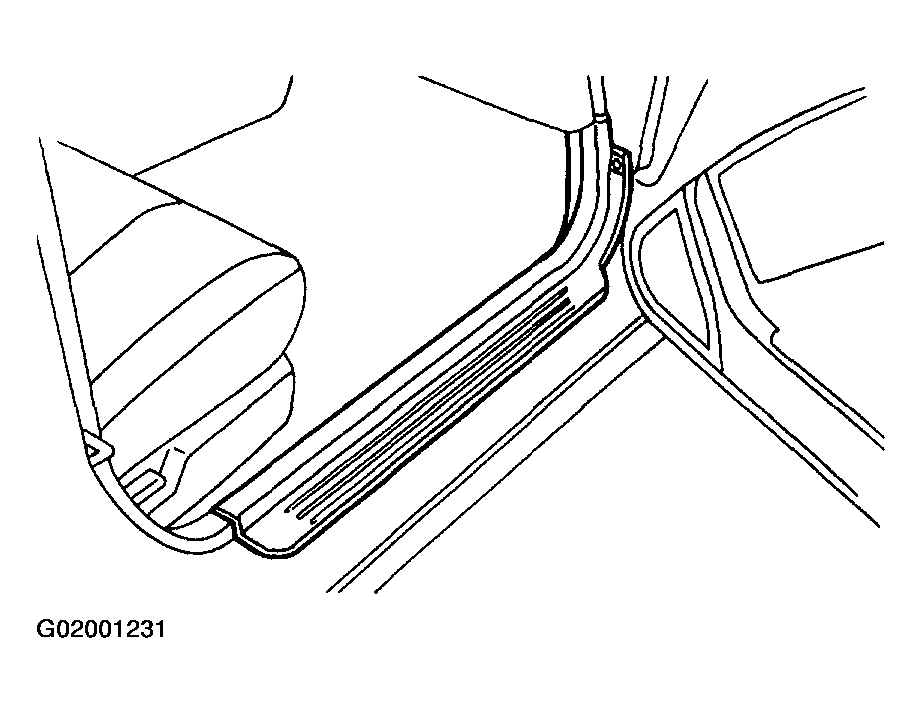

- Remove side sill front cover.
- Detach floor mat of front passenger seat.

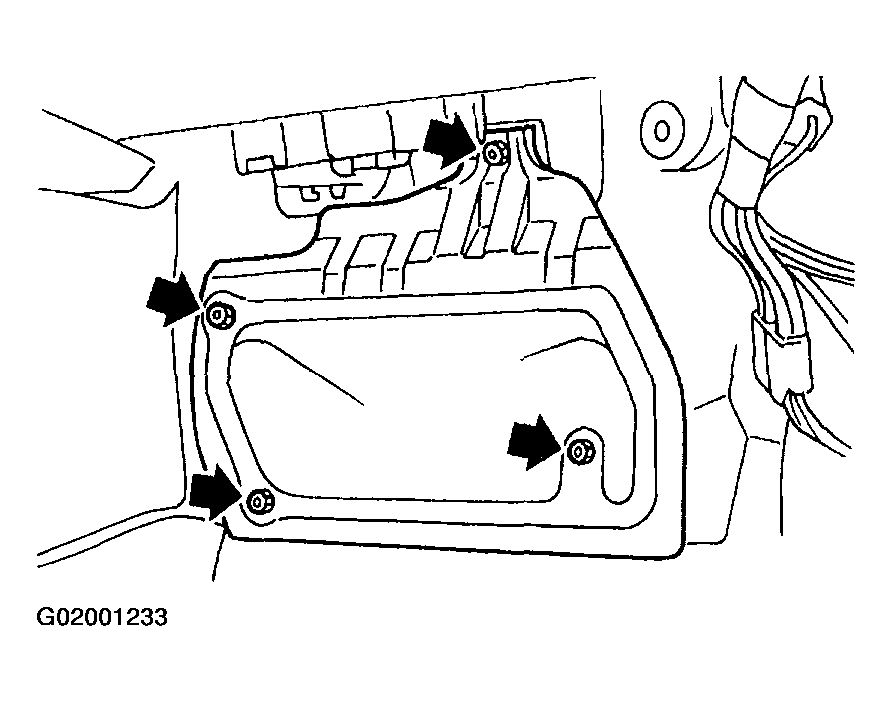

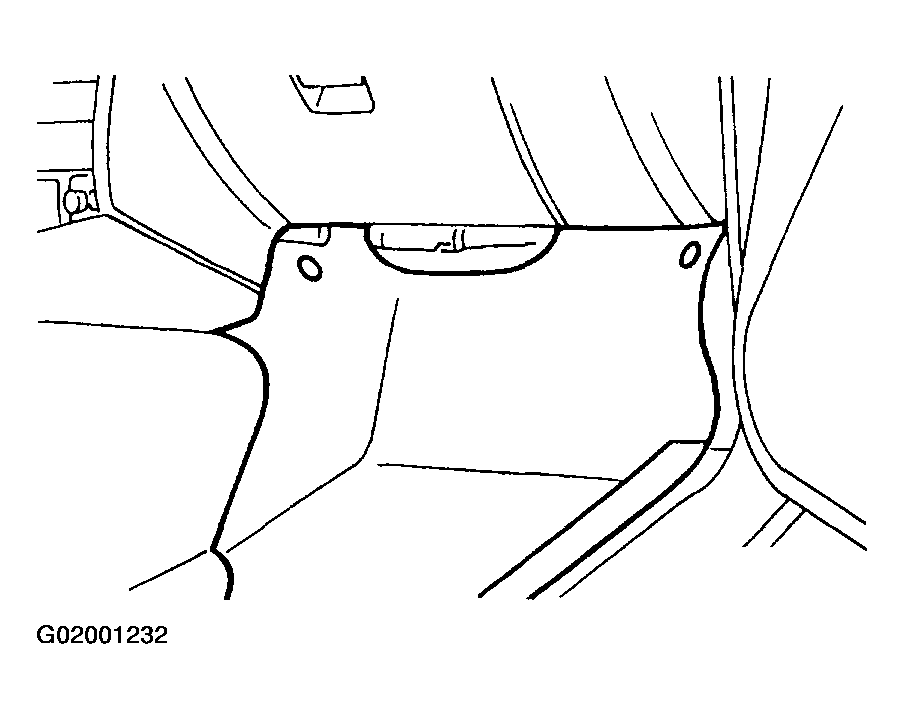

- Remove protect cover.

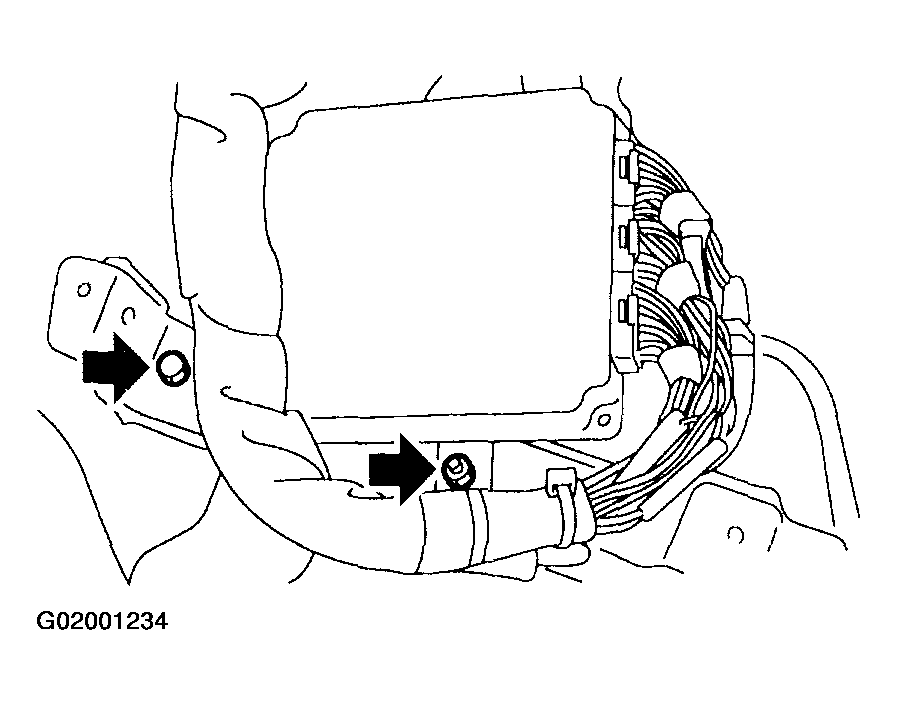

- Remove nuts which hold ECM to bracket.

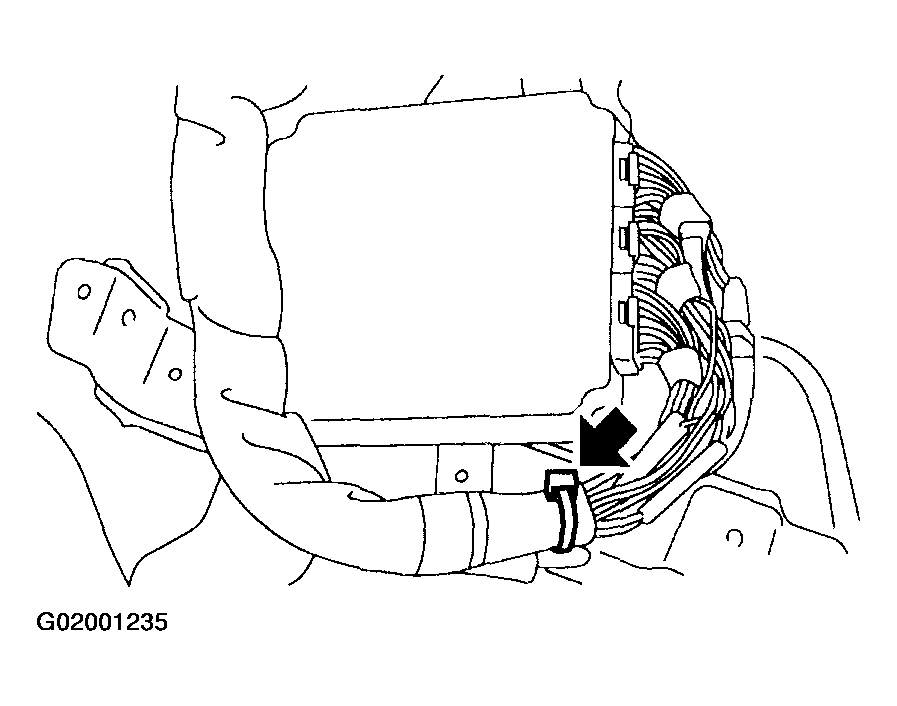

- Remove clip from bracket.

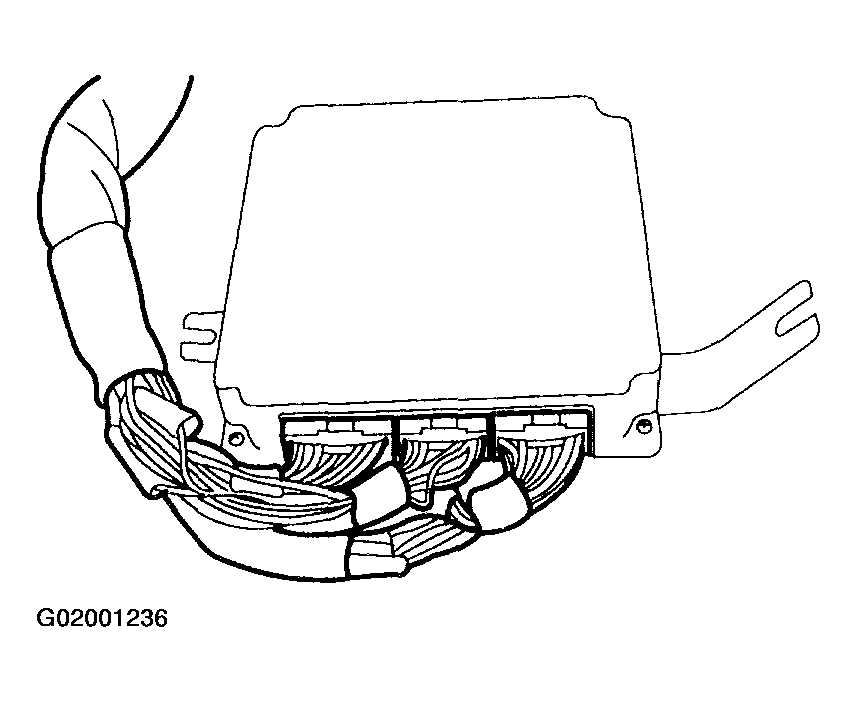

- Disconnect ECM connectors.

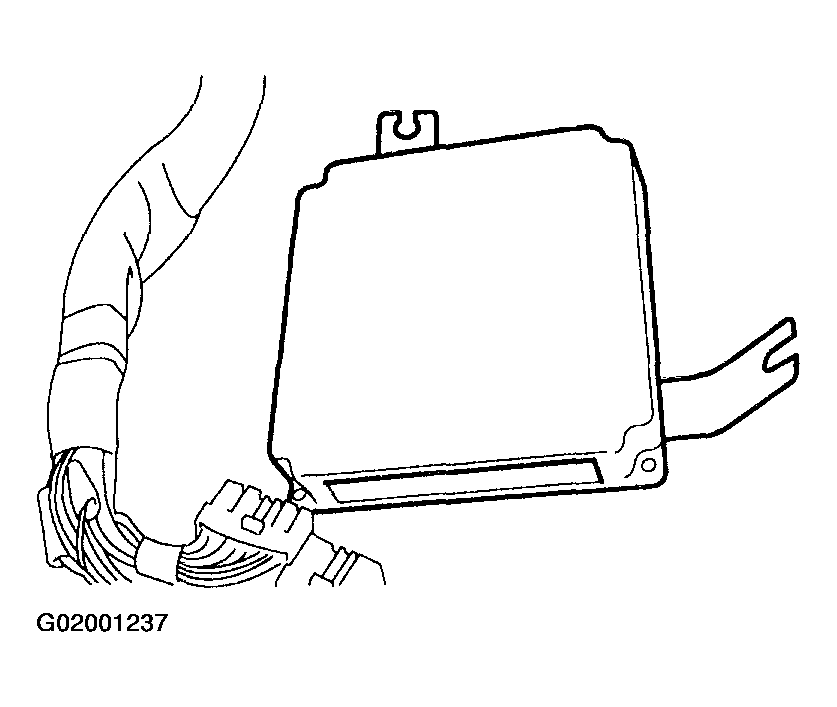

- Take out ECM.
- Install in the reverse order of removal.CAUTION: When replacing ECM, be careful not to use the wrong specification. ECM to avoid any damage to the fuel injection system.
