Select Lever: Installation

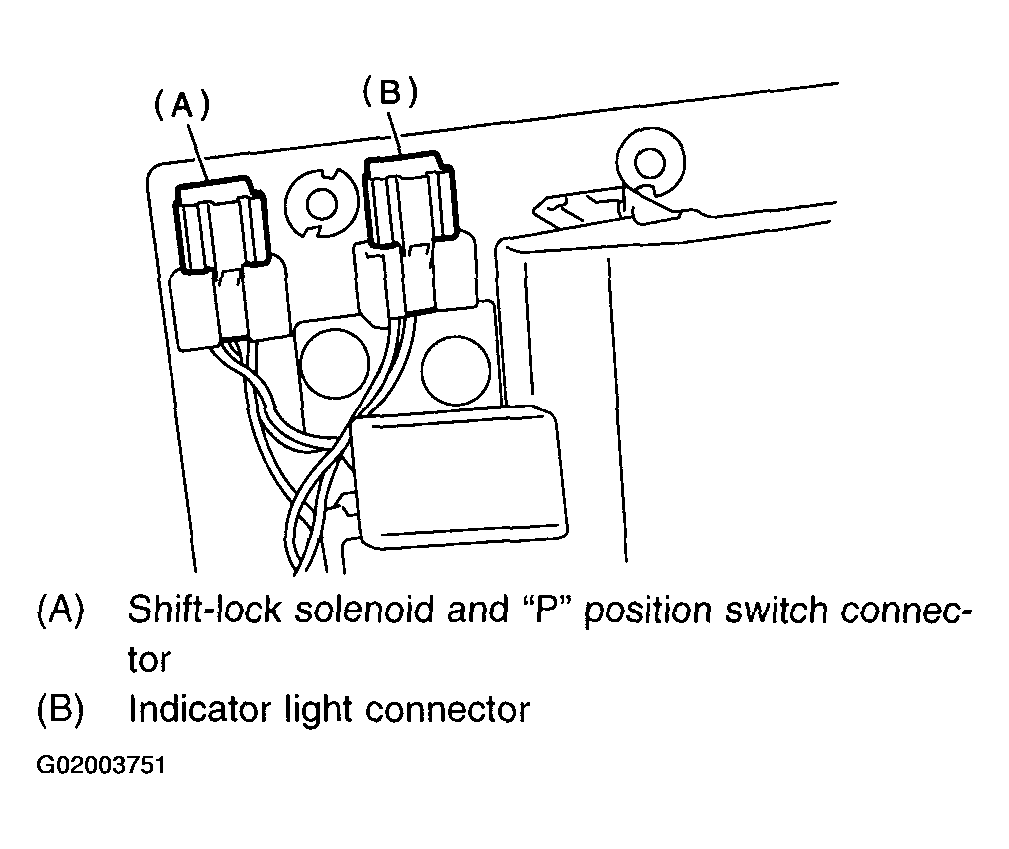

- Install the select indicator light, shift-lock solenoid and "P" position switch connectors.

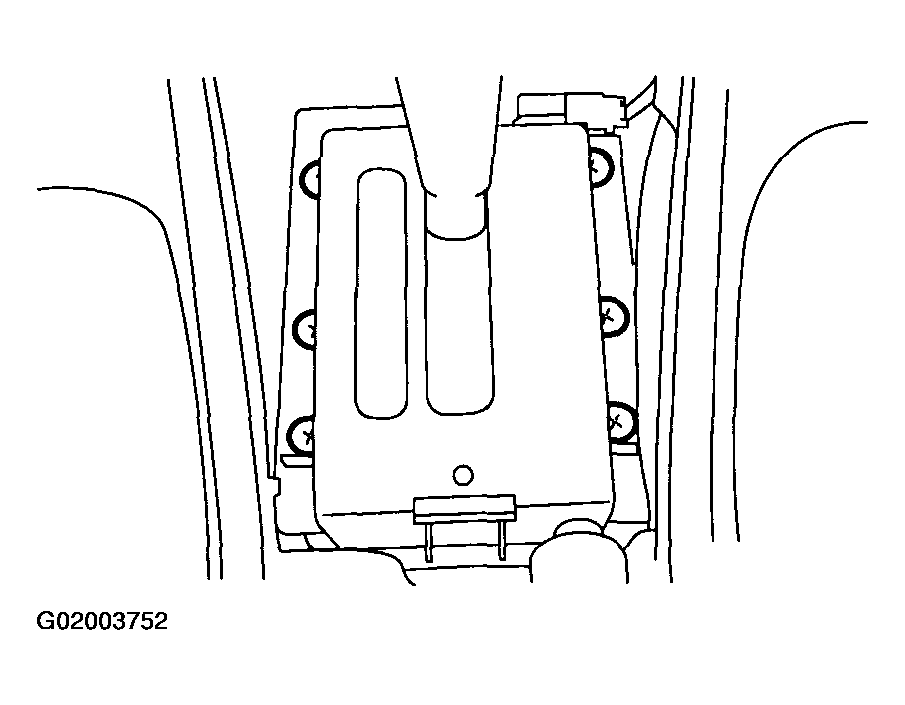

- Install the select lever to vehicle.NOTE: Do not allow the select lever to catch on the wiring harnesses, etc. during installation.
Tightening torque: 13+/-3 N.m (1.3+/-0.3 kg-m, 9.4+/-2.2 ft-lb)
- Install front cover, for reference, see FRONT COVER - CENTER CONSOLE .
- Move the select lever to the "N" position, then adjust the select cable position. See SELECT CABLE .

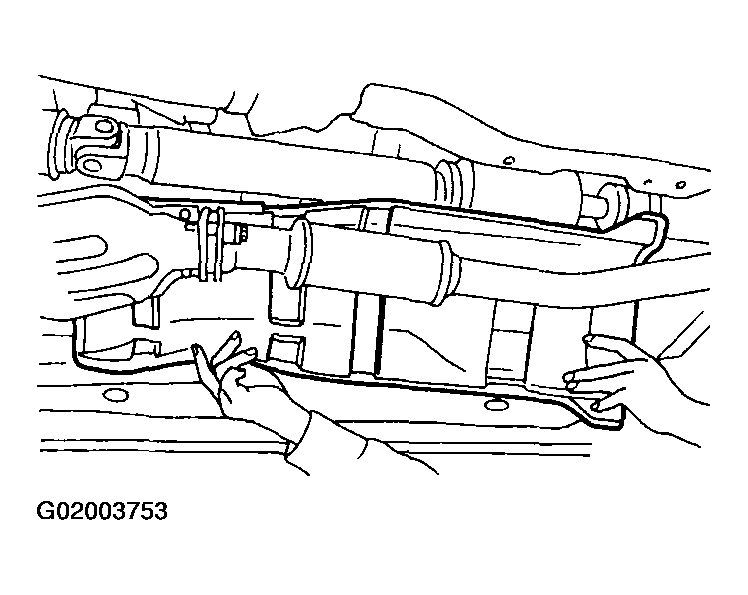

- Install heat shield cover.
- Check the following items.
- The engine starts operating when select lever is in position "P" or "N", but not in other positions.
- The back-up light is lit when the select lever is in position "R", but not in other positions.
- Check select lever operation.

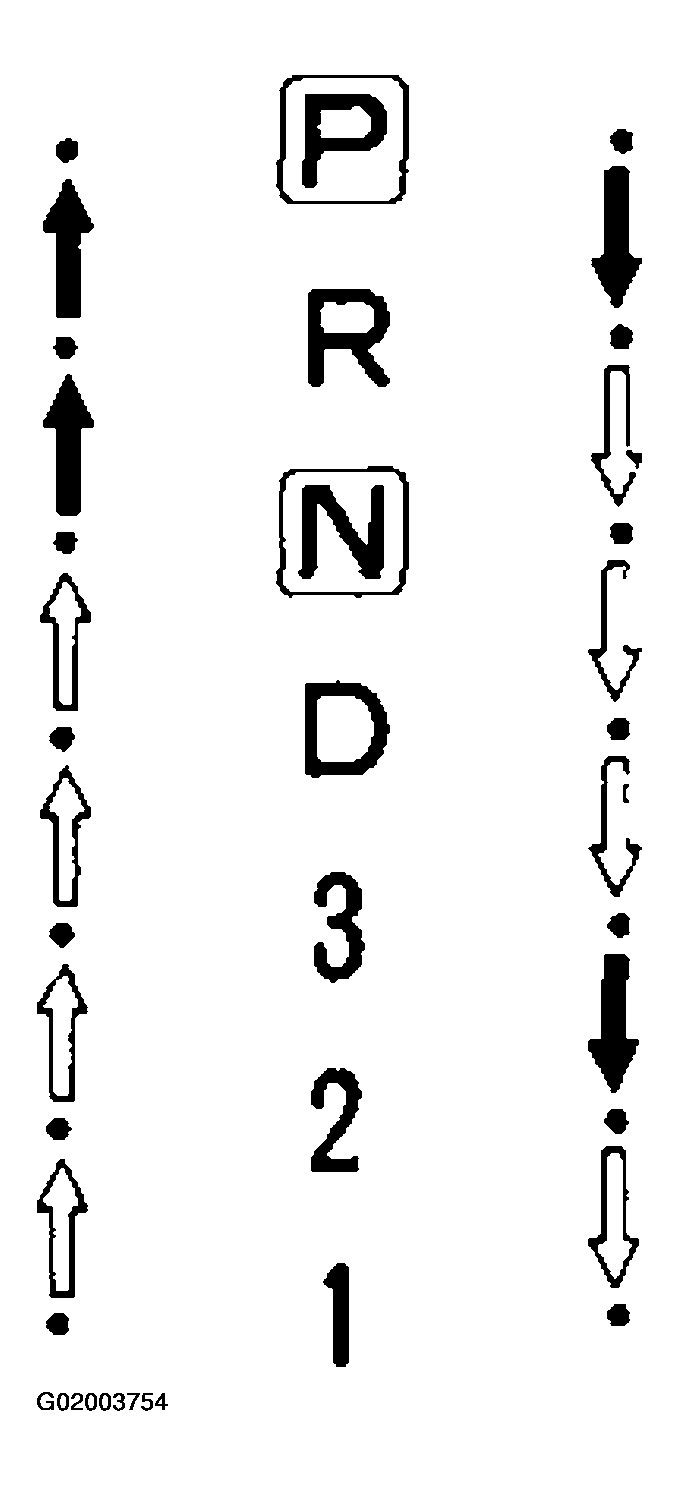

WARNING: Stop the engine while checking operation of select lever.- Check that select lever does not move from "N" to "R" without pushing the button.
- Check that select lever does not move from "R" to "P" without pushing the button.
- Check that select lever does not move from "P" to "R" without pushing the button.
- Check that select lever does not move from "3" to "2" without pushing the button.
- Check shift-lock system.
- Ensure ignition switch rotates from "ACC" to "LOCK" when the select lever is set at "P". Also check that ignition key can be removed only from the "LOCK" position.
- Ensure select lever moves from "P" to any other position when the brake pedal is depressed with ignition key set at "ON" or "START".
