2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Gear Shift Lever: Disassembly

Disassemble locking wire.

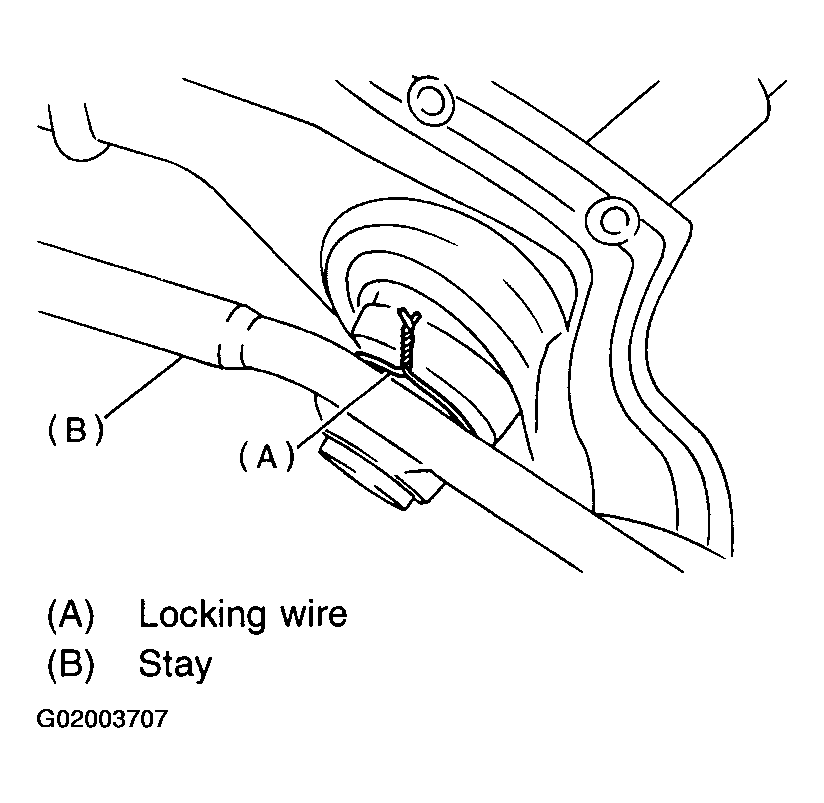

Fig 1: Removing Locking Wire
Remove rod from gear shift lever.

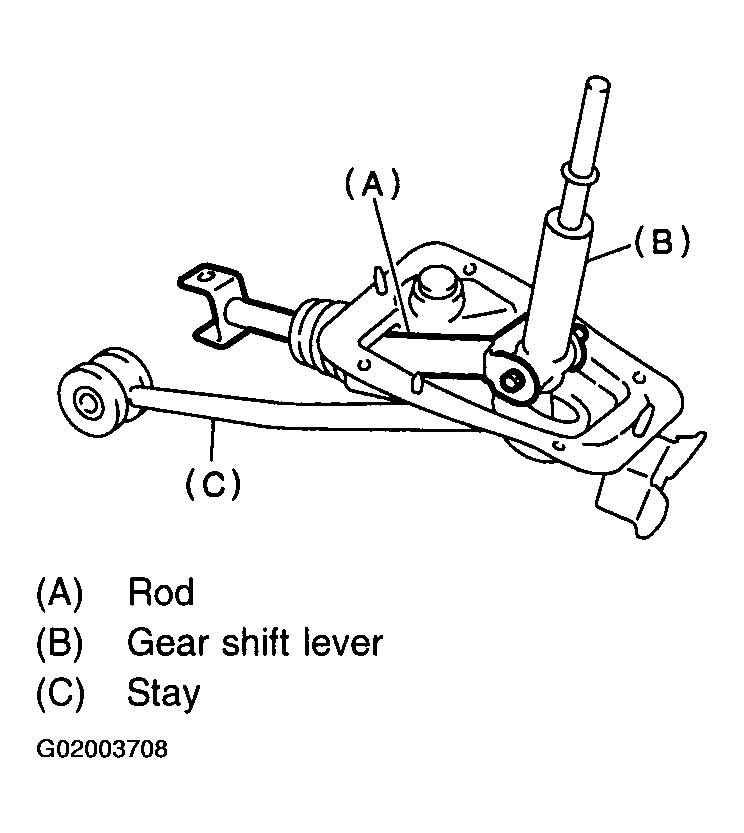

Fig 2: Removing Rod From Gear Shift Lever
Remove snap ring from bush D, then disconnect stay.

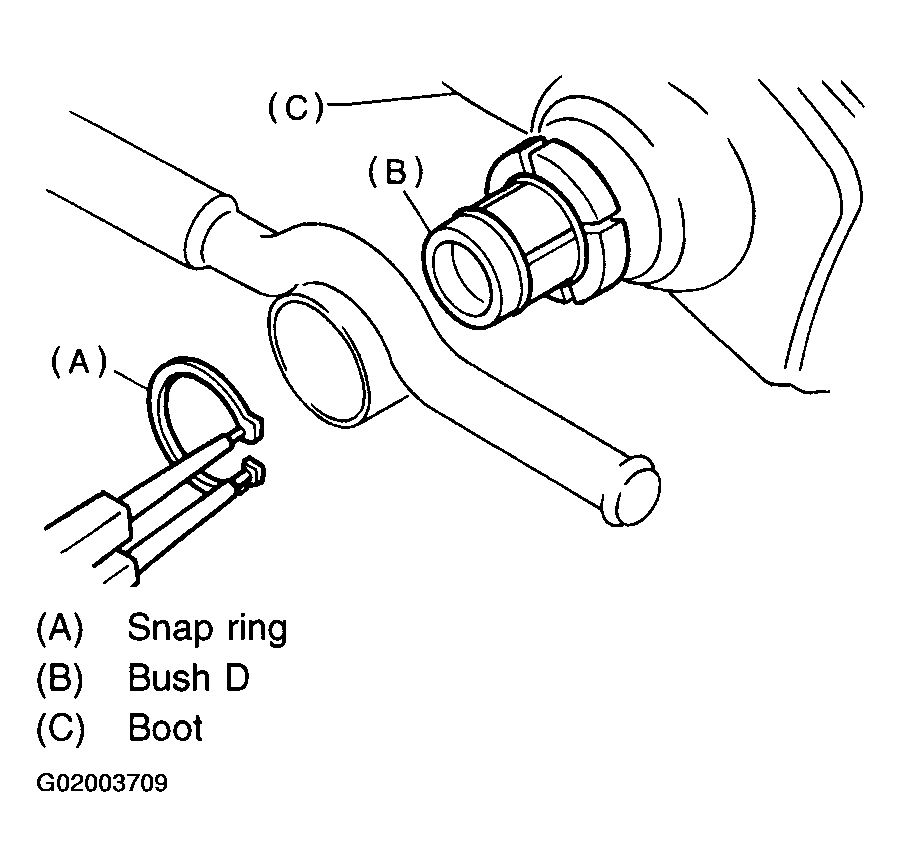

Fig 3: Removing Snap Ring From Bush "D"
Remove boot from gear shift lever.
Remove bush and cushion rubber from stay.

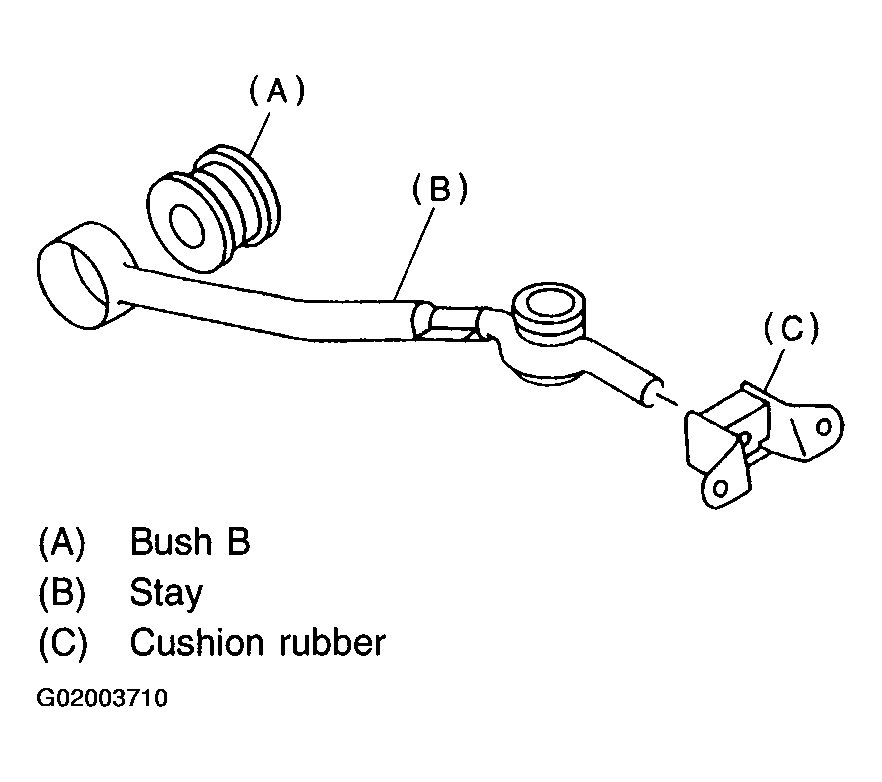

Fig 4: Removing Bush & Cushion Rubber From Stay
Remove O-ring, then disconnect bush D.

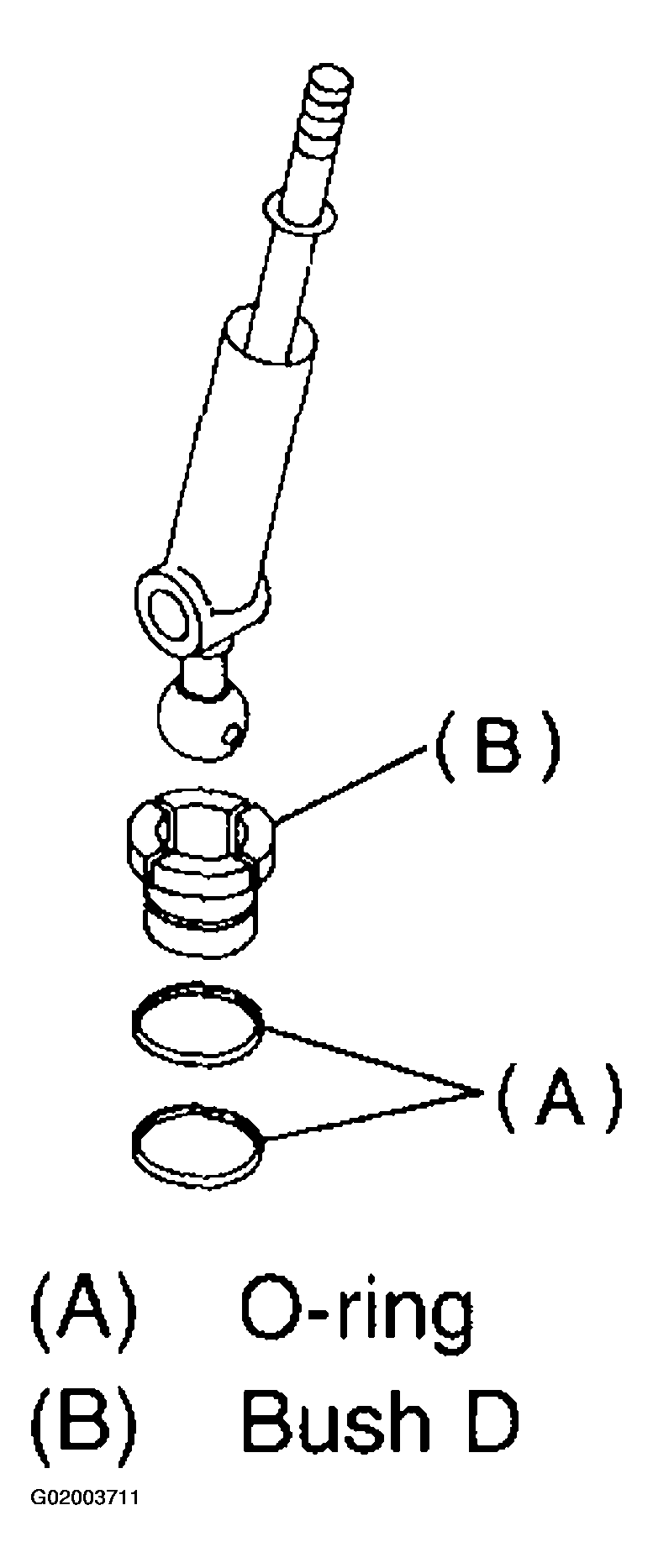

Fig 5: Removing O-Ring & Disconnect Bush "D"
Draw out straight pin, then remove bush C from gear shift lever.

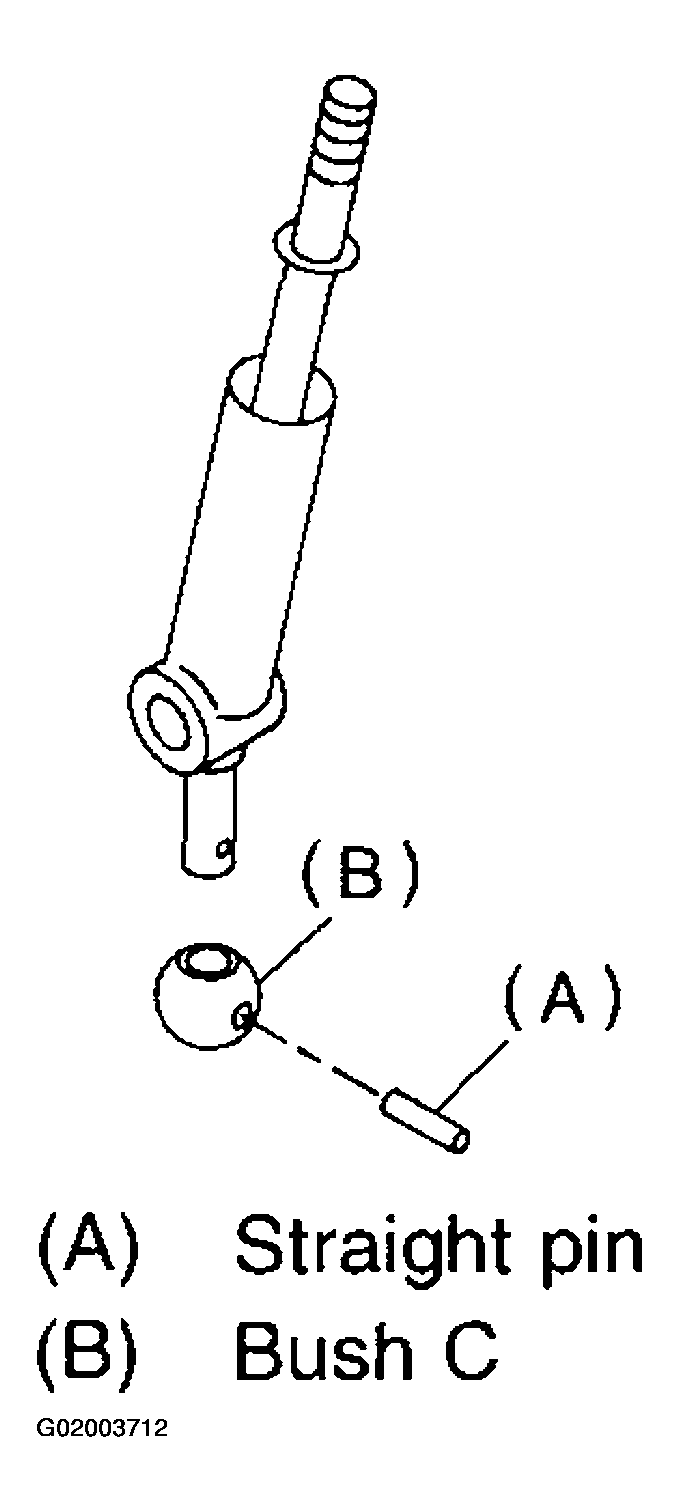

Fig 6: Removing Straight Pin & Removing Bush "C"
