2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Select Lever

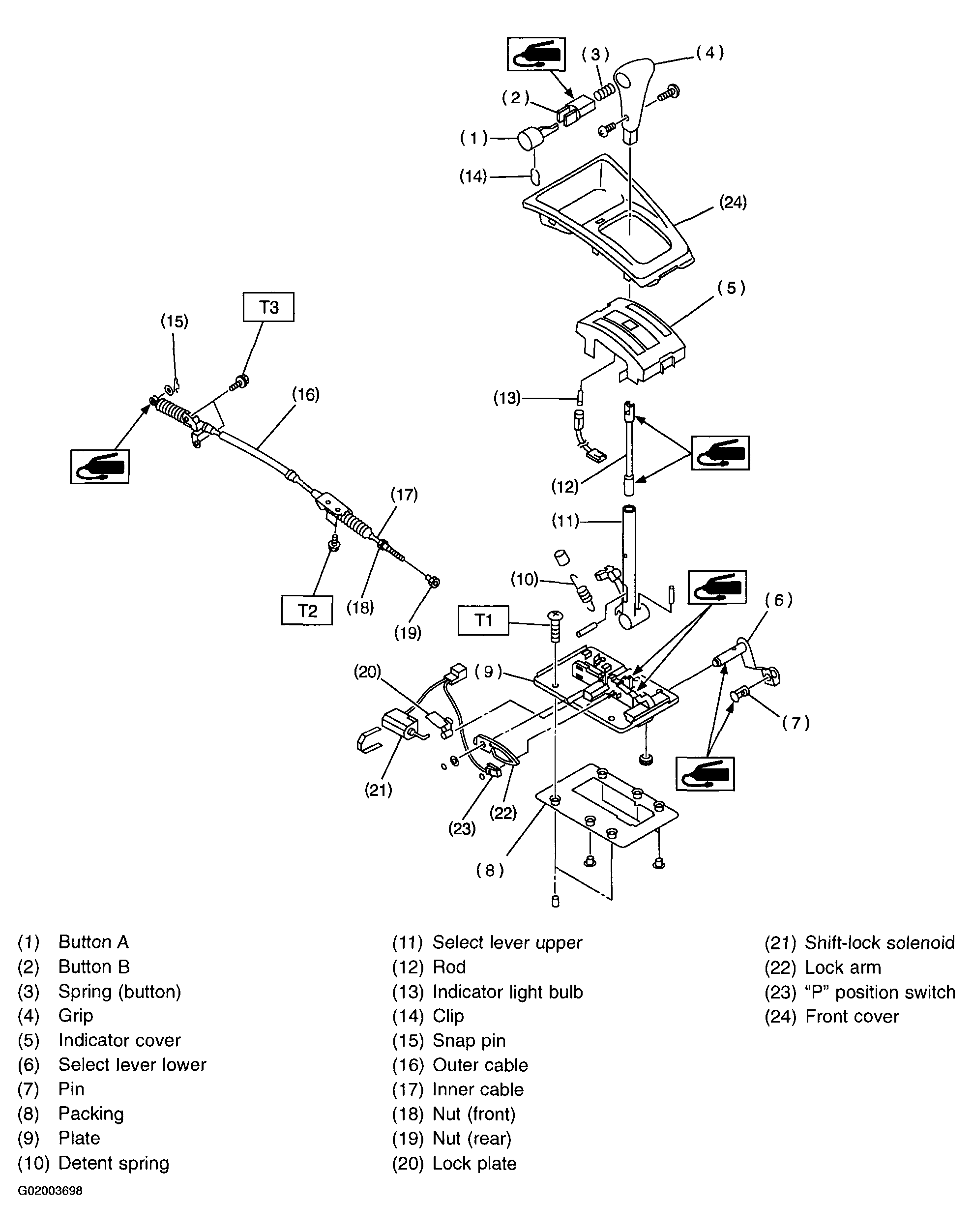

Fig 1: Identifying Select Lever Components
G02003698

Tightening torque: N.m (kg-m, ft-lb)Β

T1:Β  4.5+/-1.5 (0.46+/-0.15, 3.3+/-1.1)

T2:Β  18+/-5 (1.8+/-0.5, 13.0+/-3.6)

T3:Β  32+/-10 (3.3+/-1.0, 24+/-7)
