2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Gear Shift Lever

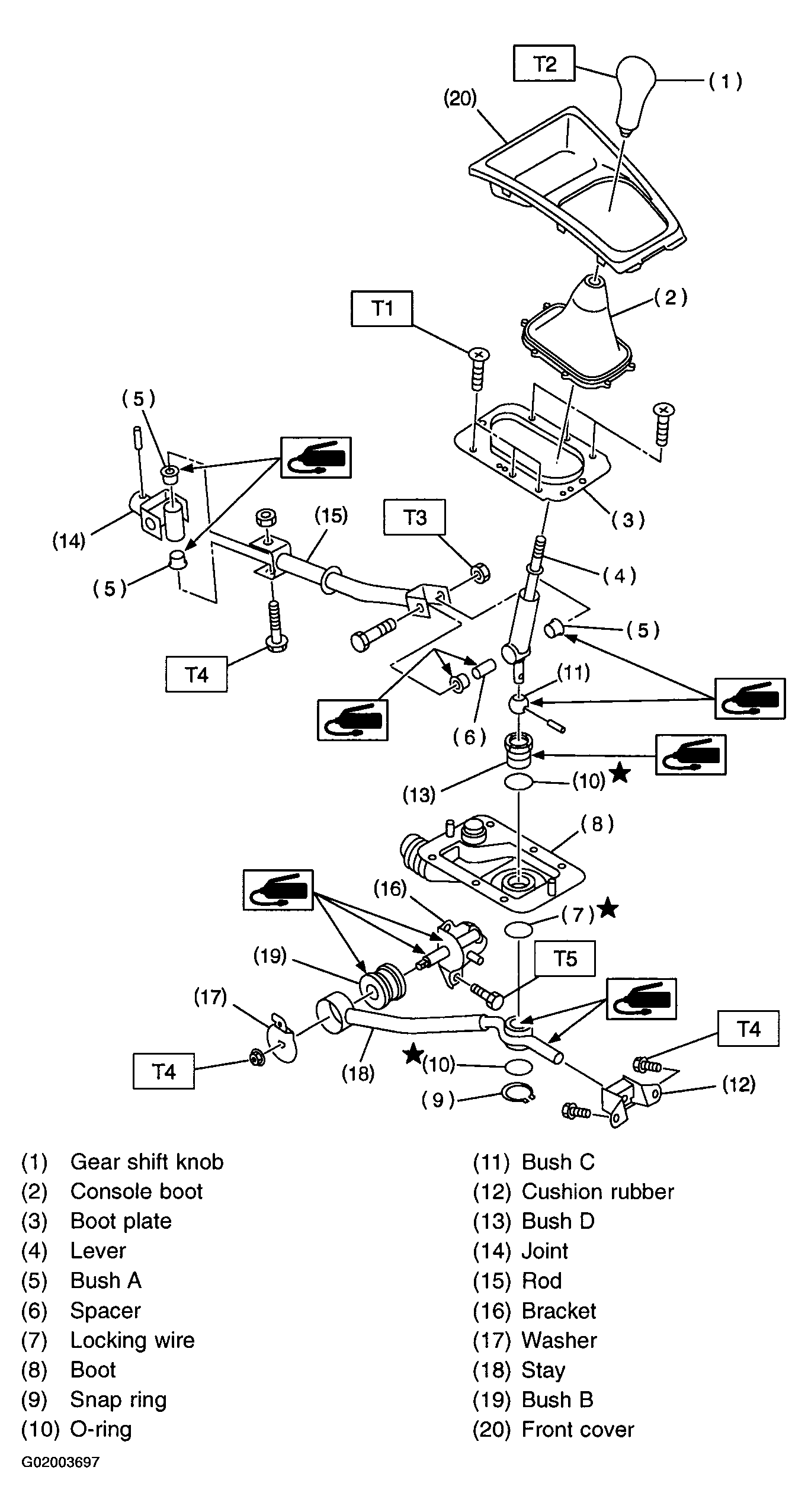

Fig 1: Identifying Gear Shift Lever Components

Tightening torque: N.m (kg-m, ft-lb)

T1: 4.5+/-1.5 (0.46+/-0.15, 3.3+/-1.1)

T2: 5 (0.51, 3.7)

T3: 12+/-3 (1.2+/-0.3, 8.7+/-2.2)

T4: 18+/-5 (1.8+/-0.5, 13.0+/-3.6)

T5: 24.5+/-2 (2.50+/-0.20, 18.07+/-1.48)
