Base Pattern To Power Pattern

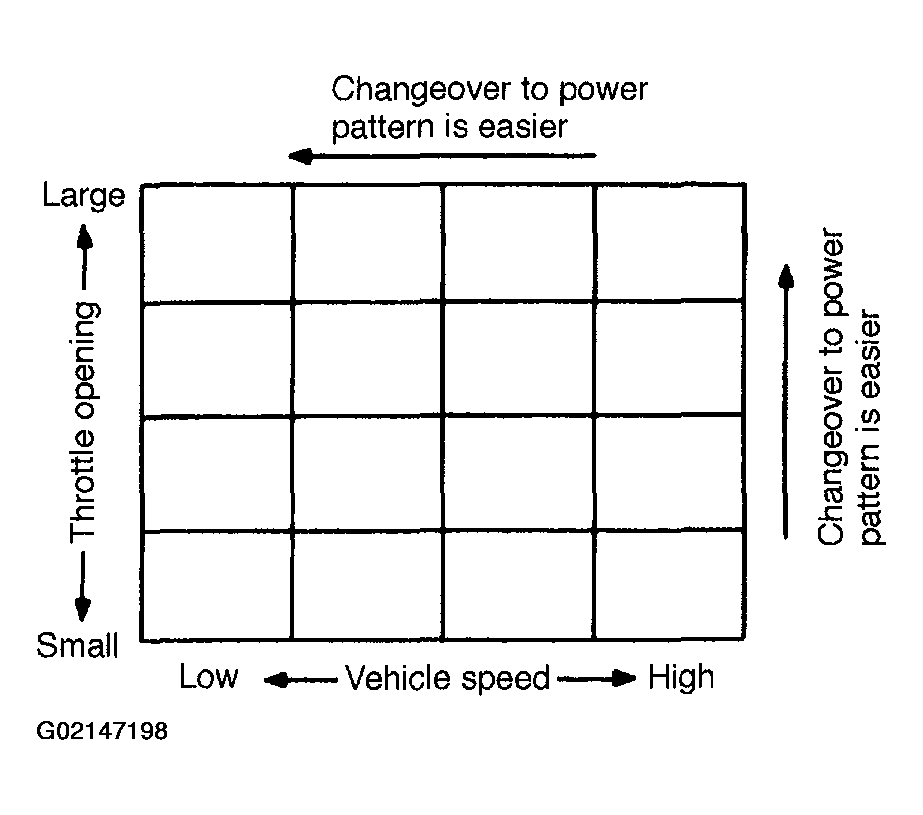

Depending on throttle opening and vehicle speed, 16 areas as shown in the figure are set. Accelerator depression speed for pattern changeover is set for each area.

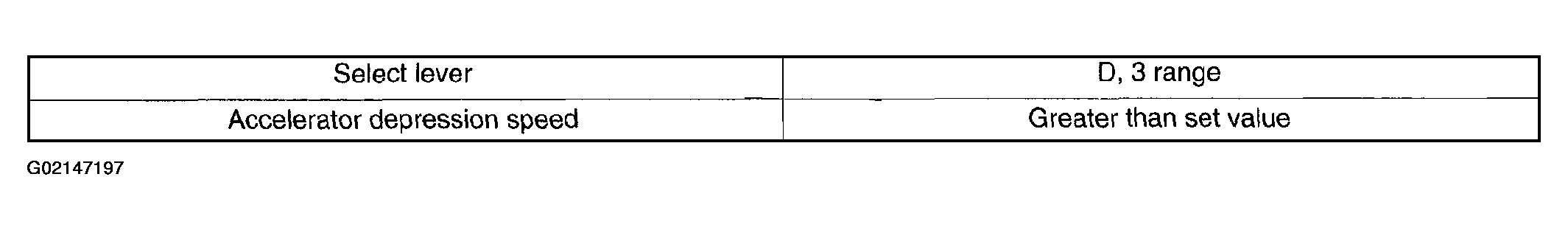

When the accelerator depression speed exceeds this set value, the pattern changes from base to power.
