2001 Subaru Forester BaseFACTORY OEM SERVICE PROCEDURE

Trouble Code 41 Abs Control Module Malfunction - Abs Control Module And Hydraulic Control Unit Malfunction

DIAGNOSIS:

  • Faulty ABSCM & H/U

TROUBLE SYMPTOM:

  • ABS does not operate.

WIRING DIAGRAM:

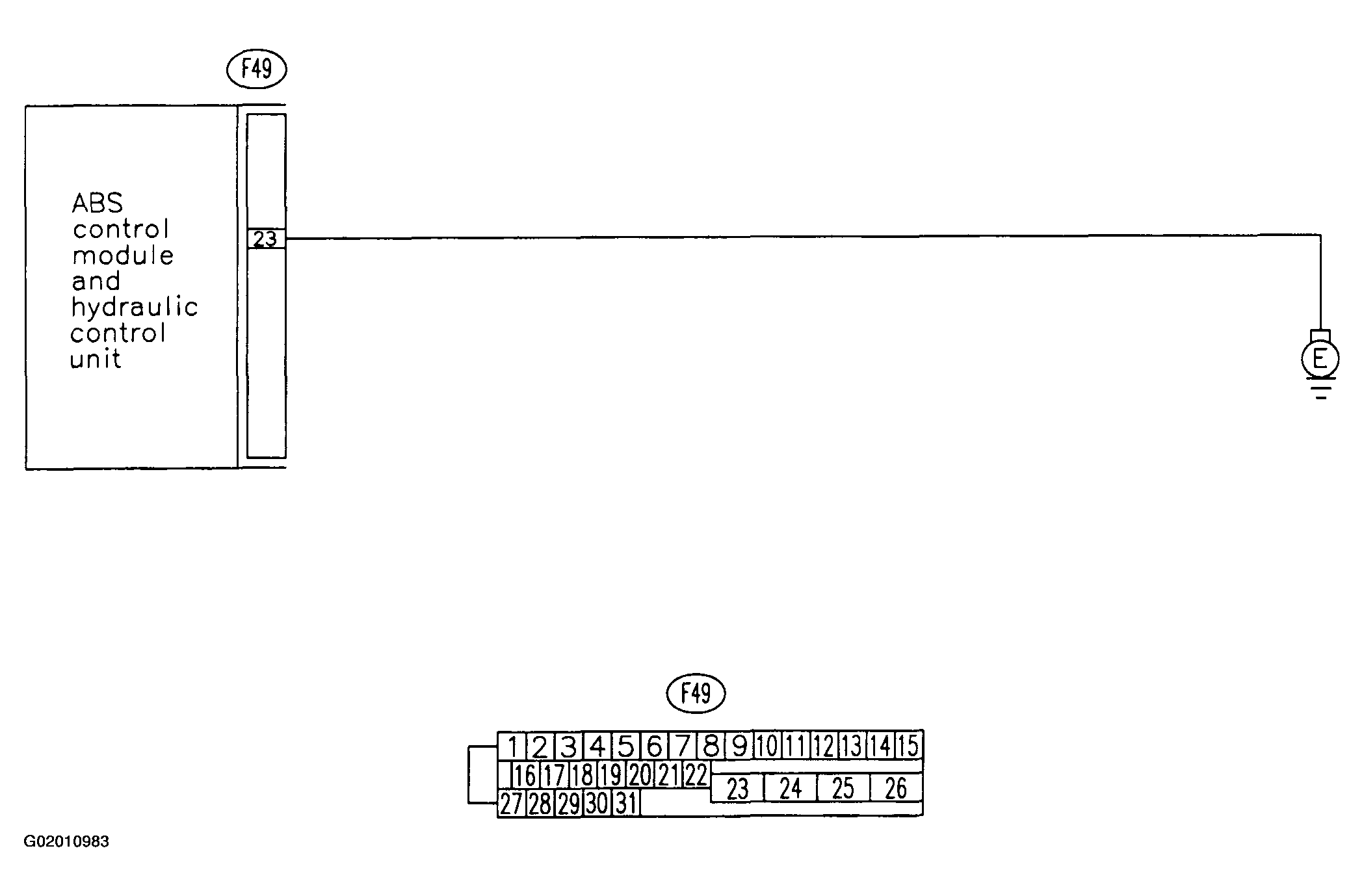

Fig 1: Wiring Diagram
G02010983
  1. 10V1: CHECK GROUND CIRCUIT OF ABSCM & H/U
    1. Turn ignition switch to OFF.
    2. Disconnect connector from ABSCM & H/U.
    3. Measure resistance between ABSCM & H/U and chassis ground.

    Connector & terminal

    1. (F49) No. 23 (+) - Chassis ground:

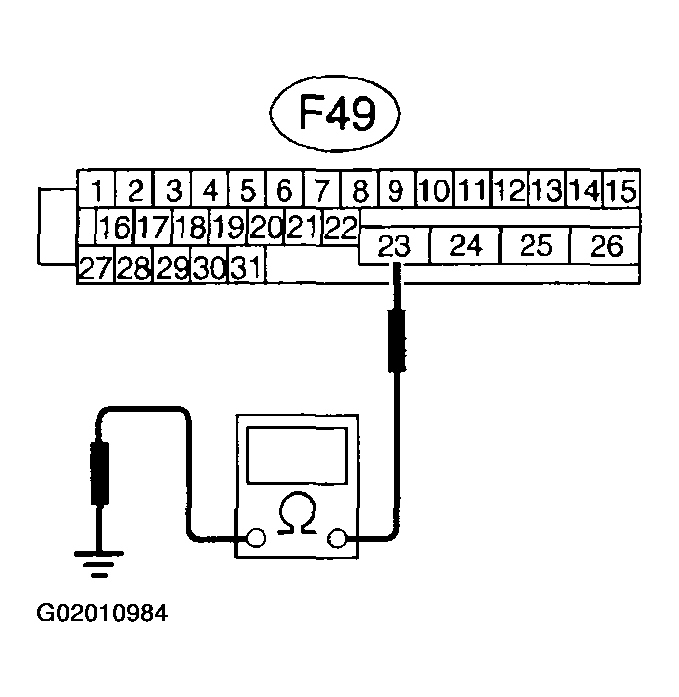

    Fig 2: Measuring Resistance Between ABSCM & H/U & Chassis Ground
    G02010984

    CHECK: Is the resistance less than 0.5 ohm ?

    1. YES:  Go to step 10V2.
    2. NO:  Repair ABSCM & H/U ground harness.
  2. 10V2: CHECK POOR CONTACT IN CONNECTORS.

    CHECK: Is there poor contact in connectors between battery, ignition switch and ABSCM & H/U?

    1. YES:  Repair connector.
    2. NO:  Go to step 10V3.
  3. 10V3: CHECK SOURCES OF SIGNAL NOISE.

    CHECK: Is the car telephone or the wireless transmitter properly installed?

    1. YES:  Go to step 10V4.
    2. NO:  Properly install the car telephone or the wireless transmitter.
  4. 10V4: CHECK SOURCES OF SIGNAL NOISE.

    CHECK: Are noise sources (such as an antenna) installed near the sensor harness?

    1. YES:  Install the noise sources apart from the sensor harness.
    2. NO:  Go to step 10V5.
  5. 10V5: CHECK ABSCM & H/U.
    1. Turn ignition switch to OFF.
    2. Connect all connectors.
    3. Erase the memory.
    4. Perform inspection mode.
    5. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10V6.
  6. 10V6: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
