Toe-In Adjustment: Rear

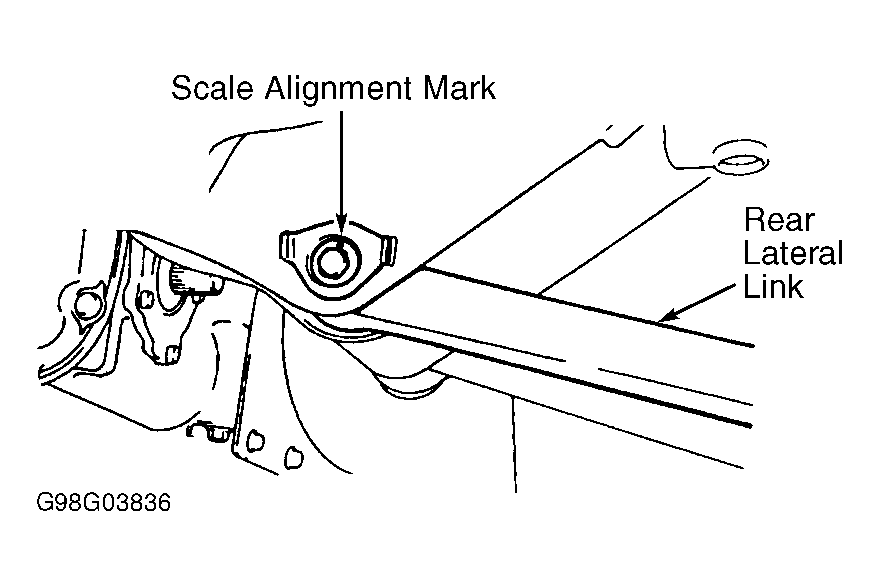

Loosen adjusting bolt for rear lateral link. See Fig 1 . Turn eccentric cam bolt head counterclockwise to change toe-out angle. Turn eccentric cam bolt head clockwise to change toe-in angle. Tighten adjusting bolt to specification.
