2000 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Fog Light Assembly: Removal: Outback
WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

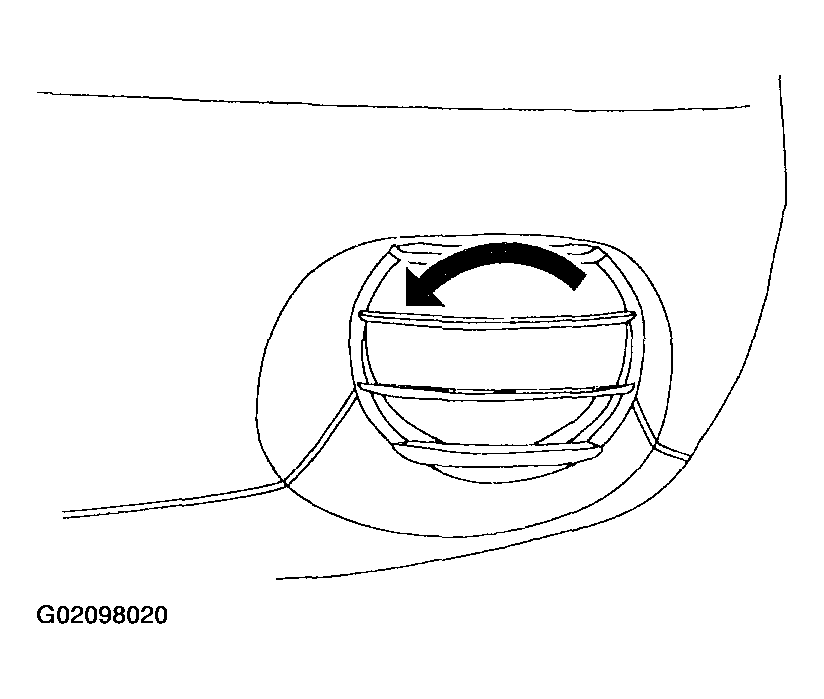

- Turn stone guard counterclockwise, and then remove it.

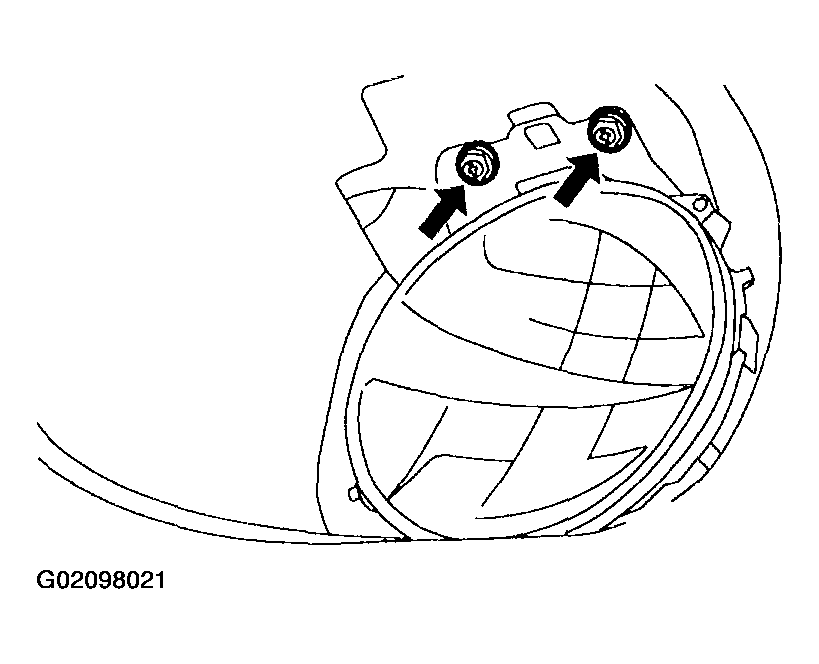

- Remove mounting bolts.

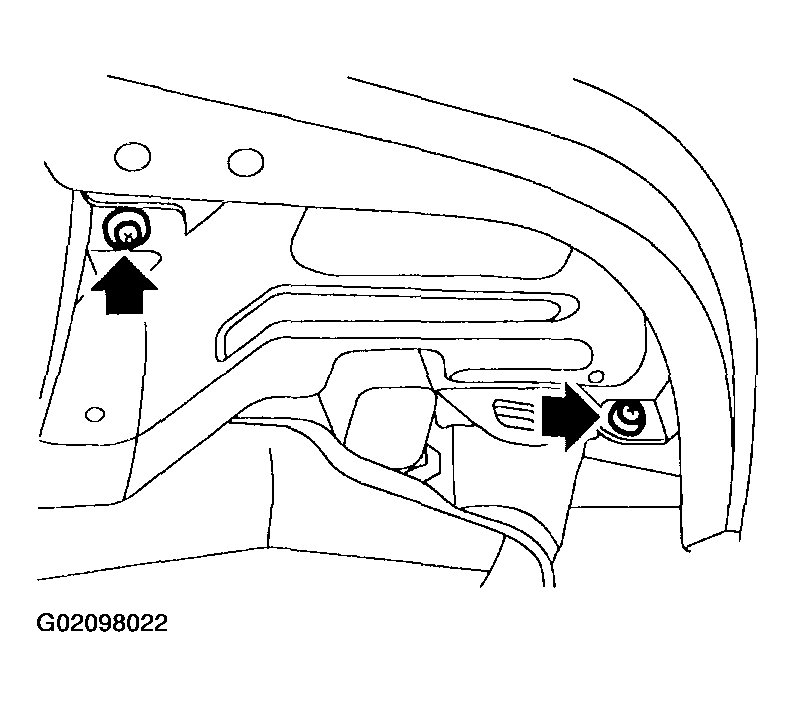

- Remove two clips and lower the mudguard.

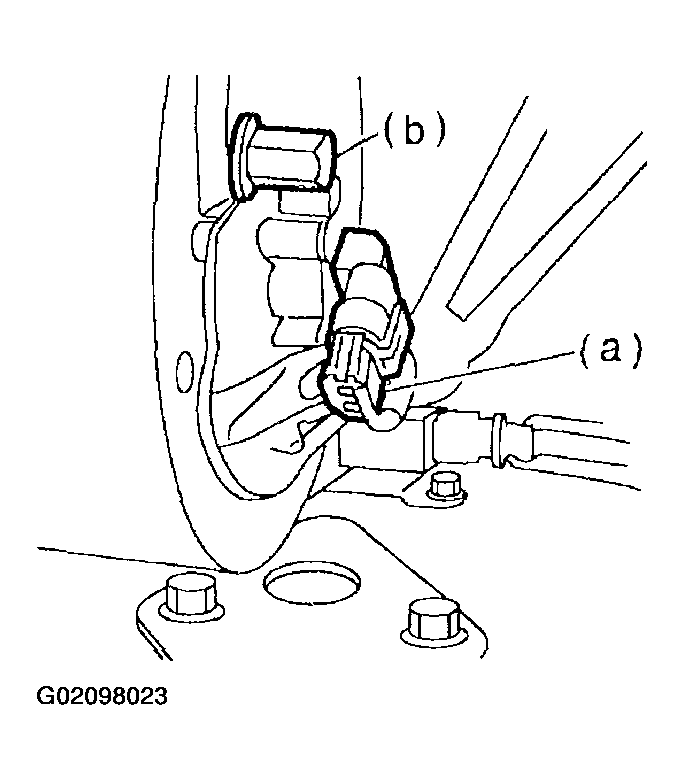

- Disconnect harness connector (a).
- Remove nut (b) then detach fog light assembly.
