2000 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Select Lever: Removal
WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Move the select lever to the "N" position.
- Remove rear exhaust pipe and muffler.

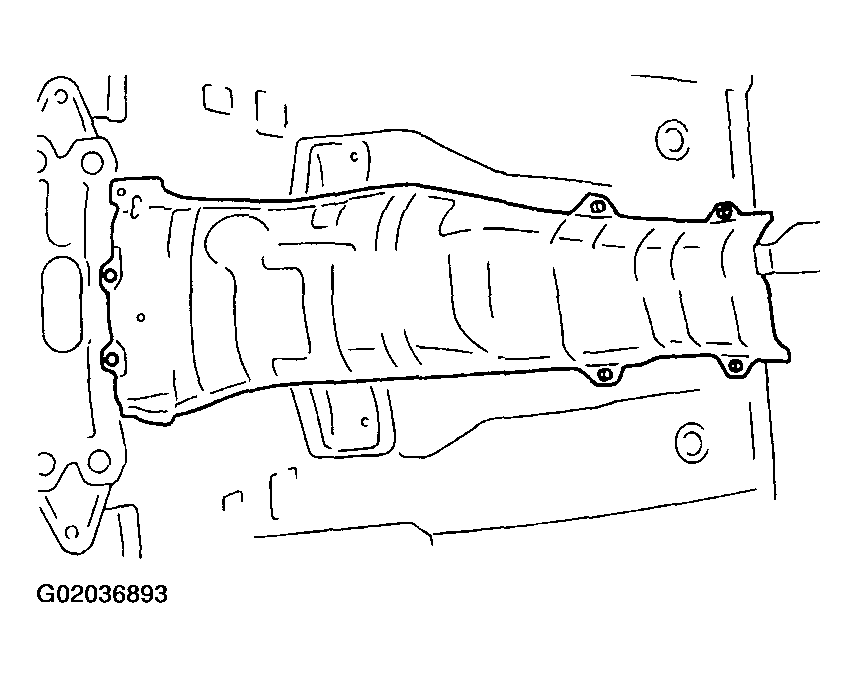

- Remove heat shield cover.

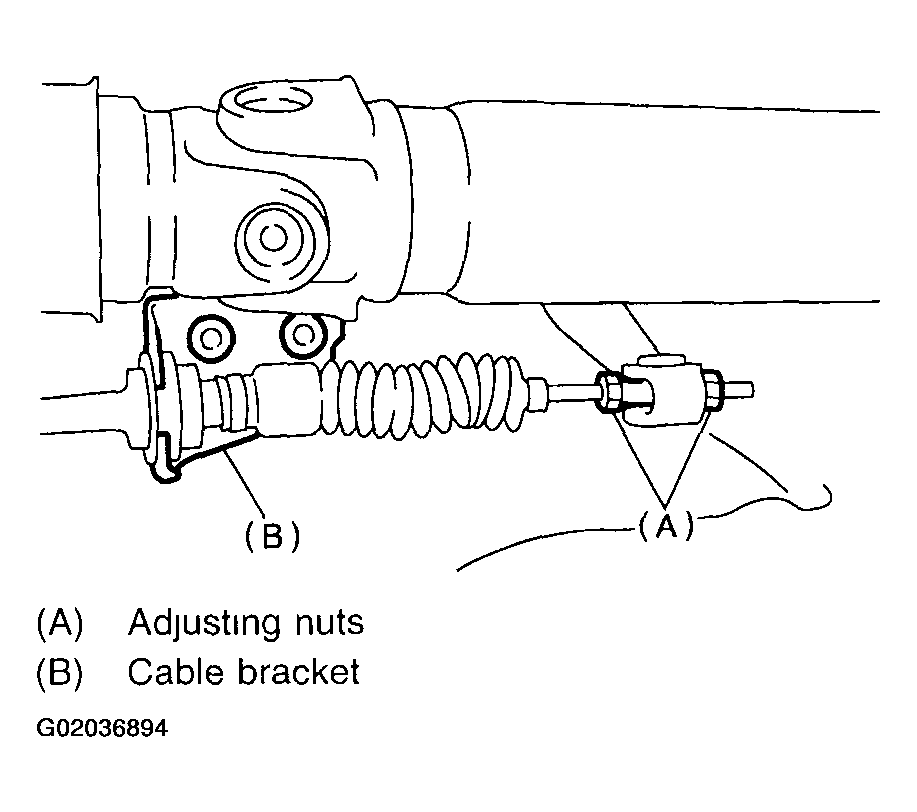

- Disconnect cable from select lever and then remove cable bracket.
- Remove console box. See REMOVAL .

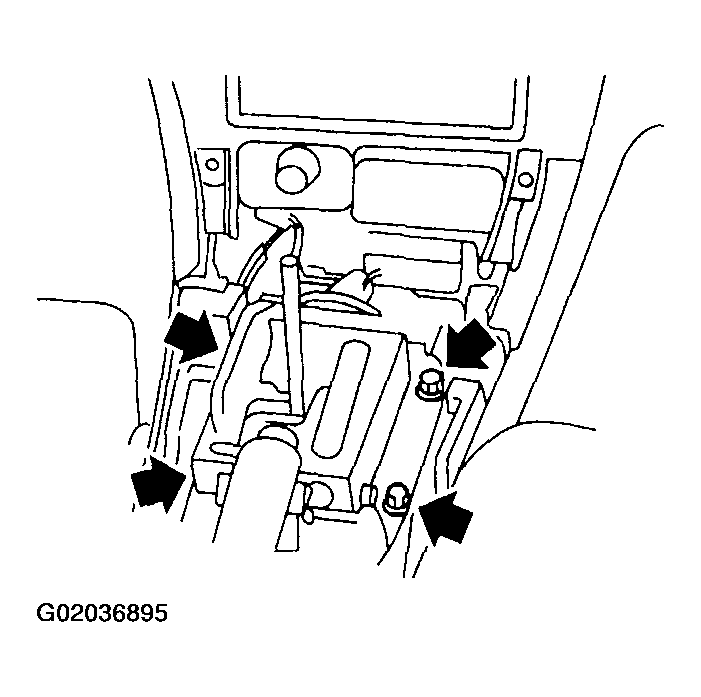

- Disconnect the connectors, then remove the four bolts to take out the selector lever assembly from the body.
