2000 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Compressor Clutch
WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Compressor clutch trouble is often caused by clutch slippage and noise. Check and take corrective measures, as required.

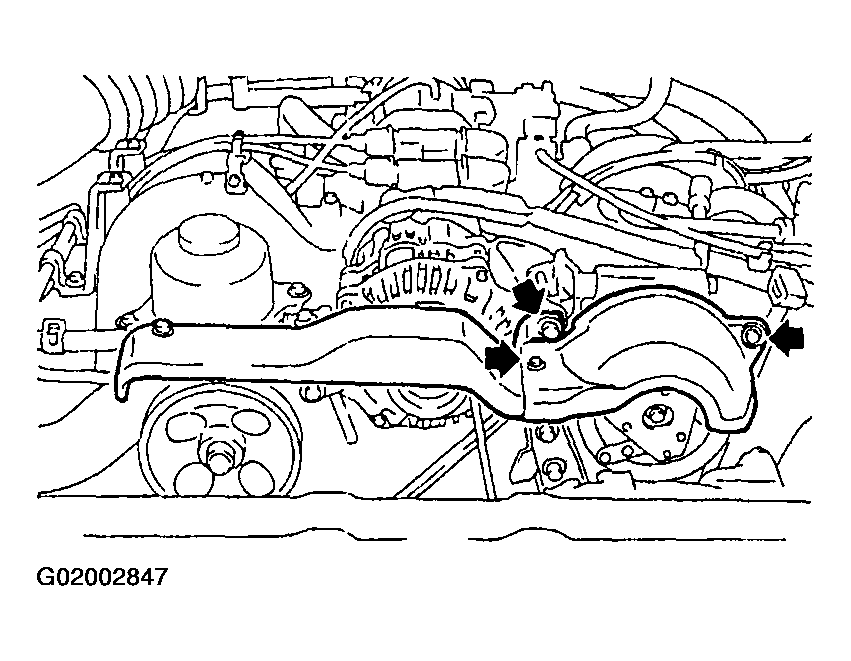

- Remove belt cover.

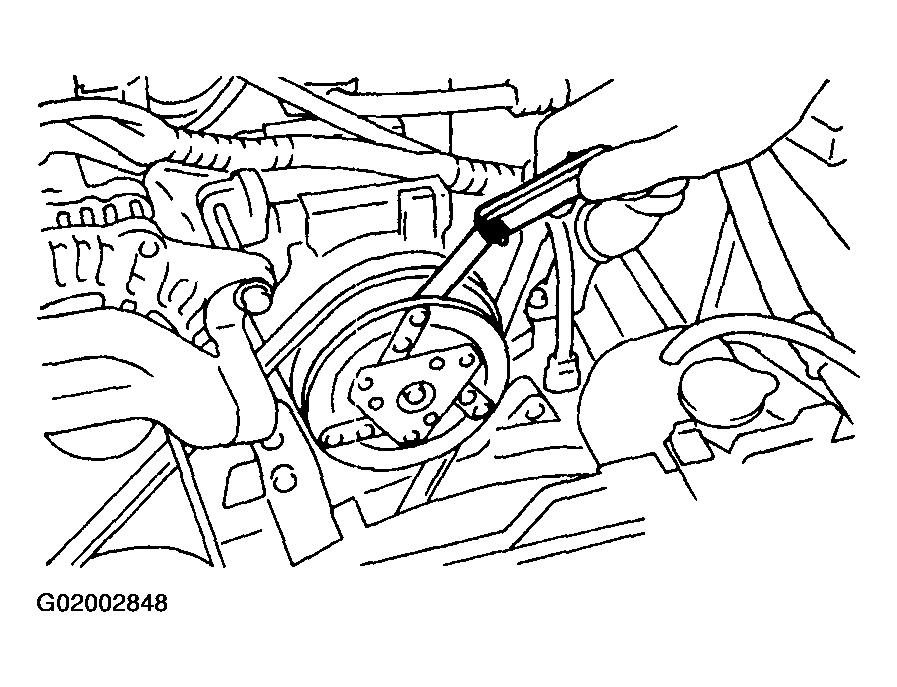

- Check the clearance between drive plate and pulley over the entire perimeter is within specifications.
Clearance: 0.45+/-0.15 mm (0.0177+/-0.0059 in)
- Check that voltage applied to magnetic coil is at least 10.5 volts.
- When noise is noted, check that it originates in either compressor or pulley bearing.
