2000 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Mirror Motor Test

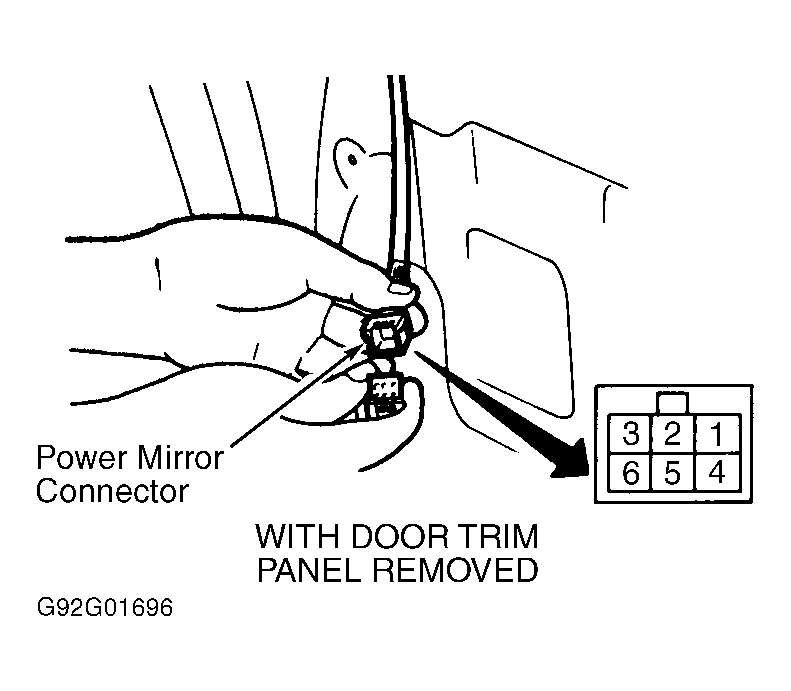

Remove door panel. Disconnect mirror motor harness connector. Using 12-volt power supply and 2 jumper wires, apply voltage and ground to specified terminal. See appropriate POWER MIRROR MOTOR TEST table. See Fig 1 .
POWER MIRROR MOTOR TEST (FORESTER)
| Application & Movement | Terminal No. (+) (Wire Color) | Terminal No. (-) (Wire Color) | |
|---|---|---|---|
| Left Mirror | |||
| Up | 1 (Red/Black) | 3 (Red) | |
| Down | 3 (Red) | 1 (Red/Black) | |
| Left | 2 (Blue/Red) | 3 (Red) | |
| Right | 3 (Red) | 2 (Blue/Red) | |
| Right Mirror | |||
| Up | 1 (Red/Blue) | 3 (Red) | |
| Down | 3 (Red) | 1 (Red/Blue) | |
| Left | 2 (Green/Red) | 3 (Red) | |
| Right | 3 (Red) | 2 (Green/Red) | |
POWER MIRROR MOTOR TEST (IMPREZA)
| Application & Movement | Terminal No. (+) (Wire Color) | Terminal No. (-) (Wire Color) | |
|---|---|---|---|
| Both Mirrors | |||
| Up | 1 (Red) | 3 (Red/Black) | |
| Down | 3 (Red/Black) | 1 (Red) | |
| Left | 1 (Red) | 2 (Blue/Red) | |
| Right | 2 (Blue/Red) | 1 (Red) | |
POWER MIRROR MOTOR TEST (LEGACY)
| Application & Movement | Terminal No. (+) (Wire Color) | Terminal No. (-) (Wire Color) | |
|---|---|---|---|
| Left Mirror | |||
| Up | 3 (Red/Blue) | 1 (Red/Yellow) | |
| Down | 1 (Red/Yellow) | 3 (Red/Blue) | |
| Left | 3 (Red/Blue) | 2 (Red/White) | |
| Right | 2 (Red/White) | 3 (Red/Blue) | |
| Right Mirror | |||
| Up | 3 (Red/White) | 1 (Blue/Green) | |
| Down | 1 (Blue/Green) | 3 (Red/White) | |
| Left | 3 (Red/White) | 2 (Blue/White) | |
| Right | 2 (Blue/White) | 3 (Red/White) | |
