Exterior/Interior Trim: Protector: Installation

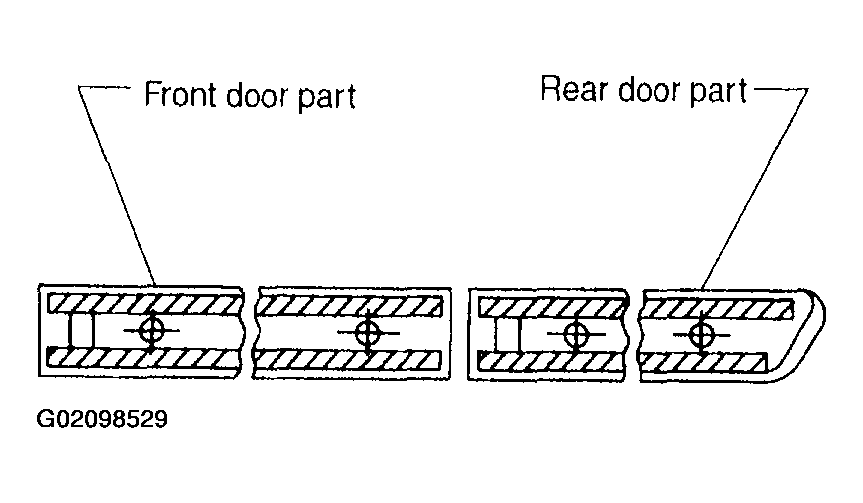

- Apply primer to original side protector (if used), and attach two-sided tape to side protectors as shown.
Two-sided tape:
- Thickness; 1.2 mm (0.047 in)
- Width; 5 mm (0.20 in)
Recommended primer:
- SUMITOMO 3MK-500 or equivalent
Recommended two-sided tape:
- SUMITOMO 3M4210 or equivalent
- Using an infrared lamp, heat body panel to 40 to 60°C (104 to 140°F) and rear surface of side protector to 20 to 30°C (68 to 86°F).
- Remove tack paper from two-sided paper. While aligning clips with holes in body panel, attach two-sided tape to side protector and body panel with a force of more than 49 N (5 kg, 11 Ib) with roller. Do not allow air to enter mating surface of the two.
- To maintain adhesive power, do not wash the vehicle for 24 hours after tape application.
- Push clip in securely using hands.
(To prevent deformation, do not use excessive force.)
