1998 Subaru Forester Base
Continuity Test
1998 Subaru Forester BaseSECTION Continuity Test

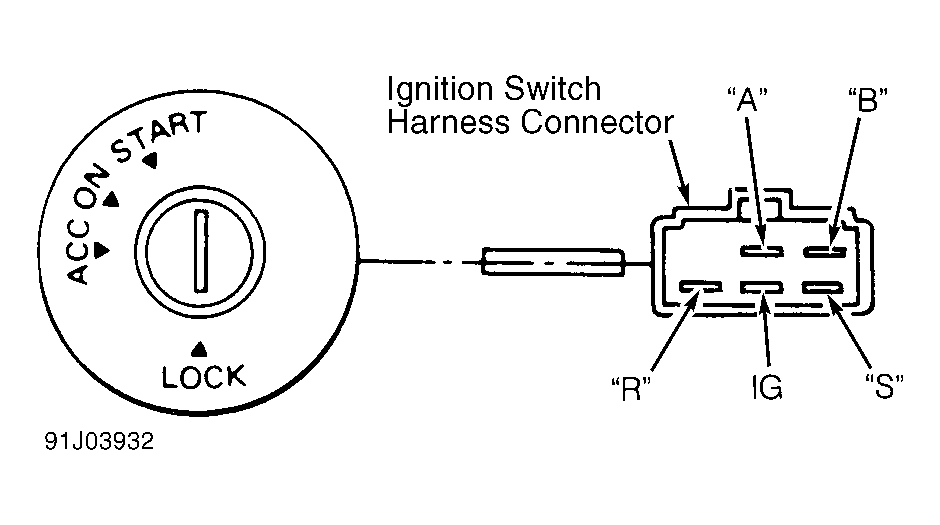

Make sure continuity is as specified in the table. Refer to the IGNITION SWITCH CONTINUITY SPECIFICATIONS (IMPREZA & LEGACY) table. See Fig 1. Repair or replace switch as necessary.
IGNITION SWITCH CONTINUITY SPECIFICATIONS (IMPREZA & LEGACY)
| Switch Position | Continuity Between Terminals |
|---|---|
| LOCK | No Continuity |
| ACC | A & B |
| ON | A, B & IG |
| START | B, IG, R & S |
